S5071 Mitsubishi 6D24 Kobelco SK300 7.5kW Starter Wholesale

S5071 7.5kW Starter Wholesale Supply for Mitsubishi 6D24 SK300

Kobelco and Mitsubishi parts channels may search S5071, 18963, STR71171, M009T60171 or ME152487. For this product, those references must remain attached to the specified 7.5kW output, Mitsubishi 6D24 engine and Kobelco SK300 application so quotations and warehouse records do not collapse it into the 5.5kW line.

The reference family and outer mounting pattern overlap a lower-output product. Purchasing should therefore identify this unit as the 7.5kW variant and compare the 11T module-3.5 drive, three-hole flange, locating face, body construction and terminals with the approved unit before ordering volume stock.

S5071 24V 7.5kW Starter Drawing for Kobelco Parts Buyers

The product definition combines 24V, 7.5kW, 11T, module 3.5 and clockwise rotation. Keeping all five values on the enquiry, quotation and receiving record prevents a shared S5071 or Mitsubishi number from becoming an unqualified substitute between different output versions.

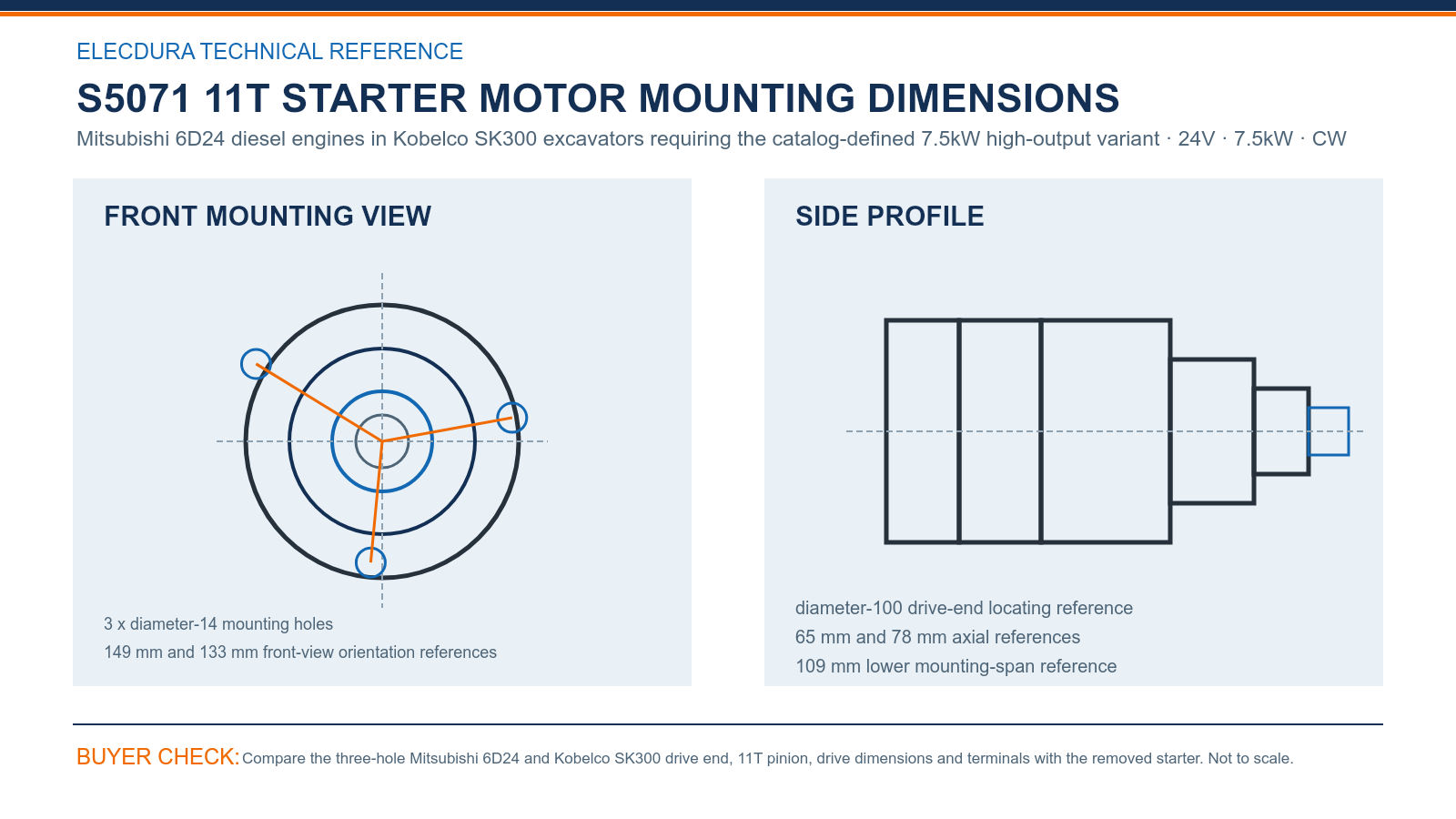

S5071 7.5kW Starter Drawing for Mitsubishi 6D24 SK300 Buyers — compare the drawing with the removed starter before placing a volume order.

The drawing provides three diameter-14 holes, a diameter-100 locating reference, 65 mm and 78 mm axial values, and 149 mm, 133 mm and 109 mm front-view references. These measurable points help a distributor compare the 7.5kW unit when only remote photographs and dimensions are available.

S5071 ME152487 High-Output Starter Matching for B2B Orders

S5071, 113746, 19081007, 18963 and STR71171 support commercial searching, while M009T60171, M009T60172, M9T60171, M9T60172, ME152487, ME152488 and ME60172 identify the Mitsubishi family. The old-unit number must be recorded together with the rated output rather than used alone.

This stock line is intended for Mitsubishi 6D24 and Kobelco SK300 requirements that call for the specified 7.5kW configuration. A branch carrying both output versions should use separate item descriptions, approved photographs and receiving labels so sales staff can identify the intended unit before dispatch.

S5071 Kobelco SK300 Starter Stock Planning and Factory Video

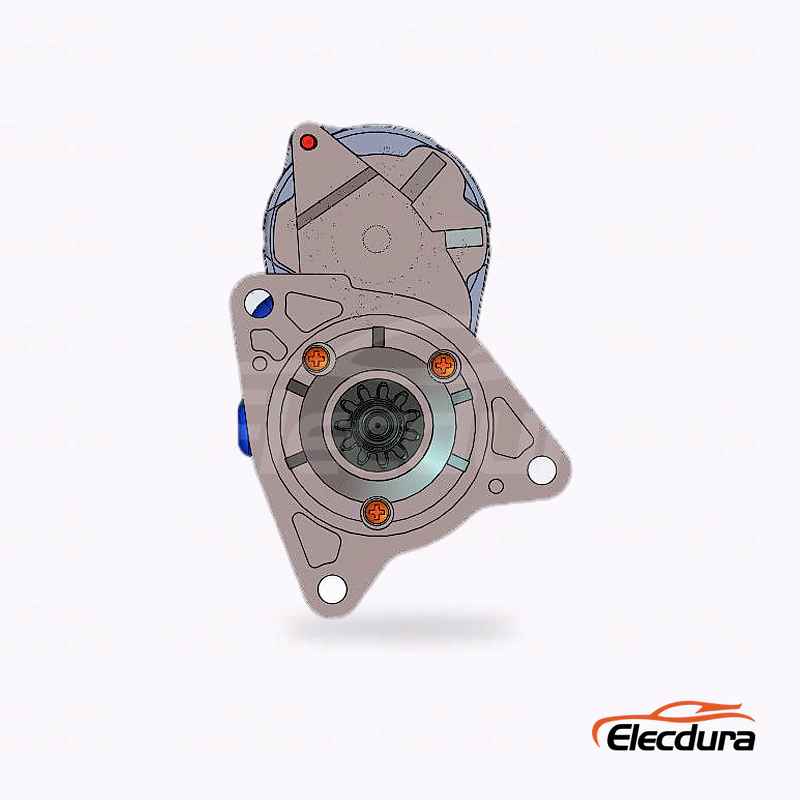

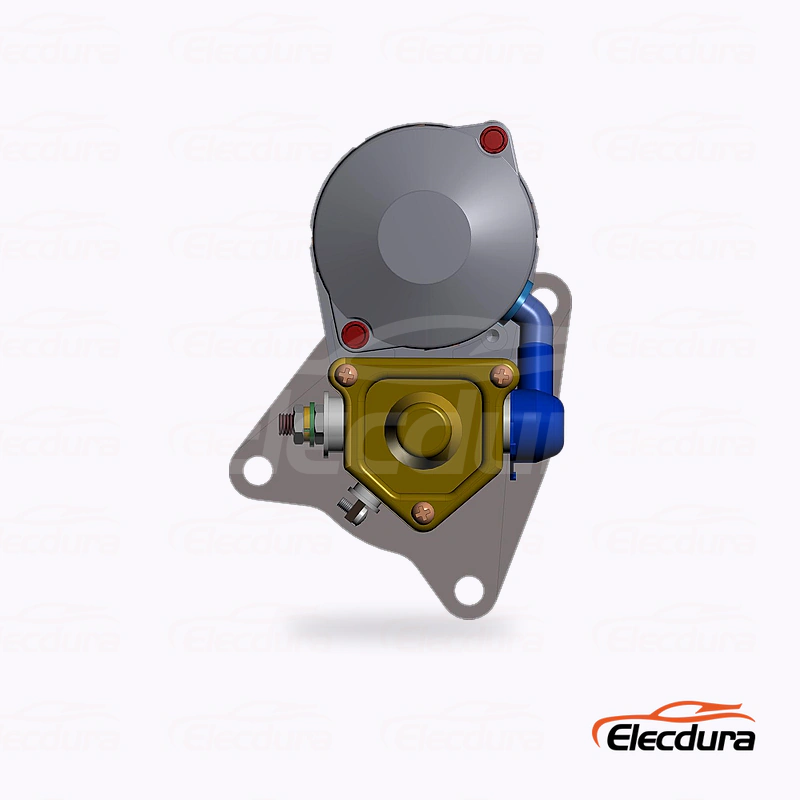

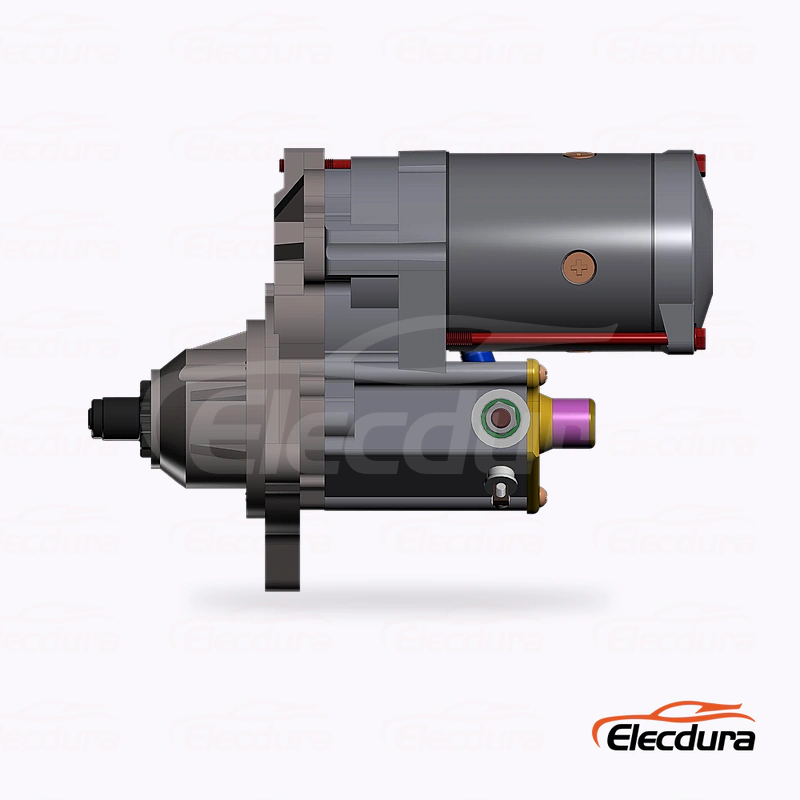

For the first lot, receiving staff can sample the 11T pinion, three mounting ears, diameter-100 locating face, solenoid orientation, protected terminals and 7.5kW identification. Retaining the accepted image set and lot record gives excavator-parts distributors a repeatable check for urgent branch replenishment.

The Elecdura video shows starter-motor assembly and electrical testing for export supply. It supports a production-capability review while the S5071 order remains tied to the 7.5kW rating, Mitsubishi 6D24 application, Kobelco SK300 record and approved physical configuration.

S5071 7.5kW Starter FAQs for Kobelco SK300 Buyers

How should a buyer identify this S5071 7.5kW starter?

Record the SK300 machine, 6D24 engine, old-unit reference and rating label. Confirm the 24V 7.5kW 11T module-3.5 CW configuration with comparable photographs. Keep the approved 7.5kW label, image set and SK300 machine record with every repeat order. Retain the 7.5kW rating, Mitsubishi 6D24 application, 11T module-3.5 drive and three-hole face in the purchasing record.

Why must the 7.5kW and 5.5kW S5071 lines stay separate?

The two products can share references and mounting geometry, so a short number alone does not show which output was approved. Separate item descriptions, rating-label photographs and receiving records prevent the 7.5kW requirement from being replaced by the related 5.5kW unit during quoting, picking or replenishment.

Can 18963, STR71171 and ME152487 support the same enquiry?

They can support the same reference discussion for this Mitsubishi family, but the enquiry must also state the required 7.5kW configuration. Add the exact number on the removed starter, the 6D24 engine and SK300 record, because cross-reference overlap does not independently confirm the output version.

Which mounting dimensions should an SK300 buyer compare?

Compare three diameter-14 holes, the diameter-100 locating reference, 65 mm and 78 mm axial values, and the 149 mm, 133 mm and 109 mm front-view references using square drive-end and side photographs. Use the 7.5kW rating, Mitsubishi 6D24 application, 11T module-3.5 drive and three-hole face on the purchase order for S5071.

How can a distributor separate both S5071 output variants in stock?

Assign a separate item record to each output, retain its accepted image set and rating label, and print 7.5kW on the receiving and shelf description. Staff should compare that record before branch transfer or dispatch instead of relying on the common S5071 or Mitsubishi reference family.

What should receiving inspect on the first 7.5kW shipment?

Sample several cartons and compare the 11T pinion, three mounting ears, locating face, solenoid orientation, protected terminals and 7.5kW identification with the approved photographs. Record the accepted lot before branch distribution. Carry the 7.5kW rating, Mitsubishi 6D24 application, 11T module-3.5 drive and three-hole face through packing and branch transfers for S5071.

What information helps review an SK300 starting complaint?

Provide battery load results, positive and ground voltage-drop readings, start-signal voltage, relay findings, installed-terminal photographs and ring-gear observations. These details separate a starter concern from battery, cable, relay or installation causes. Retain the 7.5kW rating, Mitsubishi 6D24 application, 11T module-3.5 drive and three-hole face with the S5071 delivery lot for after-sales review.

What should be sent for an S5071 7.5kW wholesale quote?

Send the SK300 and 6D24 records, old-unit reference and rating label, comparable images, quantity, annual demand, packing preference, destination and required date. Elecdura can then review the high-output configuration and prepare pricing and production timing. Include the 7.5kW rating, Mitsubishi 6D24 application, 11T module-3.5 drive and three-hole face in forecasts and repeat purchases for S5071.

Request S5071 7.5kW Starter Motor Wholesale Pricing

Email the Kobelco SK300 model and serial, Mitsubishi 6D24 engine details, readable starter references, old-unit rating label, drive-end and terminal photographs, quantity, packing request and destination to info@elecdurauto.com. Elecdura will review the S5071 7.5kW configuration and return wholesale pricing, lead time and shipping terms.
