S5071 Mitsubishi 6D24 Kobelco SK300 Starter Motor Wholesale

S5071 Mitsubishi 6D24 Starter Motor Supply for Kobelco SK300 Distributors

Kobelco SK300 parts distributors often search this unit under S5071, 113746, M009T60171 or ME152487. Connecting those references to the Mitsubishi 6D24 engine and the 24V 5.5kW 11T configuration gives counter staff and buyers a precise line for quotation, branch transfer and replenishment.

SK300 starter enquiries can involve closely related Mitsubishi engine and output variants. Keep the 6D24 engine identity, 5.5kW rating, eleven-tooth pinion, three-hole flange and terminal arrangement together; an OE number or a similar housing alone should not decide the replacement.

S5071 24V 5.5kW Starter Drawing for Excavator Parts Buyers

The required combination is 24V, 5.5kW, 11T, module 3.5 and clockwise rotation. Presenting these values as one product definition helps purchasing avoid mixing this unit with a higher-output S5071-style starter or another Mitsubishi drive that uses a different gear relationship.

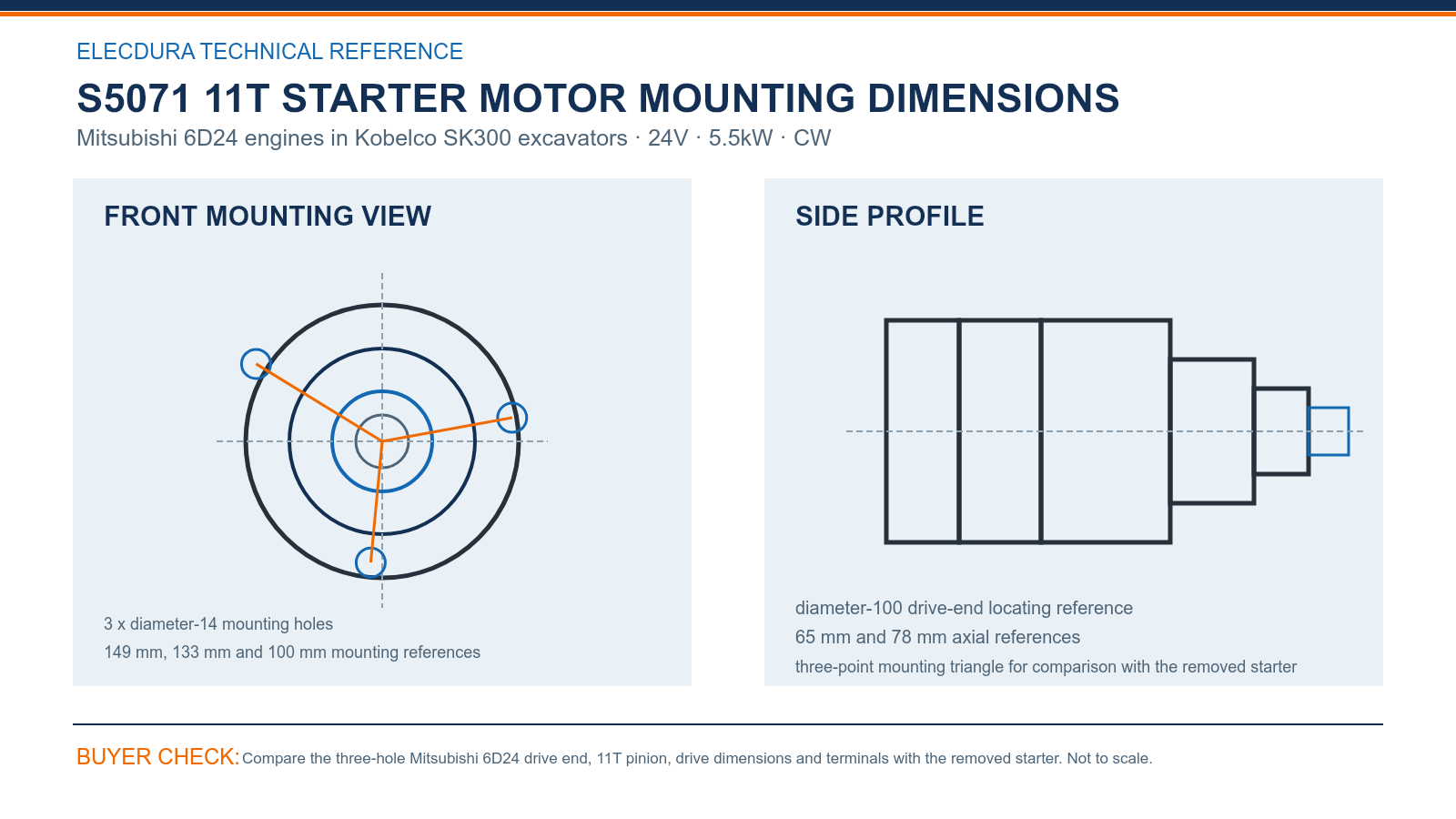

S5071 Mitsubishi 6D24 Starter Drawing for Kobelco SK300 Buyers — compare the drawing with the removed starter before placing a volume order.

Compare all three diameter-14 mounting holes and the diameter-100 locating reference before checking the 65 mm and 78 mm axial values. The 149 mm, 133 mm and 100 mm front-view references give the distributor measurable points for reviewing a remote SK300 enquiry.

S5071 ME152487 Starter Cross Reference for B2B Procurement

S5071 and 113746 are useful commercial search references, while M009T60171, M009T60172, M9T60171, M9T60172, ME152487, ME152488 and ME60172 connect the order to the Mitsubishi family. Put the exact old-unit number beside the 6D24 engine and rated output on each purchase-order line.

This product is defined for Mitsubishi 6D24 power in Kobelco SK300 excavators. A branch serving SK300, SK400 and other Kobelco machines should retain the individual machine model and serial with each customer record instead of extending one accepted match across the fleet.

S5071 Kobelco SK300 Starter Stock Planning and Factory Video

For downtime stock, the first receiving check should cover the 11T pinion, three mounting ears, drive-nose condition, solenoid position, terminal protection and 24V 5.5kW identification. An approved image set and incoming lot record help branches dispatch urgent replacements with the agreed product identity intact.

The Elecdura video shows starter-motor assembly and electrical testing for export supply. Kobelco distributors can use it to assess production capability while the S5071 purchase remains tied to the 6D24 application, 5.5kW rating, eleven-tooth drive and measured mounting face.

S5071 Starter Motor FAQs for Kobelco SK300 Parts Buyers

How can a buyer identify the S5071 unit for an SK300?

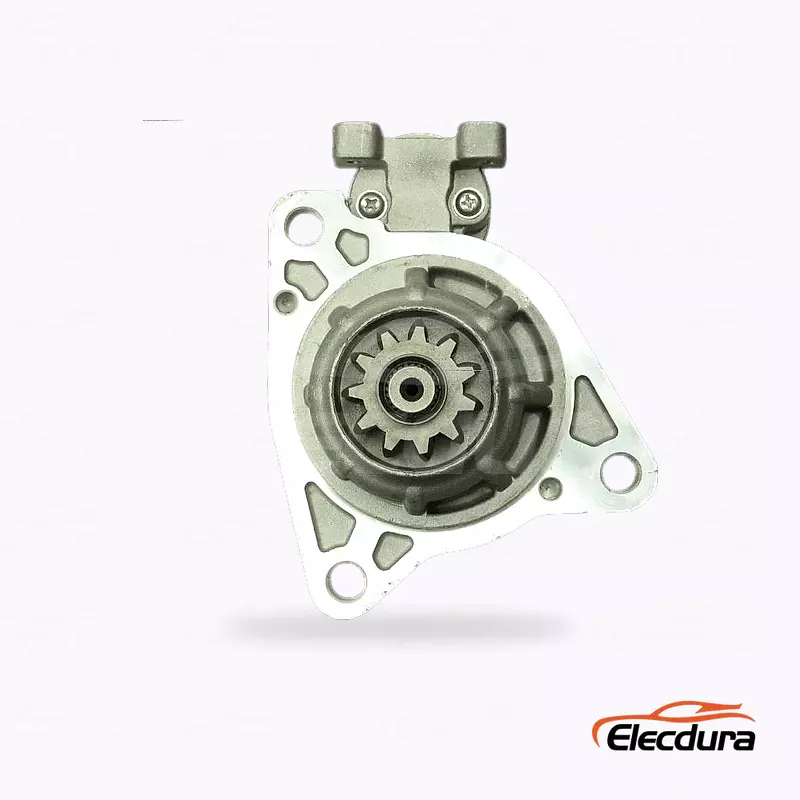

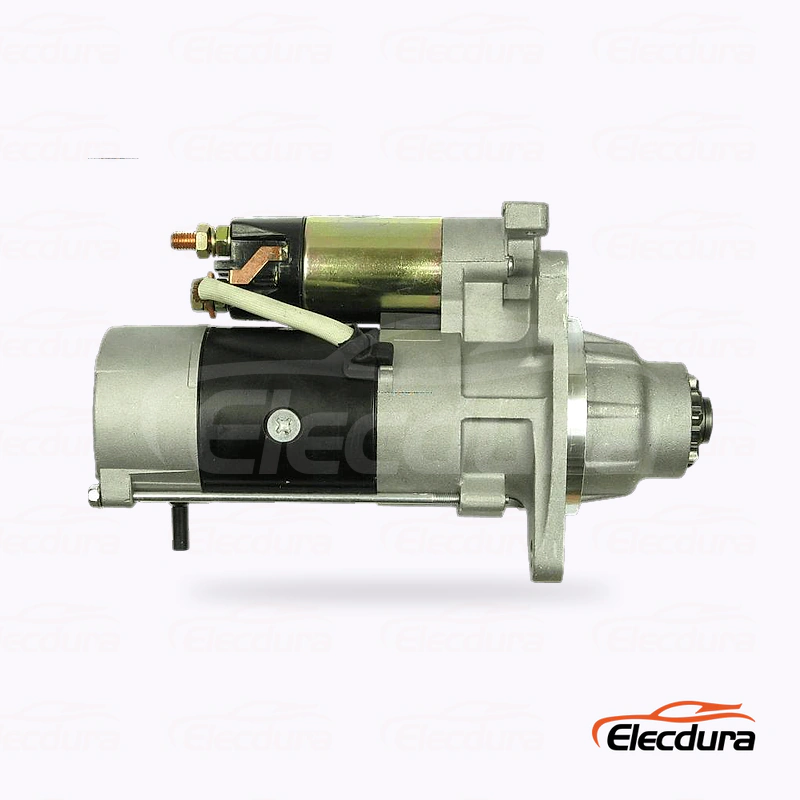

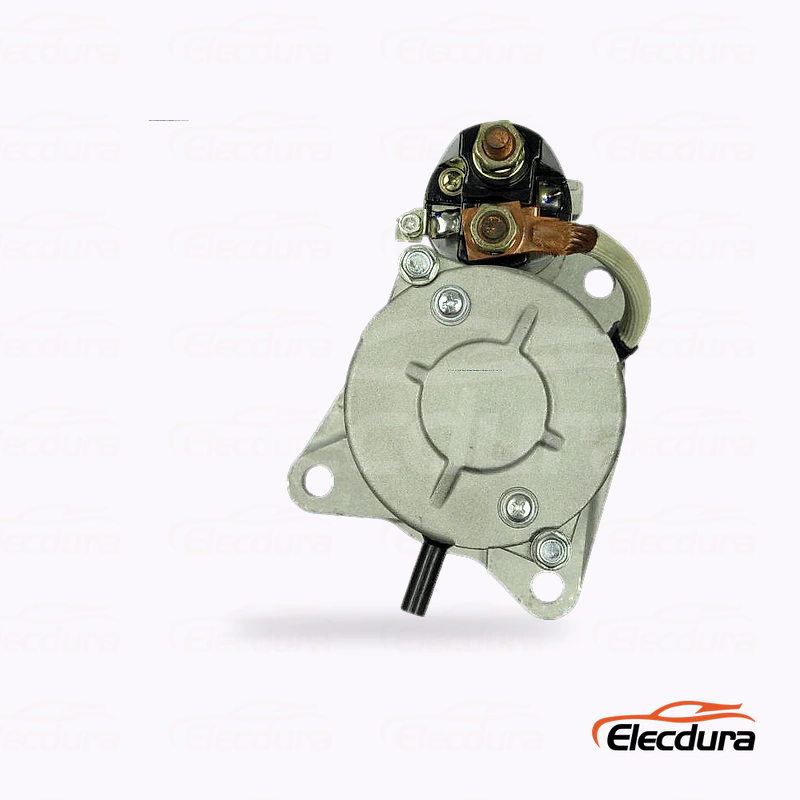

Begin with the Kobelco SK300 model and serial, then confirm the Mitsubishi 6D24 engine plate and every readable starter number. Compare the 24V 5.5kW 11T rating with square drive-end, side and terminal photographs. These details define the product more reliably than an SK300 description by itself.

Do ME152487 and M009T60171 belong on the same enquiry?

They can appear in the same replacement discussion for this product family. Use S5071 or 113746 as the commercial reference, then add the exact Mitsubishi number found on the removed starter. The purchasing record should also retain the 6D24 engine, 5.5kW output and accepted flange image.

Can a 7.5kW S5071-style starter replace this 5.5kW unit?

Do not treat the higher-output unit as an automatic substitute. This product is defined as 24V 5.5kW with an 11T module-3.5 drive and clockwise rotation. Confirm the old-unit rating, mounting dimensions, pinion and terminals before choosing between two starters that may share references or a similar outline.

Which drawing values should be checked on the S5071 flange?

Check the three diameter-14 mounting holes, diameter-100 locating reference, and the 65 mm and 78 mm axial values. Then compare the 149 mm, 133 mm and 100 mm front-view references. A straight flange photograph and one side view let the distributor review both mounting pattern and drive depth.

What should a Kobelco branch keep with an approved S5071 match?

Store the SK300 model and serial, 6D24 engine record, old-unit reference, rated output and accepted front, side and terminal images with the item. When the customer returns for another unit, these records show exactly which 5.5kW configuration was supplied and reduce reliance on memory or a short code.

How should receiving inspect S5071 downtime stock?

Sample units from different cartons and compare the 11T pinion, three mounting ears, locating face, solenoid orientation and protected terminals with the approved images. Check the drive nose and studs for impact or moisture damage. Record the accepted lot before units are distributed to service branches.

What evidence helps evaluate an SK300 no-crank complaint?

Provide a 24V battery-bank load test, voltage-drop readings on positive and ground cables during cranking, start-signal voltage and relay findings. Add ring-gear observations and photographs of the installed terminals. This evidence helps separate a starter concern from cable, battery, relay or installation faults during after-sales review.

What information is required for an S5071 wholesale quotation?

Send the SK300 machine and 6D24 engine records, exact removed-starter number, three comparable photographs, order quantity, annual demand, packaging request, destination and required date. State whether the units support breakdown stock or scheduled replenishment so Elecdura can return suitable pricing, production timing and shipping terms.

Request S5071 Mitsubishi 6D24 Starter Motor Wholesale Pricing

Email the Kobelco SK300 model and serial, Mitsubishi 6D24 engine details, readable starter numbers, drive-end and terminal photographs, required quantity, packing preference and destination to info@elecdurauto.com. Elecdura will review the S5071 5.5kW configuration and return wholesale pricing, lead time and shipping terms.
