S5085 Mitsubishi 4M51 5.0kW Starter Motor Wholesale

S5085 Mitsubishi 4M51 Starter Wholesale for Engine Distributors

Mitsubishi 4M51 demand reaches the market through truck, forklift and engine-service channels, so an engine name by itself is not enough for purchasing. An effective enquiry connects S5085 with the 4M51 or 4M50T record, the 11T drive and clear views of the existing starter.

The wider M8T85271 family appears in several commercial configurations. This product is offered as the 5.0kW version, and the quotation should preserve that rating together with the three-hole mounting form instead of blending different output and housing variants into one stock line.

S5085 5.0kW 11T Starter Specifications and Technical Drawing

The combined 24V, 5.0kW, 11T, module-3 and clockwise data describes the electrical and gear requirements of this offer. Keeping the full set on quotations and receiving sheets reduces the chance that a visually close 3.7kW or 4.5kW unit is treated as the same stock.

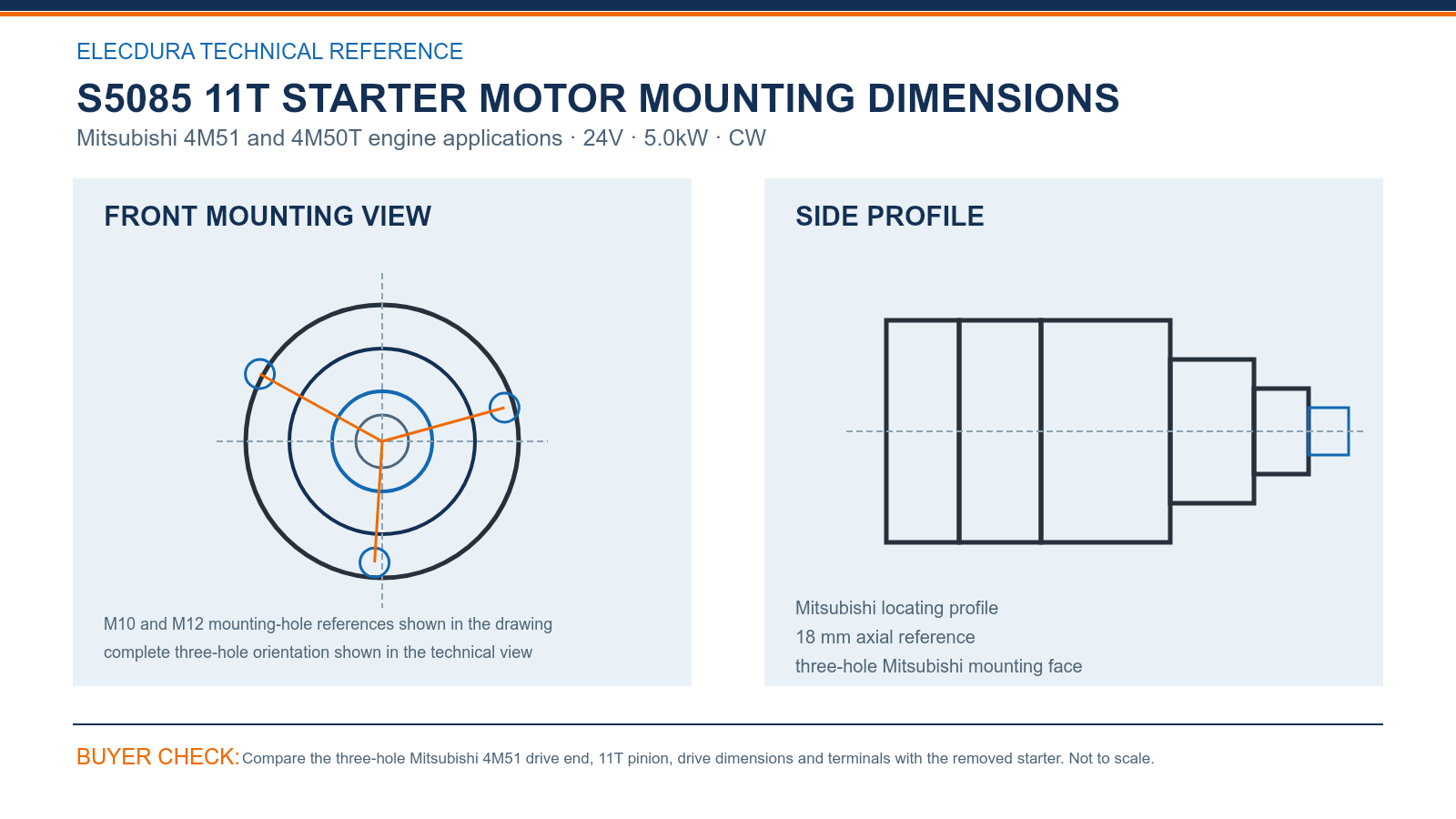

S5085 Mitsubishi 4M51 Starter Drawing for Engine Parts Buyers — compare the drawing with the removed starter before placing a volume order.

Use the technical view to identify the three mounting positions, M10 and M12 hole references and 18 mm axial dimension. The removed starter should be photographed square to the flange and from the terminal side so housing orientation and cable access remain visible.

S5085 Mitsubishi OE Cross Reference for Commercial Buyers

M008T85271, M008T85271B, M8T85271, M8T85271B, ME240241, ME240251, ME241359, ME241622 and STR71222 support the S5085 search. They are useful for procurement discovery, while the confirmed engine and physical version remain central to the actual order.

A distributor serving both 4M51 and 4M50T customers can keep separate application notes even when the supplied starter is shared. This makes later warranty, branch transfer and replenishment discussions traceable to the engine that established the original match.

S5085 Starter Motor Volume Supply for Service Networks

Volume planning can cover trial quantity, regular replenishment, neutral cartons, customer branding review and export protection. Incoming inspection may sample the 11T pinion, mounting face, solenoid orientation, terminals and visible marking before the balance of the shipment enters saleable stock.

Elecdura’s production video shows starter assembly and electrical testing for B2B supply. Mitsubishi parts buyers can use it to discuss inspection expectations and order cadence, with S5085, the 5.0kW rating and the recorded engine application kept consistent throughout the transaction.

S5085 Starter FAQs for Mitsubishi 4M51 Parts Buyers

How should buyers identify a 4M51 or 4M50T S5085 requirement?

Start with the complete engine model and serial, then add the vehicle or equipment record and the starter label. Straight images of the three-hole flange, pinion and terminals show which physical version is installed. This package is more useful to a supplier than an enquiry that says only Mitsubishi 4M51.

Why is the 5.0kW rating important on this S5085 offer?

The wider M8T85271 market includes more than one advertised output, so the rating must stay visible from quotation through receiving. This product is offered as 24V 5.0kW. Combining that value with 11T, module 3 and the three-hole face keeps the commercial item clear for both purchasing and warehouse teams.

How can a service branch confirm the 11T drive before ordering?

Clean the old pinion, count all eleven teeth and photograph it squarely beside the product label. Check for damaged or missing teeth before using the image. The count should agree with the 24V 5.0kW S5085 record and the module-3 drive description on the supplier quotation.

Which mounting details belong in the S5085 comparison?

Show the complete three-hole face and record the M10 and M12 references visible in the technical drawing, together with the 18 mm axial value. Include a side view of the solenoid and terminals. These details help separate physical variants that share Mitsubishi references and similar electrical ratings.

Can ME240241 and ME241622 support an S5085 search?

Yes. ME240241, ME240251, ME241359 and ME241622 are useful Mitsubishi lookup routes, alongside M008T85271 and M8T85271B. The search result should still be narrowed with the engine record, 5.0kW rating, 11T drive and the photographed mounting face before a volume purchase is placed. This preserves the selected engine-specific 5.0kW version.

What should appear on a Mitsubishi service-network bin label?

A practical label can show S5085, 24V 5.0kW, 11T and the confirmed 4M51 or 4M50T route. Keep the complete cross-reference list and flange photographs in the digital stock record. This gives counter staff a quick identifier without turning a short shelf label into the only fitment source.

How should the first S5085 delivery be checked at receiving?

Open samples from more than one carton and inspect the marking, pinion count, three mounting positions, solenoid orientation and terminal condition. Compare them with the accepted images and purchase specification. If private-label packaging is used, confirm that the product identity remains traceable inside the carton.

What should importers include when requesting S5085 supply terms?

Provide the Mitsubishi engine and vehicle or equipment details, old-unit references, flange and terminal photographs, quantity, forecast, required date, packing format and port or destination. These inputs allow Elecdura to price the correct 5.0kW version and discuss sample, replenishment or consolidated-shipment options with fewer follow-up questions.

Request S5085 Mitsubishi 4M51 Starter Wholesale Terms

Send the Mitsubishi engine model, equipment or vehicle details, complete old-starter references, flange and terminal images, required quantity, packaging preference and destination to info@elecdurauto.com. Elecdura will review the S5085 configuration and provide wholesale terms with an achievable delivery schedule.
