STN7109 Hino EC100 Starter Motor Wholesale Supply

STN7109 Hino EC100 Starter Motor Sourcing for Truck Parts Importers

Legacy Hino enquiries may arrive with an EC100 vehicle name and an aged starter whose plate can no longer be read. In that situation, a useful STN7109 request is built from the vehicle details and the unusually large three-point face rather than a guessed cross-reference.

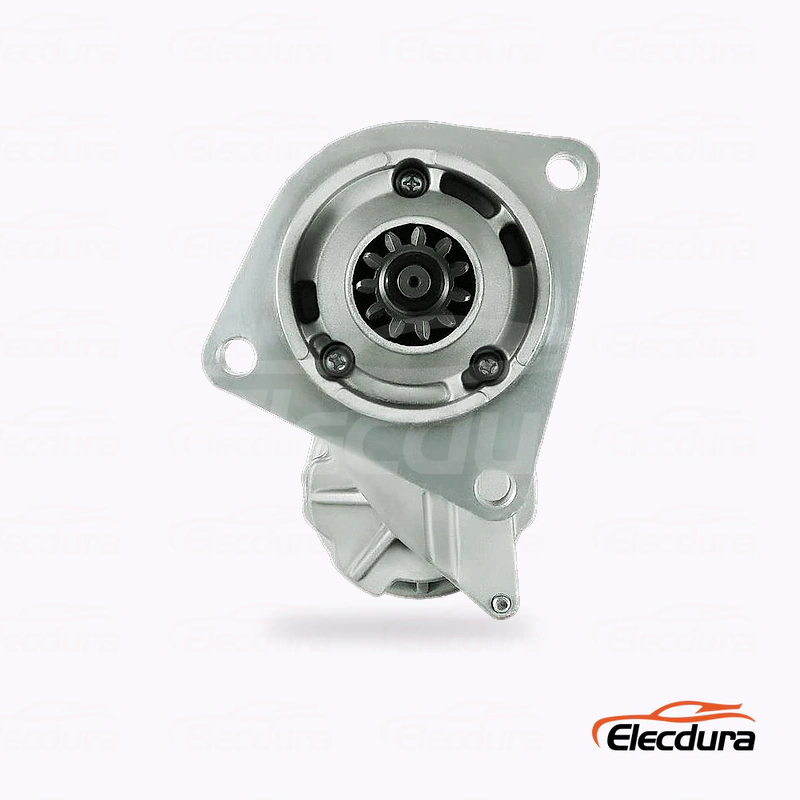

Photograph the installed cable positions before removal, then add a square view of the flange and a close image of the 11T pinion. Elecdura can compare the 140 mm circle, 100 mm engagement reference and 27 mm drive position before providing price, MOQ and export timing.

STN7109 Starter Motor Face Measurements for Legacy Hino Repairs

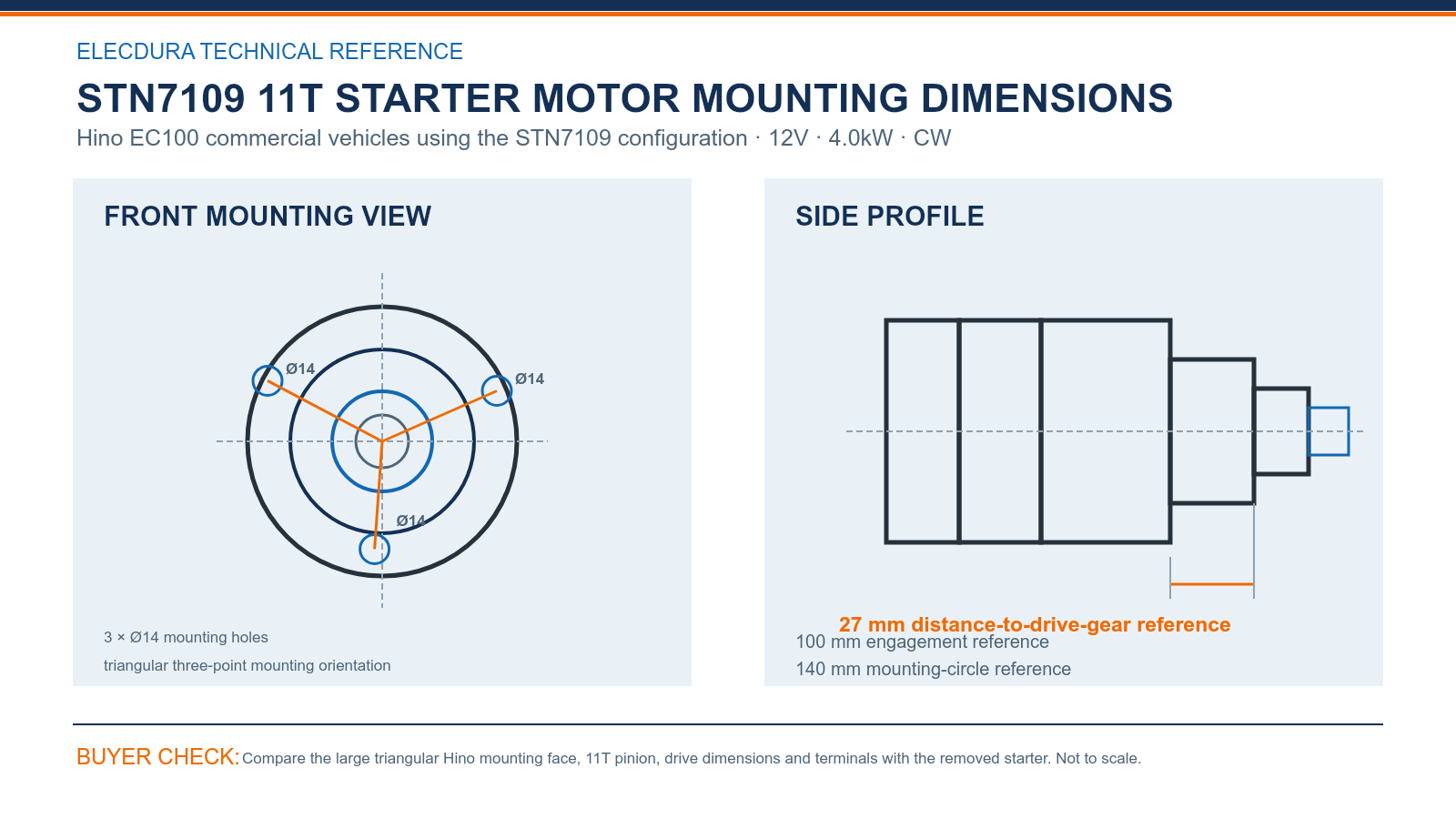

STN7109 Hino 12V 4.0kW 11T starter mounting dimensions for buyer-side comparison.

The face uses three Ø14 mounting holes around a 140 mm mounting-circle reference. The 100 mm engagement reference is paired with a 27 mm distance-to-drive-gear reference, creating a measurable profile for the large Hino drive end.

For STN7109, retain 11T, module 3 and CW together with the 12V, 4.0kW electrical rating. When the plate is missing, record those values from reliable service information and compare the physical flange, pinion and terminal side directly with the drawing.

STN7109 Starter Motor Identification When the Old Label Is Unclear

STN7109 is the number buyers should send with an EC100 starter enquiry. Because no broader cross-reference group is being published, strengthen the request with vehicle information and complete photographs instead of adding unverified numbers.

A worn label does not prevent a useful quotation when the 140 mm face, 100 mm engagement reference, 11T pinion and terminal layout can be documented clearly.

STN7109 Starter Motor Import Supply for Regional Hino Service

Regional Hino specialists often support vehicles that remain in service long after standard parts catalogues become difficult to use. An initial STN7109 quantity can be planned around the active EC100 population, workshop demand and shipping interval rather than a generic truck-starter forecast.

Strong carton support around the drive end matters for this large-face unit. At receiving, inspect three Ø14 holes, the pinion, solenoid side and packaging condition, then retain a label photograph with the shipment lot. These details improve both branch allocation and any later transit-damage review.

The video introduces Elecdura starter-motor assembly and electrical testing. STN7109 selection for an EC100 still depends on the vehicle details, measured 140 mm face, 11T drive, terminal photographs and the commercial requirements supplied with the enquiry.

STN7109 Starter Motor Questions from B2B Buyers

Can STN7109 be quoted when the original Hino label cannot be read?

Yes, provided the enquiry replaces the missing label with useful vehicle and hardware information. Send the Hino EC100 details, photographs of the full starter, a square flange view, pinion close-up and terminal layout. Measurements from the 140 mm mounting circle and 100 mm engagement reference give Elecdura a stronger identification basis.

Why is the mounting face central to an STN7109 comparison?

The large triangular face is more distinctive than the general cylindrical body. Three Ø14 holes, a 140 mm mounting-circle reference and the 100 mm engagement measurement describe where the starter seats and reaches the drive. Comparing those points helps an importer avoid selecting from appearance alone when identification plates are damaged.

What should be recorded before disconnecting an EC100 starter?

Take a wide installation photograph and close views of each cable and terminal before any lead is removed. Note protective boots and cable direction. After removal, add the face and pinion images. This record supports both product matching and correct workshop reinstallation, especially when the old wiring has been repaired previously.

How can an importer verify the drive specification for STN7109?

Count all 11 pinion teeth and compare the 27 mm distance-to-drive-gear reference with the removed unit. Confirm module 3 and CW rotation with the 12V, 4.0kW configuration. If the existing hardware differs, send the photographs and measurements for review rather than forcing it into the STN7109 request.

What is a reasonable first-order approach for a legacy Hino item?

Estimate the active EC100 population served, recent starter demand and the time required to replenish the region. A focused opening quantity can cover identified workshop needs while preserving cash for other slow-moving lines. State the target delivery date so Elecdura can pair the quantity with realistic production and shipping choices.

How should STN7109 be packed for an export shipment?

The drive end and solenoid should be supported so weight is not carried by vulnerable terminals or the pinion. Discuss neutral cartons, customer labels and pallet layout when requesting the quote. At arrival, inspect packaging from several pallet positions before releasing the full shipment to regional branches or workshop stock.

Which workshop checks should precede installation on an Hino EC100?

Inspect the ring gear, clean the mounting surface and check battery condition plus cable voltage drop. Let the locating surfaces seat without using bolts to pull the starter into place. After connection, verify cable clearance and cranking behaviour. These steps protect the installation and also create useful evidence if a fault remains.

What information should accompany an STN7109 after-sales question?

Provide the shipment lot, installation date, EC100 vehicle identity, supplied-unit label and the symptom observed. Add battery and cable test results plus photographs of the flange, terminals and pinion. That package lets Elecdura examine fitment, electrical supply, transit condition and product performance without relying on a vague statement that the starter failed.

Request STN7109 Hino EC100 Starter Motor Export Pricing

Send STN7109, Hino EC100 vehicle details, the old unit from all sides, flange and pinion measurements, terminal photographs, quantity, destination and required date. Elecdura will review the 12V, 4.0kW, 11T CW configuration and return applicable B2B pricing.

If the original plate is unreadable, include a ruler in the face and drive-end photographs. Export packing, MOQ, lead time, warranty and shipment basis can then be addressed with the product match.
