TM000A29001 Bobcat V2203T Starter Motor Distributor

TM000A29001 Bobcat V2203T Starter Distributor Value

Compact equipment often moves between jobsites and rental branches, so starter availability affects utilization and transport schedules. A useful enquiry states the Bobcat model, serial range, V2203T-EB engine and number of machines supported.

TM000A29001 is associated with Bobcat 6676958, but nearby Bobcat starters can use an 11T pinion or another power rating. Confirm ten teeth, the three-hole face and terminal position before choosing from a general skid-steer listing.

TM000A29001 10T Starter Dimensions for Equipment Buyers

TM000A29001 is specified at 12V, 3.0kW, 10T, module 3.175 and clockwise rotation. Keeping the complete set together helps purchasing distinguish this product from the 2.7kW 11T units commonly found in adjacent Bobcat references.

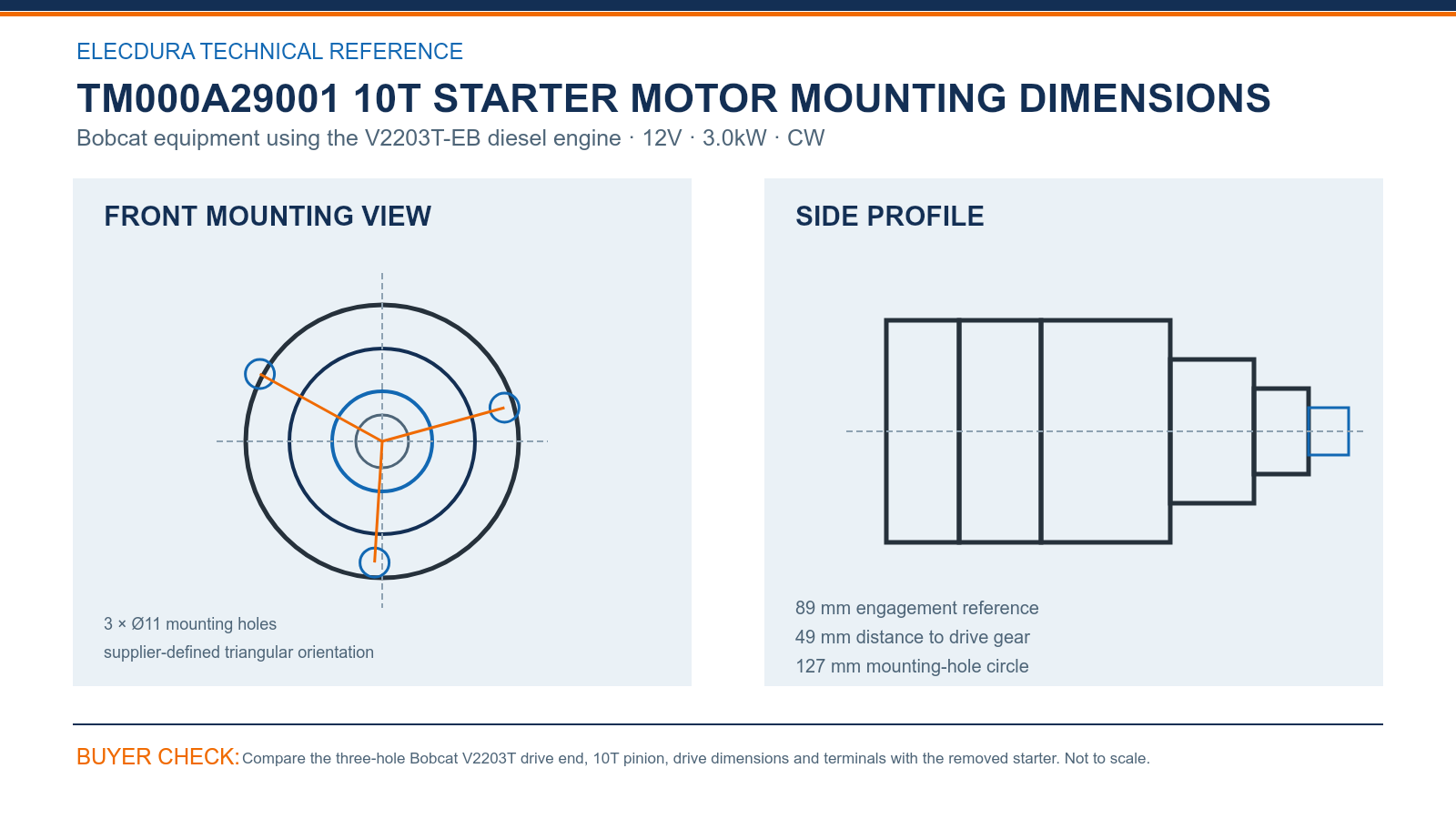

TM000A29001 Bobcat V2203T Starter Drawing for Equipment Buyers — compare the drawing with the removed starter before placing a volume order.

Compare the 89 mm engagement reference, 49 mm drive distance, three Ø11 holes and 127 mm mounting circle. The removed starter should be photographed after cleaning the flange so dirt does not obscure the ear shape.

TM000A29001 Bobcat Reference Matching for Rental Fleets

TM000A29001, 600155, 6676958, 6685191 and 18485N form the practical procurement group. Add the machine serial and engine plate because reference agreement does not establish every Bobcat model or prior engine conversion.

Rental fleets can base reserve quantity on machine count, utilization and distance between branches. Keep confirmed serial groups with the stock item; unfamiliar machines should receive a fresh reference and flange review before a unit is dispatched.

TM000A29001 Starter Fleet Supply and Electrical Testing

Incoming inspection should count ten teeth, check all three mounting holes, protect the terminals and review carton strength for branch transport. Photograph accepted units so service staff can compare later deliveries from the field.

Elecdura’s video presents starter production and electrical testing for wholesale programs. Bobcat distributors can evaluate capability while defining serial-group labels, sample checks, rental-branch packaging and replenishment schedules.

TM000A29001 Starter FAQs for Bobcat Equipment Buyers

Which Bobcat machine details should accompany TM000A29001?

Send the Bobcat model, machine serial range, year and V2203T-EB engine plate, along with every number on the removed starter. Include square photographs of the three-hole face, ten-tooth pinion, side profile and terminals. Machine serial information is especially useful when a rental fleet contains several Bobcat generations or previous engine replacements.

How does TM000A29001 differ from nearby Bobcat starter groups?

TM000A29001 is defined here as 12V 3.0kW with a 10T module-3.175 drive and clockwise rotation. Nearby Bobcat groups may use 2.7kW or an 11T pinion. The three Ø11-hole face, V2203T-EB engine record and terminal layout should therefore remain attached to this primary number during purchasing.

Why must 10T and module 3.175 be verified together?

Ten teeth identify the pinion count, while module 3.175 defines tooth size and pitch. Both must agree with the ring gear; matching one value does not confirm the gear interface. Keep the pair beside the 12V 3.0kW rating and clockwise rotation so a nearby 11T Bobcat starter is not selected by appearance.

What should equipment buyers compare on the mounting drawing?

Compare three Ø11 holes on the 127 mm mounting circle, the 89 mm engagement reference and the 49 mm distance to the drive gear. Check the triangular ear orientation, locating shoulder, nose profile and terminal side against straight photographs. Dirt should be removed from the old flange before measurements are taken.

How can rental fleets plan TM000A29001 reserve stock?

Plan stock from the number of Bobcat machines by model and serial range, utilization hours, recent failures, jobsite distance and the cost of moving a disabled loader. Rental businesses may place one unit near high-use branches and keep additional central reserve. Include replenishment time and scheduled seasonal projects when setting quantity.

Which photographs can a field technician send for matching?

A field technician should send the machine and engine plates, every readable starter marking, and a square view of the mounting face. Add close photographs of the pinion, locating shoulder, nose length, solenoid and cable terminals, plus an installed view showing clearance. A ruler beside key features helps when formal measurements are unavailable.

What should branches inspect when a Bobcat starter shipment arrives?

Branches should confirm the TM000A29001 label, 12V 3.0kW rating, ten-tooth pinion and three Ø11-hole face on sampled cartons. Inspect mounting ears, nose housing, solenoid studs, terminal covers and packing support for damage. Record the shipment lot and photographs before the starters are moved into rental-service or reseller inventory.

What information completes a TM000A29001 distributor enquiry?

Provide the Bobcat model and serial range, V2203T-EB engine details, all TM000A29001 or 6676958 markings, and clear mounting, pinion and terminal photographs. Include order quantity, supported machine population, packaging or label needs, destination and required date. Elecdura can then review the 10T three-hole version and prepare distributor pricing.

Request TM000A29001 Bobcat V2203T Distributor Pricing

Send the Bobcat model and serial, V2203T-EB engine plate, complete starter references, front, pinion and terminal photographs, quantity by branch and destination to info@elecdurauto.com. Elecdura will review TM000A29001 and return distributor pricing and lead time.
