1811004211 Isuzu 6WG1 Starter Motor Wholesale

1811004211 Isuzu 6WG1 Starter Motor Wholesale for Equipment Fleets

An 1811004211 enquiry may come from an Isuzu-powered machine, a Komatsu PC310 excavator or an engine rebuild program. Naming the host machine and engine code lets the supplier separate workshop replacement, project stock and dealer replenishment before discussing quantities.

The M9T82071 family is widely cross-listed, yet the product must still retain the 7.0kW output, eleven-tooth module-3.5 drive and large Ø180 flange. A similar three-hole starter can place its ears, drive nose or terminals differently.

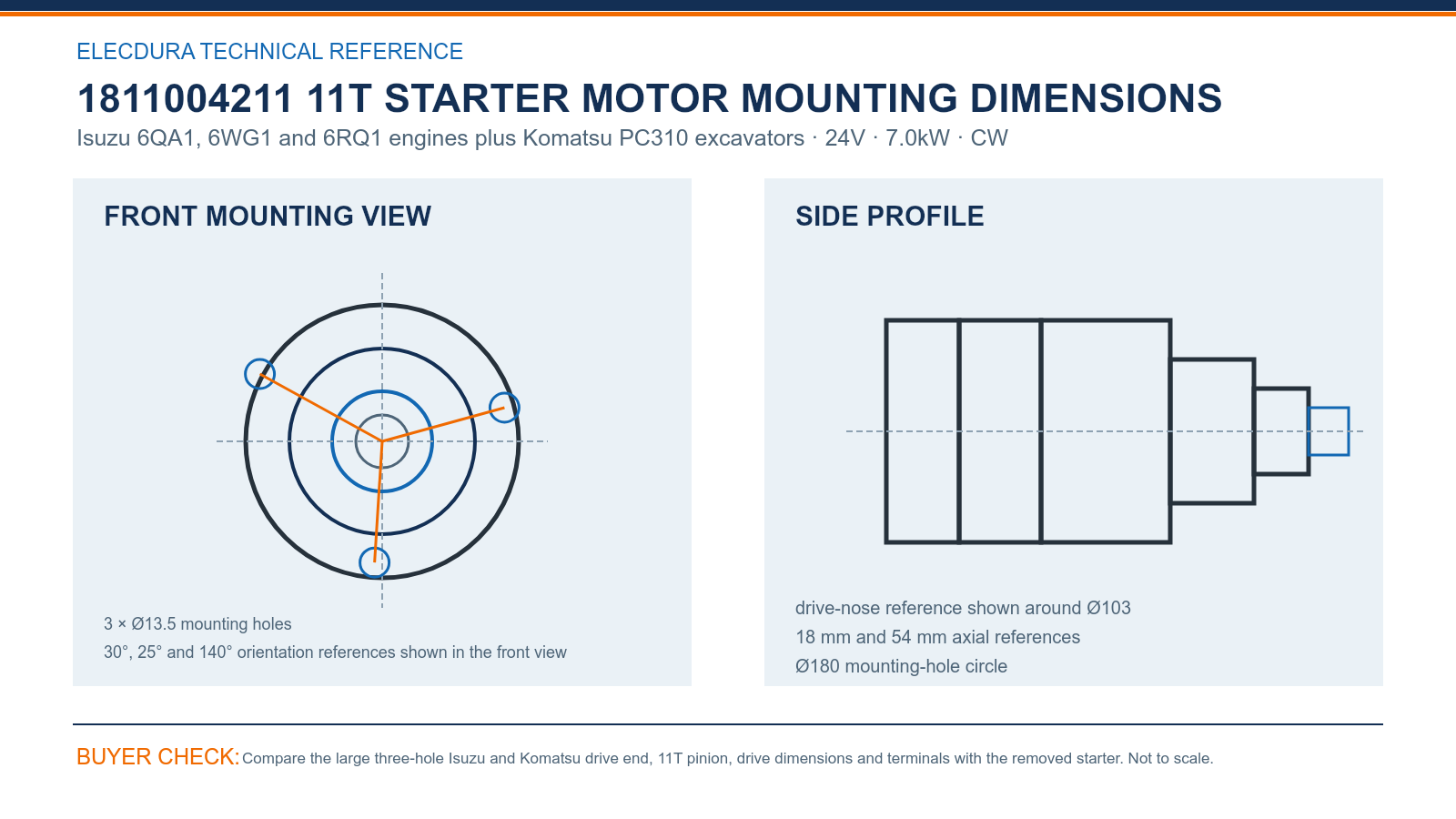

1811004211 Starter Motor Drawing for Isuzu and Komatsu Buyers

This starter is defined by 24V, 7.0kW, 11T, module 3.5 and clockwise rotation. The electrical rating suits high-demand equipment, while tooth count and module identify the gear interface that purchasing should carry through every order document.

Use the technical drawing to compare three Ø13.5 holes, the Ø180 circle, the drive-nose reference around Ø103 and the 18 mm and 54 mm axial values. The 30°, 25° and 140° orientation is easiest to judge from a clean square front photograph.

1811004211 Starter Motor Reference Matching for Excavator Supply

1811004211 and 1811004215 connect to M009T82071 and M9T82071. Add the exact Isuzu engine or Komatsu model to each reference search, because the numbers identify a family while the host equipment and flange establish the required product version.

Engine distributors can allocate quantities by 6QA1, 6WG1 or 6RQ1 demand, while Komatsu dealers track PC310 usage separately. One accepted starter definition may support those channels when the physical configuration agrees, but their service histories should remain distinct.

1811004211 Starter Motor Fleet Stock Support for Heavy Equipment

Heavy equipment often works far from a parts counter, so incoming inspection should occur before units move to remote branches. Check the pinion, large mounting face, housing support, terminal caps and sampled electrical result, then preserve carton numbers for later traceability.

The Elecdura production video introduces starter assembly and electrical testing for B2B orders. Isuzu and Komatsu buyers can use it to review manufacturing capacity and packing methods while their 1811004211 sourcing remains anchored to the engine, machine and large drive end.

1811004211 Starter Motor FAQs for Isuzu and Komatsu Buyers

How should buyers identify an 1811004211 engine or machine?

Identify whether the request comes from an Isuzu 6QA1, 6WG1 or 6RQ1 engine, or from Komatsu PC310 equipment. Add the machine model, serial information, old-starter numbers and photographs from the drive end and terminal side. These details keep an 1811004211 enquiry tied to the actual installation instead of a broad engine-family description.

When is M9T82071 useful in an Isuzu sourcing search?

Use M9T82071 as a Mitsubishi cross reference when searching suppliers or comparing a removed unit marked with a manufacturer number. It supports the 1811004211 sourcing group, but it should not replace the engine or machine identification. Confirm the 24V 7.0kW 11T rating, module-3.5 pinion and Ø180 three-hole face before ordering.

Why should 7.0kW remain visible on this equipment starter?

The 7.0kW rating is part of the electrical definition for this heavy-equipment starter, not an optional description. Keeping it visible helps buyers avoid a lower-output unit that shares nearby references or similar housing dimensions. Pair 7.0kW with 24V, 11T, module 3.5 and clockwise rotation on quotations, cartons and repeat-order records.

How can a remote workshop compare the Ø180 mounting face?

Place a ruler or caliper across the mounting face and photograph the flange square to the camera. Compare the Ø180 mounting-hole circle, three Ø13.5 holes and the 30°, 25° and 140° orientation references. Also record the drive-nose and axial positions, since an angled housing photograph cannot confirm the full PC310 mounting geometry.

How should 6QA1, 6WG1 and 6RQ1 demand be recorded?

Record demand by engine or machine channel: 6QA1, 6WG1, 6RQ1 and PC310 should remain visible on customer and branch records. Use one confirmed 1811004211 product definition underneath those channels, while retaining each customer’s serial details and old-unit photographs. This keeps forecasting useful without implying that every installation is automatically interchangeable.

What makes an 1811004211 spare useful for a PC310 fleet?

A useful PC310 spare is already matched to the fleet’s removed starter and stored with its machine identity. The 24V 7.0kW 11T electrical and drive set, Ø180 three-hole face and terminal position should be confirmed before stocking. That preparation shortens downtime because the branch does not need to restart identification after a breakdown.

Which packing checks matter before remote excavator dispatch?

Before dispatch, protect the pinion and drive nose from impact, cover the terminals, secure the starter so its weight cannot shift and keep moisture away from the carton. Verify the label and 1811004211 identification before sealing. For remote excavator sites, include the confirmed product photographs and packing list so receiving can check the shipment immediately.

What should a vehicle-down or machine-down request contain?

Mark the machine-down priority and provide the Isuzu engine or Komatsu model, equipment serial, old-starter numbers, straight mounting and terminal photographs, delivery location and required arrival date. Include the 24V 7.0kW 11T requirement if known. Complete information lets Elecdura assess the 1811004211 match and respond without avoidable clarification delays.

Request 1811004211 Starter Motor Wholesale Terms

Send the Isuzu engine code or Komatsu PC310 model, complete 1811004211 or M9T82071 marking, square flange, pinion and cable-side photographs, quantity, urgency, packing preference and destination to info@elecdurauto.com. Elecdura will review the required configuration and provide wholesale price, lead time and delivery terms.
