1K012-63011 Kubota Starter Motor 12V 3.0kW 9T

1K012-63011 Agricultural Machinery Starter Motor for KUBOTA V3800

For fleet-parts buyers confirming commercial terms, Elecdura offers 1K012-63011 as an aftermarket agricultural machinery starter motor for KUBOTA V3800. The 12V, 3.0kW and 9T configuration is intended for professional replacement sourcing by agricultural-machinery distributors, importers and engine-parts wholesalers.

For private-label buyers planning mixed-model inventory, the commercial value is a clearly identified starter rather than a generic visual match. Buyers can use the OE group, application, product images and technical data together, while neutral packaging and private-label review can be discussed for qualified bulk orders.

1K012-63011 Starter Motor Specifications and Technical Drawing

For technical sales teams reviewing drive-end geometry, the 9T pinion is a fast visual identifier, but the purchase decision should also retain 12V, 3.0kW, the mounting geometry and terminal position.

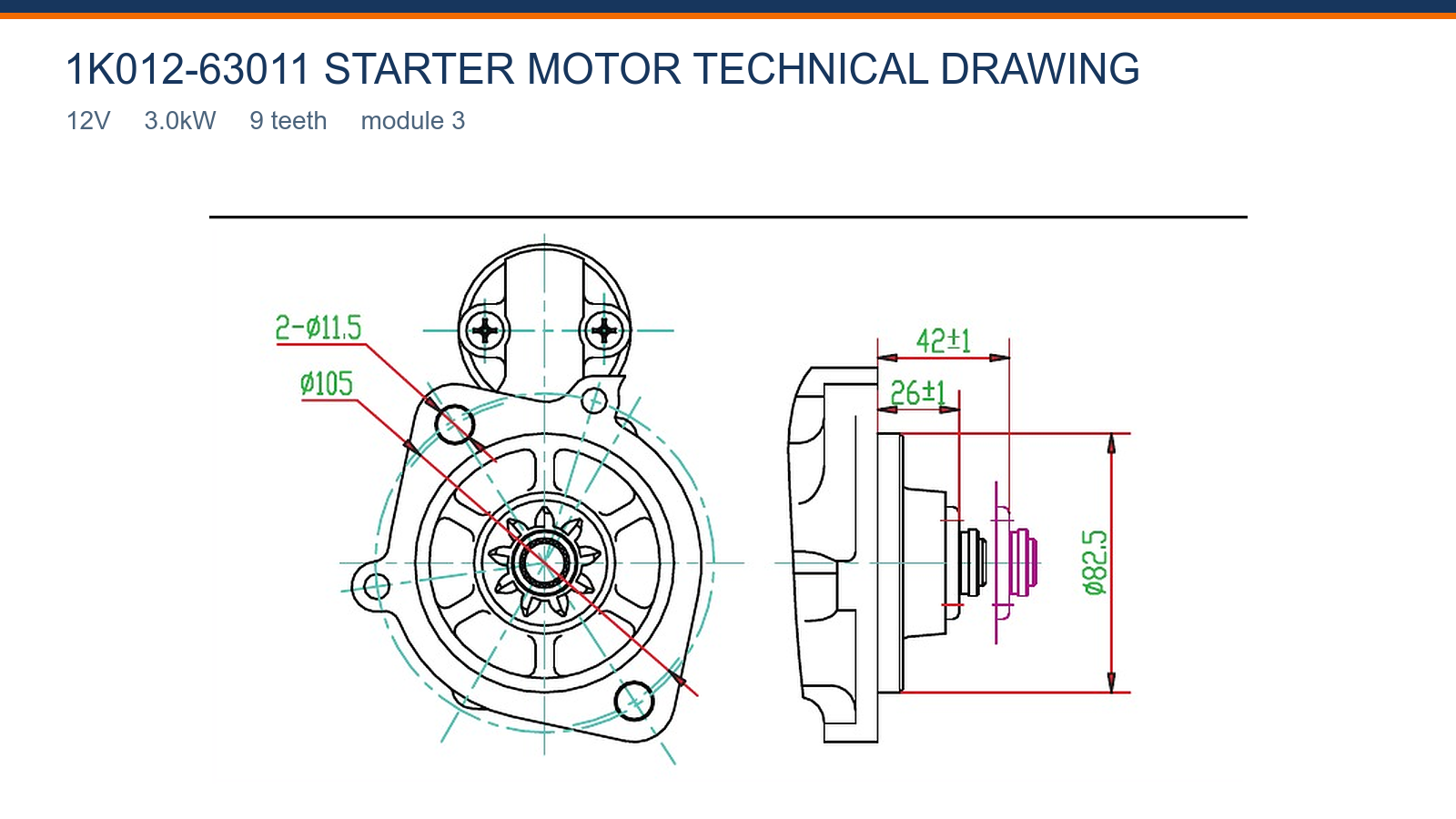

For fitment reviewers preparing an OE-based quote, the source-faithful technical drawing records the available mounting information for 1K012-63011, including 2×Ø11.5, 42±1 mm; use the printed values together with the product views because the drawing supports comparison and should not be scaled from the screen.

1K012-63011 Aftermarket Replacement and Application

For purchasing teams confirming the stated application, 1K012-63011, M008T50471 forms the usable OE and cross-reference group for this product, while KUBOTA V3800 is the stated application. Cross-reference numbers help buyers find the product, but a direct replacement should still agree on voltage, output, pinion and the visible mounting configuration.

For distributors checking application evidence, product photos and the stated specifications should be reviewed together. If the old starter uses another pinion, mounting face or rear connection, keep that configuration on a separate RFQ until it is identified.

1K012-63011 Wholesale Supply for Distributors and Importers

For aftermarket product managers planning a repeat order, Elecdura supports repeat-order and new-line sourcing for 1K012-63011. Commercial planning can cover a 20 pcs MOQ, 7–15 day lead time subject to confirmation, neutral packaging or private-label review, and an 18-month agreed warranty.

For engine-parts specialists setting packaging requirements, define the reference group, accepted product version, inspection request and packaging standard before production. Those records help both sides manage replenishment and resolve any receiving question efficiently.

1K012-63011 Starter Motor Buyer FAQ

Which specification deserves priority for 1K012-63011 drawing dimensions when checking a replacement proposal?

For importers checking application evidence, read the 1K012-63011 drawing as a comparison aid, not as permission to ignore the removed unit. Check every visible diameter, hole callout, length and angle that affects seating or engagement, then confirm the terminal view from the product photos. The drawing is schematic and not to scale, so decisions must follow the printed values rather than a visual estimate from the image.

How can a buyer screen 1K012-63011 drive-end photograph before stock is assigned?

For product managers confirming electrical ratings, the drive-end image for 1K012-63011 should be used to count 9 teeth and compare the flange, locating shoulder and pinion rest position. View the customer's old starter from the same angle and lighting. An oblique view can make the pinion and hole pattern difficult to judge, so request a straight-on image when the deciding features are unclear.

How can a buyer screen KUBOTA V3800 production changes before stock is assigned?

For maintenance suppliers checking repeat-order specifications, KUBOTA V3800 may appear across equipment years or engine revisions, so the application name is an entry point rather than the sole proof of fitment. Match 1K012-63011, 12V, 3.0kW and 9T to the old starter. A changed suffix, flange or terminal layout should open a separate review for that machine.

Which check should lead 1K012-63011 cartons and units when preparing a fitment request?

For private-label buyers planning replenishment, sample cartons from different positions in the shipment and compare the 1K012-63011 labels, 12V marking, 9-tooth pinion, flange shape and terminal protection with the ordered item description. Photograph any mixed marking, damaged terminal or different drive end ahead of installation, and isolate those pieces so the rest of the lot can be assessed consistently.

What evidence best identifies 1K012-63011 side-profile photograph before an installation slot is booked?

For purchasing teams reviewing drive-end geometry, the side profile of 1K012-63011 shows body length, solenoid placement and the relationship between flange and drive. Compare it with a square side view of the removed starter, then use 42±1 mm where available. This angle helps reveal a housing or projection difference that a front-only photograph can miss.

What should receiving teams compare on 1K012-63011 inquiry package during an application review?

For distributors opening a first commercial order, A useful inquiry for 1K012-63011 includes quantity, destination, required date, KUBOTA V3800, the full old-unit number and clear photos of the label, drive end, flange geometry and terminal layout. State neutral or private-label packaging needs at the same time. Elecdura can then quote the 12V, 3.0kW, 9T version against an exact starter specification.

How can an importer validate KUBOTA V3800 previously replaced starter before accepting a substitute?

For technical buyers separating similar housings, ask whether the starter removed from KUBOTA V3800 is original or an earlier replacement. If it has been substituted before, the visible unit may not represent the equipment's initial build. Use its label and geometry together with 1K012-63011, 12V, 3.0kW and 9T before turning that history into a bulk stocking decision.

What should purchasing verify first for 1K012-63011 ring-gear engagement before stock is assigned?

For engine-parts specialists evaluating a direct replacement, review the 9T pinion, module 3, rest position and available axial dimensions as one engagement set. Inspect the ring gear for wear before fitting. A correct bolt pattern cannot protect the gear if pitch or projection differs, so drive geometry should be resolved before the starter is energized.

Request a Wholesale Quote for 1K012-63011 Agricultural Machinery Starter Motor

For regional parts suppliers planning replenishment, prepare the RFQ with 1K012-63011, M008T50471, the complete application, quantity, target delivery and packaging requirements. We will respond with the defined 12V 3.0kW 9T starter motor line rather than a generic substitute.
