Automotive valve service using the matching tall round coil, lead harness and external ground terminal
Confirm confirm from old coil, not stated, lead wire with ring terminal, coil bore and retaining method before installation.
| Quantity: | |
|---|---|

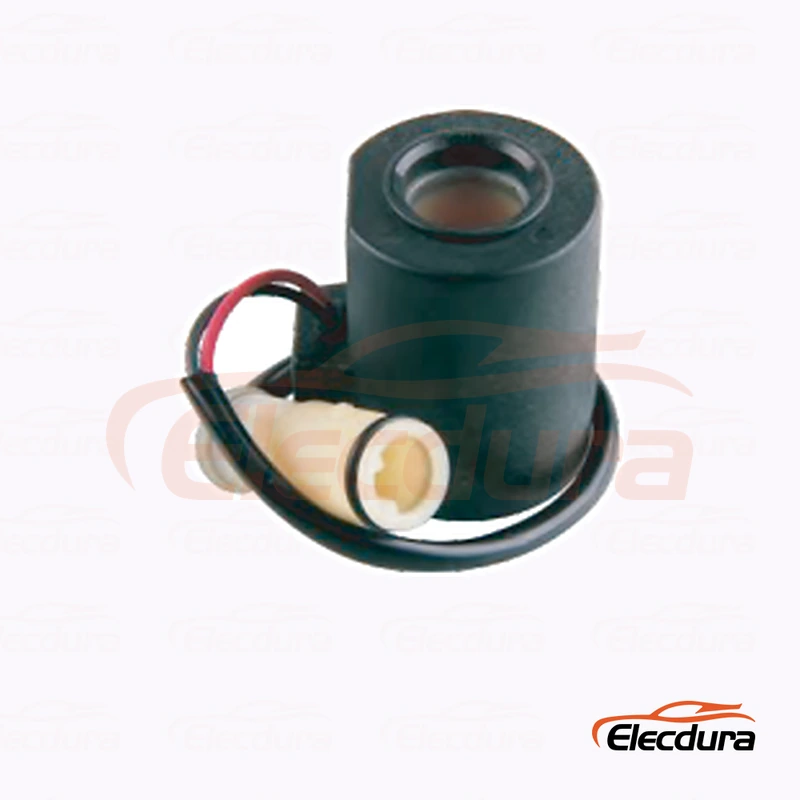

Confirm from old coil Automotive Hydraulic Solenoid Coil is a automotive hydraulic solenoid coil for Automotive valve service using the matching tall round coil, lead harness and external ground terminal. Buyers should confirm old-coil evidence, confirm from old coil, lead wire with ring terminal, coil bore and body construction before approving replacement stock.
Specification | Confirmed Information |
|---|---|
Product Type | Automotive Hydraulic Solenoid Coil |
Primary Reference | Construction-specific replacement |
Cross References | No verified public OE number assigned |
Voltage | Confirm from old coil |
Power | Not stated |
Connector | Lead wire with ring terminal |
Insulation Class | F/H |
Application Scope | Automotive valve service using the matching tall round coil, lead harness and external ground terminal |
MOQ | 50 pcs |
Delivery Time | 7 to 15 Days |
Warranty | 12 Months |
Complete every control point below before a sample or bulk order is released.
Approval Point | Buyer Review |
|---|---|
Reference | Use complete old-coil evidence |
Electrical | Confirm from old coil; Not stated; verify under load |
Connector | Lead wire with ring terminal |
Mechanical | Compare bore, height, body shape and retaining method |
Machine Evidence | Automotive valve service using the matching tall round coil, lead harness and external ground terminal |
Separate electrical command, component movement and final machine response so the actual wiring or hydraulic fault is not hidden by parts replacement.
Observed Condition | Recommended Check |
|---|---|
No magnetic pull | Check loaded voltage, ground, continuity and coil resistance. |
Intermittent operation | Inspect terminal retention, lead damage and heat-related winding faults. |
Excessive heating | Confirm voltage, wattage, duty cycle and free valve-stem movement. |
Connector damage | Inspect keying, seals, corrosion and harness side loading. |
Correct coil, no hydraulic response | Inspect the armature, spool, oil cleanliness and machine command. |
When a customer reports intermittent operation, keep the verified measurements and test result in the service record. Approve the complete old marking, confirm from old coil rating, not stated power reference, lead wire with ring terminal, coil bore, body height and retaining method. A matching voltage alone does not prove fit. Send straight-on connector, top-bore and side-profile photographs with measurements so the replacement is selected from electrical and mechanical evidence.
When a new supplier lot enters dimensional inspection, keep the verified measurements and test result in the service record. Measure voltage directly across the energized coil while the machine issues the real hydraulic command. An unloaded harness reading can hide resistance at a corroded terminal, relay or ground path. Compare the loaded result with confirm from old coil, record polarity where suppression is present and correct the circuit before blaming a new coil for weak magnetic pull.
When an incoming production lot is released, keep the verified measurements and test result in the service record. Power affects current draw, heat generation and available magnetic force. A replacement with another wattage may fit the valve stem yet operate too weakly, run hotter or exceed a controller output. Confirm not stated from the old label or approved specification, then compare warm current and temperature during sample testing before releasing a bulk order.
When a customer reports intermittent operation, keep the verified measurements and test result in the service record. Verify loaded supply voltage, current draw, duty cycle, connector resistance and whether the hydraulic armature reaches full travel. A stuck valve can keep magnetic demand high, while overvoltage or the wrong wattage can overheat the winding. Inspect oil contamination and valve movement before replacing the coil again so the root cause is corrected.
When a distributor prepares repeat stock, keep the verified measurements and test result in the service record. Provide the complete old marking, measured voltage, connector-face photograph, bore and height dimensions, power reference, valve or machine application, quantity and destination. If the label is missing, include current draw and clear views from every side. This evidence allows technical approval and commercial quotation to proceed together without relying on appearance alone.
When a remote service kit is prepared, keep the verified measurements and test result in the service record. Match the carton and coil labels to the purchase order, measure sample resistance, inspect connector keying and verify bore and height. Keep 12V, 24V and unusual voltage stock in separate labeled locations. A visual check alone is insufficient because several voltage versions can share the same molded body and connector.
When a repeat overheating case is investigated, keep the verified measurements and test result in the service record. Store coils in a clean dry area with connector caps or sealed bags, and keep metal particles away from the bore. Separate voltage and connector variants by labeled bin. Retain lot identification and the approved sample so warehouse staff can compare markings and construction before releasing parts to a distributor order or field service kit.
Send the complete old marking or component evidence, confirmed voltage, machine information, clear photos, measurements and required quantity for a fitment-focused B2B quotation.
