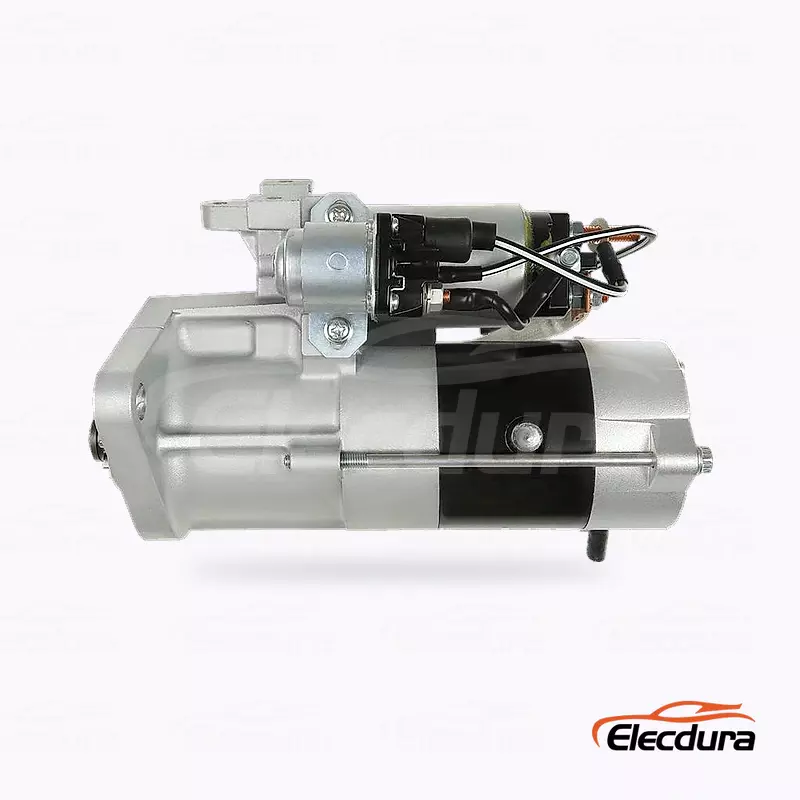

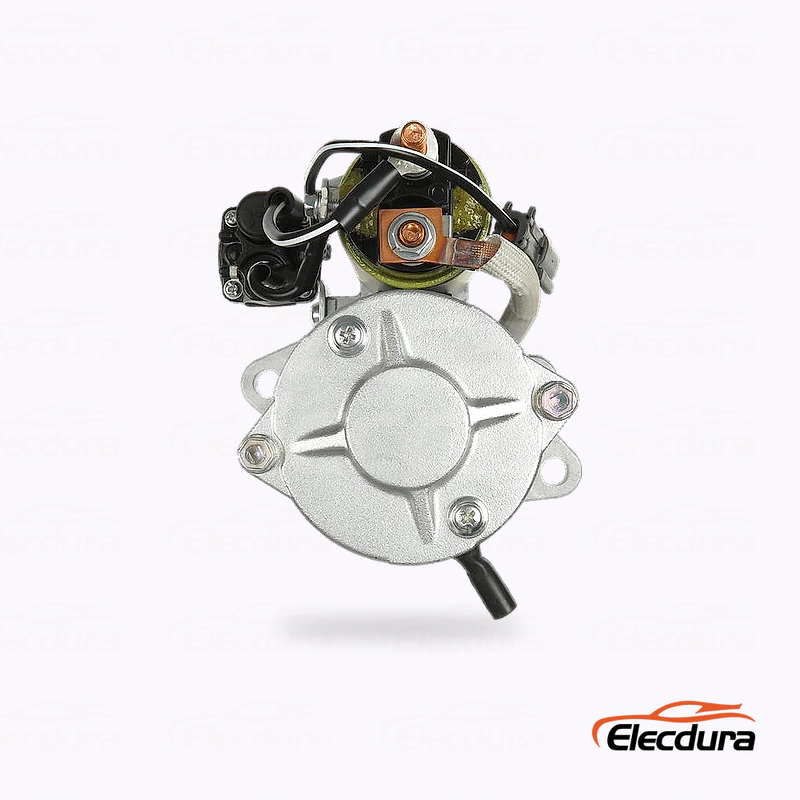

M008T55071 Fuso 4D34-2AT4 Starter Motor Wholesale

M008T55071 Fuso 4D34-2AT4 Starter Wholesale for Importers

The 4D34 family appears across several Fuso variants, and a broad engine description can hide meaningful fitment differences. Buyers should identify the 4D34-2AT4 suffix, vehicle model and removed-unit face when requesting M008T55071 for importer stock.

M008T55071 shares references with M008T55073 and neighboring 4D34 products, but this entry is tied to the 4D34-2AT4 application. Preserve that application alongside the 9T module-3 drive and four-point mixed flange so related listings do not collapse into one generic product.

M008T55071 9T Starter Dimensions for Distributor Matching

The commercial identity is 12V, 3.6kW, 9T, module 3 and CW. Place those values next to the 4D34-2AT4 suffix on the quotation, carton and warehouse label to keep shared cross-references from obscuring the intended application.

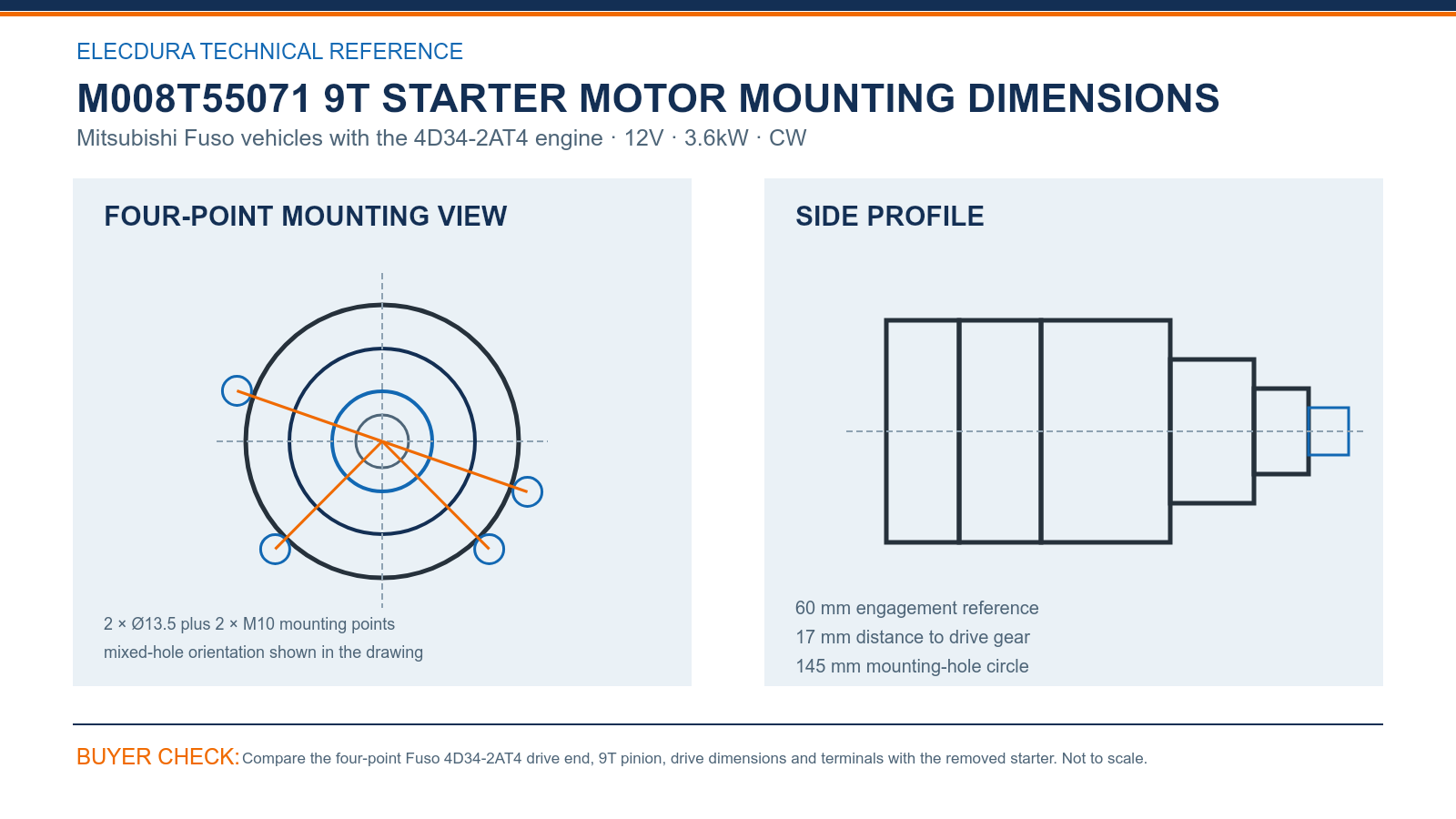

M008T55071 Fuso 4D34-2AT4 Starter Drawing for Importers — compare the drawing with the removed starter before placing a volume order.

Check two Ø13.5 holes, two M10 points, the 145 mm circle, 60 mm engagement reference and 17 mm drive distance. When the dimensions match another family member, use the engine suffix, vehicle details and terminal view to complete the distinction.

M008T55071 ME015766 Fitment Separation for Fuso Buyers

ME015766, ME215097, M008T55073, STM0102 and 18971N expand the sourcing path. They do not remove the need to state 4D34-2AT4 on the enquiry, because the same reference family can appear across other Fuso equipment variants.

Importers carrying several related Fuso starters should label this bin by OE, engine suffix and pinion rather than OE alone. A customer requesting a different 4D34 suffix can be reviewed against the same drawing, but should not be merged until the removed-unit evidence agrees.

M008T55071 4D34 Starter Supply Checks for Volume Orders

On receipt, sample nine teeth, the four mounting points, 145 mm circle, protected terminals and carton support. Keep separate accepted photographs for 4D34-2AT4 stock so future branch transfers do not rely on a shared M008T55071/M008T55073 reference label.

Elecdura's assembly and electrical-testing video supports discussions about repeatable starter supply. Fuso importers can pair it with engine-suffix labeling, first-lot sampling and export packing requirements for their 4D34-2AT4 program.

M008T55071 Starter FAQs for Fuso 4D34-2AT4 Importers

Why must the 4D34-2AT4 suffix stay with M008T55071?

The 4D34-2AT4 suffix narrows a broad Fuso engine family to the application represented by this product. M008T55071 also appears with related 4D34 starters, so dropping the suffix can merge different customer requirements. Keep it beside the 9T drive, mixed four-point flange and vehicle details in the quotation and stock description.

Can M008T55071 and M008T55073 share one product identity?

They can share cross-reference notes, but they should remain separate product identities when the application data assigns different engine variants. For M008T55071, retain the 4D34-2AT4 application and accepted sample views. A request for M008T55073 or another suffix should be compared independently before inventory or fitment history is combined.

What if the flange dimensions match another 4D34 starter?

Matching dimensions show that the candidate shares the measured face and drive references, but they do not prove the complete vehicle application. Compare the Fuso model, 4D34 suffix, terminal position and all old-starter numbers as well. When several family members use the same flange, those remaining details protect the distributor from overbroad fitment claims.

How should importers label this Fuso starter in storage?

Use a label that includes M008T55071, Fuso 4D34-2AT4, 12V 3.6kW, 9T and the mixed Ø13.5/M10 flange. Attach an accepted terminal-side photograph to the digital stock record. Keep neighboring 4D34-2AT6 or generic Canter inventory in separate locations even when some OE numbers overlap. Put the engine suffix on picking documents as well as the shelf label.

Which photographs make a 4D34-2AT4 sample useful?

Request a square front view showing both Ø13.5 holes and both M10 points, a side view that shows the 9T pinion projection and a terminal image with cable positions visible. Photograph the label and old unit together if possible. These views let purchasing compare the 4D34-2AT4 sample without depending on housing color.

When should an incoming M008T55071 carton be held for review?

Hold a carton when the tooth count, mounting-point mix, terminal direction or electrical label differs from the accepted M008T55071 sample. Threads damaged in transit and an unsupported nose also require review. Keep held units outside saleable 4D34-2AT4 inventory until their lot, markings and physical features have been reconciled.

What evidence should remain with a confirmed repeat order?

Preserve the vehicle and 4D34-2AT4 details, complete OE set, accepted mounting and terminal photographs, sample date and shipment label. Reference that evidence on the next purchase order. A repeat order should reproduce the confirmed product identity instead of assuming that a shared M008T55071 or ME015766 number remains sufficient forever.

Which details allow M008T55071 wholesale pricing?

Send the Fuso vehicle and 4D34-2AT4 information, M008T55071 family numbers, square flange, pinion and terminal photographs, and measured dimensions when available. Add quantity, annual forecast, carton or private-label needs, destination and delivery date. Elecdura can then prepare wholesale pricing for this specific application rather than a generic 4D34 starter.

Request M008T55071 Fuso 4D34-2AT4 Starter Wholesale Pricing

Email the Fuso model, 4D34-2AT4 engine details, all old-starter numbers, square flange and terminal photographs, quantity, destination and labeling needs to info@elecdurauto.com. Elecdura will review M008T55071 and prepare wholesale terms.
