M008T55071 Fuso 4D34 Starter Motor Distributor Supply

M008T55071 Fuso 4D34 Starter Distributor Value for Canter Fleets

Canter fleets often depend on small urban vehicles where one no-start disrupts deliveries immediately. Buyers can use fleet count, model year and workshop demand to decide whether M008T55071 belongs in counter stock, service vans or central reserve.

M008T55071 and M008T55073 share the major reference family and similar specifications. For this product, retain the M008T55071 identity, actual 4D34 truck record and mixed-hole mounting image instead of choosing by housing appearance alone.

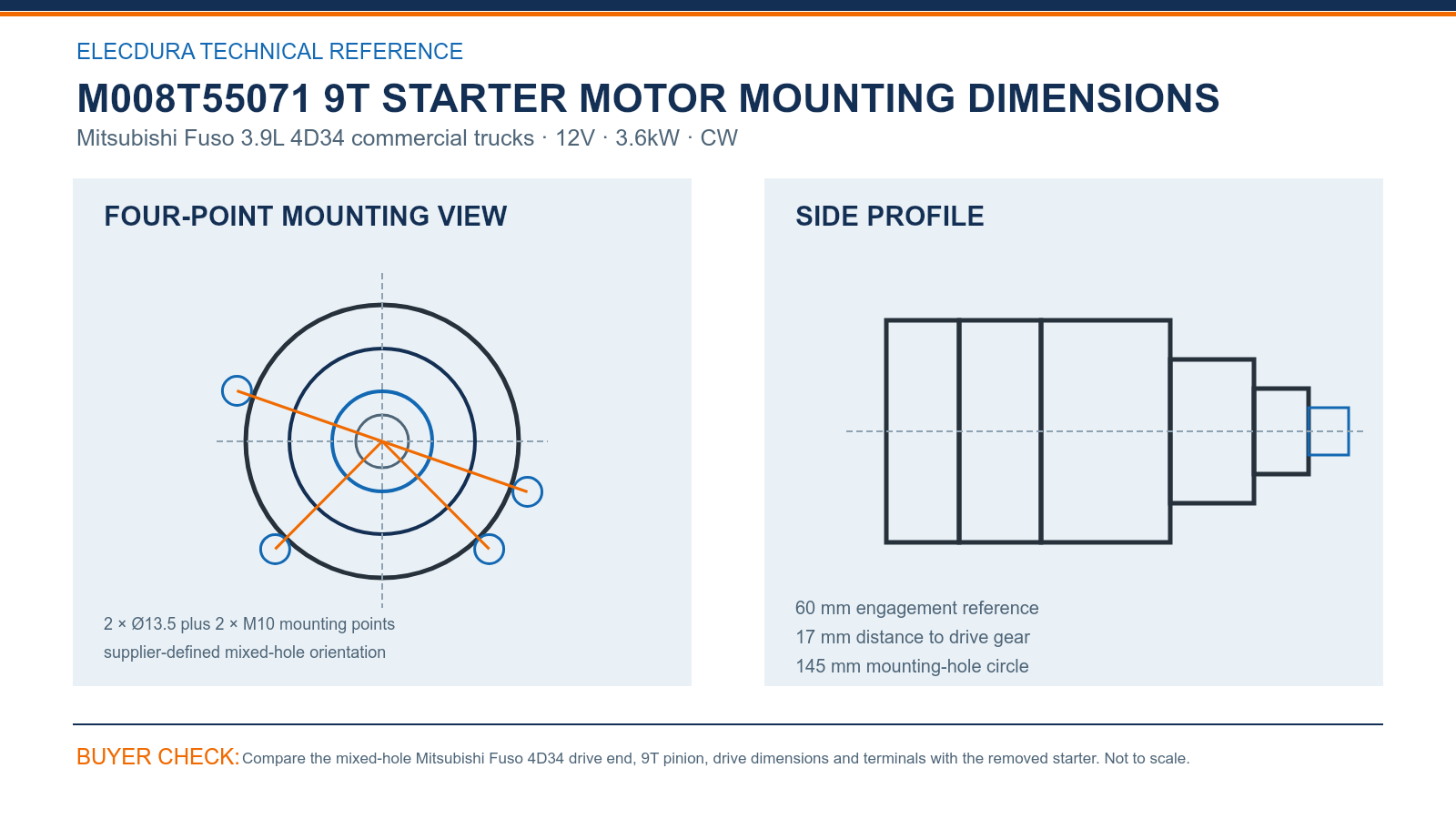

M008T55071 Mixed-Hole Starter Drawing for B2B Checks

The required set is 12V, 3.6kW, 9T, module 3 and clockwise rotation. All values should appear on the quotation and warehouse description so a 9T Canter starter cannot be replaced by another Fuso product with a similar body.

M008T55071 Fuso 4D34 Starter Drawing for Distributor Matching — compare the drawing with the removed starter before placing a volume order.

Compare the 60 mm engagement reference, 17 mm drive distance, 145 mm circle, two Ø13.5 holes and two M10 points. The mixed-hole layout is more decisive than a broad 4D34 description when variants share the same reference group.

M008T55071 Fuso Starter OE Matching for Parts Distributors

M008T55071 links to M8T55071, ME015766, ME215097 and 18971N. The reference set supports sourcing, while the 3.9L 4D34 truck identity and flange photographs determine whether this specific stock line is appropriate.

Distributors can record confirmed Canter models and years beside the item. If a request shows M008T55073 or a more specific 4D34-2AT6 engine, route it to a separate comparison instead of merging both listed products.

M008T55071 Starter Branch Supply and Quality Testing

Sample the first delivery for nine teeth, all mixed mounting points, rating label, terminals and protected ears. Separate any unit carrying the neighboring reference before cartons are issued to fleet branches.

Elecdura’s video introduces starter assembly and electrical testing for commercial supply. Fuso buyers can review production capability while setting branch labels, sample checks, export packing and replenishment timing for M008T55071.

M008T55071 Starter FAQs for Fuso 4D34 Distributors

Which Canter and 4D34 details should accompany M008T55071?

Include the Fuso Canter model, 3.9L 4D34 engine designation, year and chassis or VIN, plus every readable number on the removed starter. Add straight photographs of the mixed-hole mounting face, nine-tooth pinion and terminals. These details distinguish M008T55071 from the closely related M008T55073 line before pricing or stock allocation.

How should M008T55071 be separated from M008T55073 stock?

Keep separate bins and labels for the two primary references, even though they share major specifications and cross-references. M008T55071 should remain tied to the 3.9L 4D34 vehicle record and its accepted old-unit photographs. A branch should not relabel it as M008T55073 solely because the flange and electrical rating look alike.

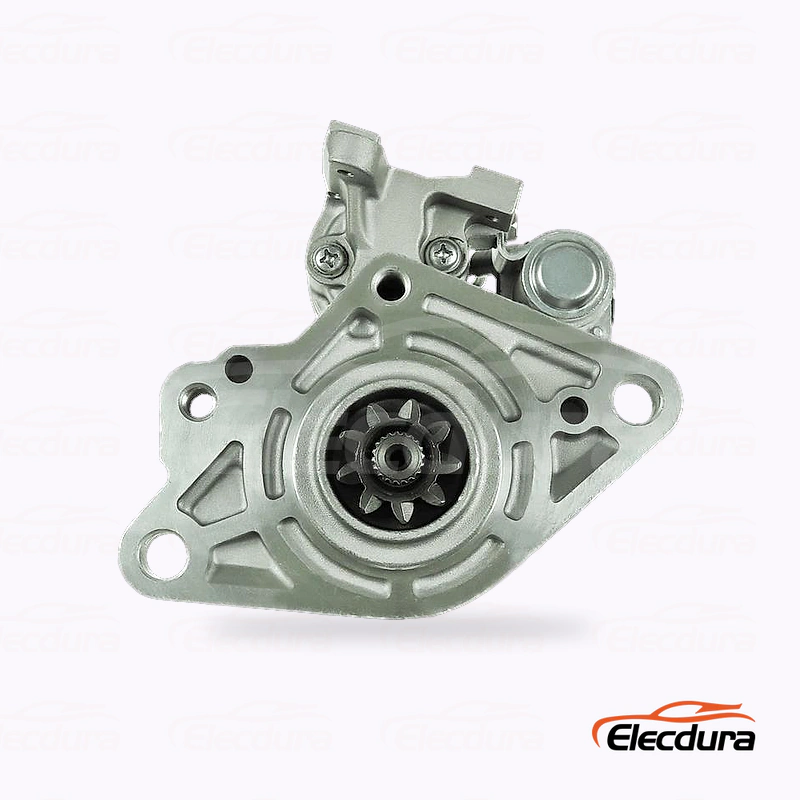

Why is the mixed Ø13.5 and M10 flange important?

The face combines two Ø13.5 holes with two M10 points on a 145 mm reference circle. That mixed layout determines how the starter locates and fastens to the engine. If a similar housing uses four plain holes or different threaded positions, it may not seat correctly even when voltage, power and tooth count match.

What does the 9T module-3 drive tell a Fuso buyer?

Nine teeth and module 3 describe the pinion count and tooth pitch that must engage the 4D34 ring gear. They separate this 12V 3.6kW starter from nearby Fuso products using another gear. Buyers should record both values with clockwise rotation instead of treating a 9T count as a complete drive specification.

How can an urban Canter fleet size reserve quantity?

Use the number of active Canter trucks, delivery-route criticality, recent no-start incidents, workshop turnaround and replenishment time. Urban fleets may keep service-van units close to operations while holding additional stock centrally. Separate emergency reserve from normal maintenance consumption, then add forecasted vehicle additions or retirements before setting the M008T55071 quantity.

Which features should receiving sample on M008T55071?

Receiving should sample the M008T55071 label, 12V 3.6kW rating, nine-tooth pinion, two Ø13.5 holes, two M10 points and terminal orientation. Inspect the nose, mounting ears, studs and body support for damage. Photograph the selected cartons and lot marks before units are divided among branches or service vehicles.

What checks help avoid a false starter warranty return?

Check battery health and cranking voltage, positive and ground-cable voltage drop, cable ends, relay operation and voltage at the solenoid trigger terminal. Confirm the engine and ring gear turn normally and inspect for oil or debris at the drive end. Attach these test results to the claim so vehicle-side faults are separated from an M008T55071 defect.

What should a Fuso distributor send for M008T55071 pricing?

Send the Canter model, 4D34 engine, year and chassis details, all M008T55071 or related markings, and straight mounting, pinion and terminal photographs. State quantity, branch demand, packaging or label requirements, destination and required date. Elecdura can then confirm the 9T mixed-hole version and prepare commercial pricing for the distributor.

Request M008T55071 Fuso 4D34 Starter Distributor Terms

Send the Fuso Canter model, 4D34 engine and year, complete old-unit number, square flange, pinion and terminal photographs, quantity and destination to info@elecdurauto.com. Elecdura will review M008T55071 and prepare distributor pricing.
