M3T90273 Mitsubishi Fuso FH Starter Motor Distributor

M3T90273 Fuso FH6 Starter Distributor Support for Legacy Fleets

FH6 demand often arrives from older vehicles with faded labels or previous repairs. A clear enquiry should combine the truck, engine and every readable starter marking so a sales team can distinguish this 11T product from nearby Fuso units.

The ME087506 reference family can include different tooth counts or outputs. This product uses a 12V 3.6kW 11T definition, so the two-ear face and removed starter must support that exact combination before supply.

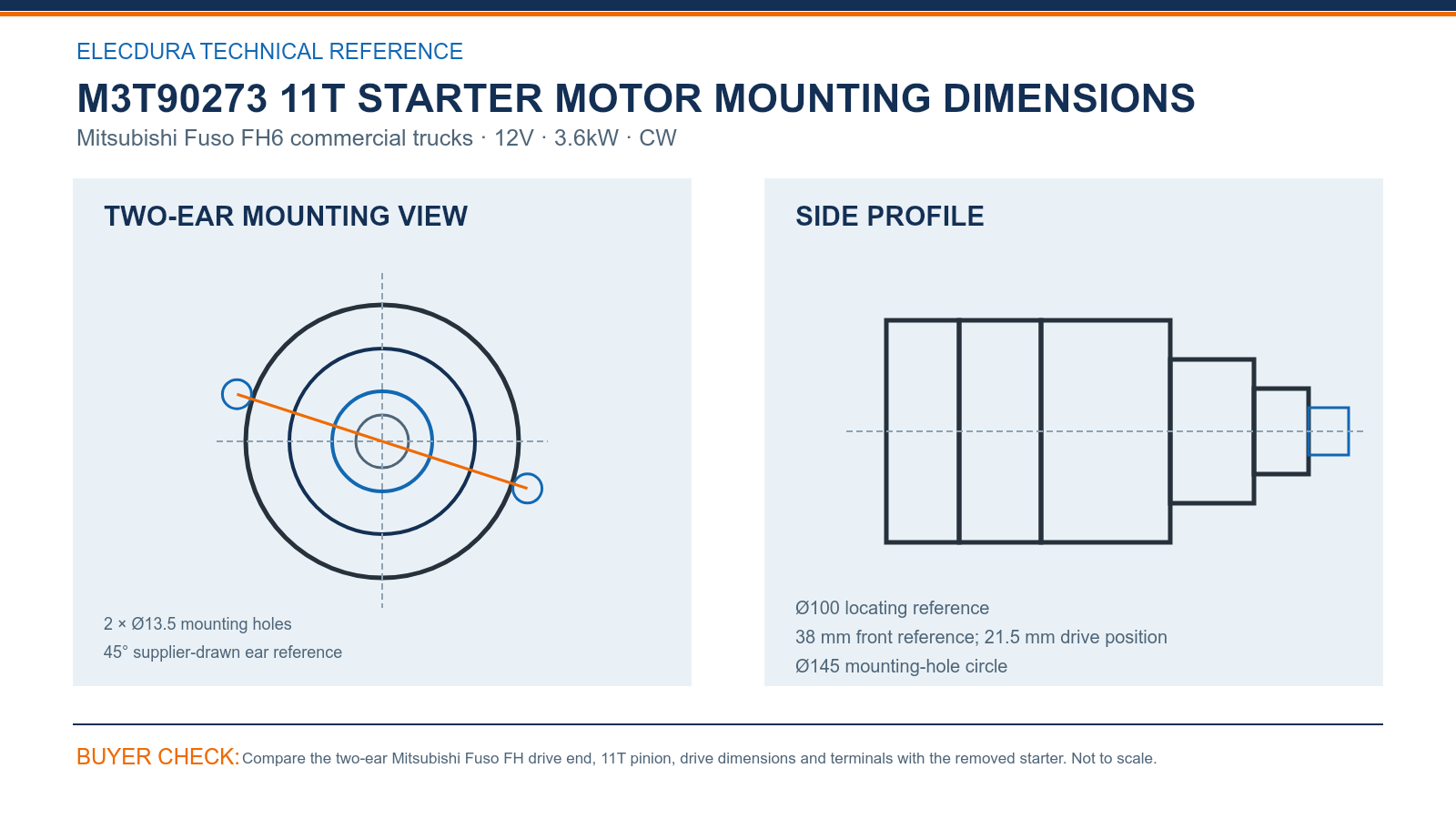

M3T90273 11T Starter Drawing for Commercial Parts Buyers

The product configuration is 12V, 3.6kW, 11T, module 3 and clockwise rotation. Put this complete set on the quotation and receiving record so a nearby interchange cannot silently change the starter being purchased.

M3T90273 Mitsubishi Fuso FH6 Starter Drawing for Parts Buyers — compare the drawing with the removed starter before placing a volume order.

Review the two Ø13.5 holes, Ø145 mounting circle, Ø100 locating reference, 38 mm front reference and 21.5 mm drive position. The 45° ear reference should also agree with a square photograph of the old flange.

M3T90273 FH6 Reference Review for Mitsubishi Wholesalers

M3T90273, M8T55171 and ME087506 provide the useful search path. Because that family can span several versions, the FH6 application, 11T drive and accepted mounting views remain the final order definition.

Legacy fleet buyers should keep vehicle and starter photographs with each confirmed customer record. Repeat supply can then use the accepted comparison, while an unfamiliar FH variant receives a new review rather than borrowing another vehicle’s result.

M3T90273 Starter Supply Consistency and Factory Testing

Inspect first-lot labels, eleven teeth, both mounting ears, solenoid terminals and body support. If the product marking or pinion differs from the accepted definition, quarantine the carton before it reaches branch stock or an export consolidation.

The video below gives Fuso parts buyers a view of Elecdura’s assembly and electrical-test capability. M3T90273 sourcing can then be discussed together with first-lot inspection, clear FH6 carton identification and the delivery plan required by the distributor.

M3T90273 Starter FAQs for Fuso FH6 Distributors

Why is 11T kept in the M3T90273 purchase specification?

Elecdura treats M3T90273 here as a 12V 3.6kW starter with an 11T module-3 drive and clockwise rotation. Keeping 11T in the purchase specification separates this product from related references carrying another pinion. Buyers should confirm the count on the removed starter and the two-ear flange before accepting the quoted version.

Which Mitsubishi Fuso FH6 details should a buyer provide?

Provide the Fuso FH6 model, engine designation, year and chassis information, along with every readable number on the old starter. Add square photographs of the two mounting ears, pinion, side profile and terminals. If markings are faded, include engine and vehicle plates so the product is not selected from ME087506 alone.

Can ME087506 alone establish the correct FH6 starter version?

No. ME087506 helps identify the broader Mitsubishi reference family, but that family can include different tooth counts or outputs. The correct FH6 version should also match the 11T module-3 drive, two Ø13.5 holes, Ø145 mounting circle, nose references and terminal side shown by the removed starter.

What dimensions should be checked on the M3T90273 drawing?

Check the two Ø13.5 mounting holes, Ø145 hole circle, Ø100 locating reference, 38 mm front reference and 21.5 mm drive position. Compare the 45° ear relationship and terminal orientation from a square front image. These dimensions should agree with the FH6 starter before purchasing places the M3T90273 order.

How can faded old-unit markings be handled without guessing?

Clean the label gently and photograph it under direct and side lighting, then record every legible character rather than guessing the missing ones. Count pinion teeth and measure the two-ear flange, locating face and drive position. Combine those observations with the Fuso chassis and engine plates so the sales team can narrow the M3T90273 version.

When should an incoming M3T90273 carton be quarantined?

Hold the carton if the label, eleven-tooth pinion, two-ear flange or terminal layout differs from the accepted M3T90273 details. Transport damage to the nose, studs, solenoid or body support is another reason for isolation. Record the lot, carton marks and photographs before deciding whether the unit belongs in FH6 stock or requires supplier review.

What evidence should remain with a confirmed FH6 reorder?

Retain the Fuso model, engine and chassis details, all old-unit numbers, and the accepted mounting, pinion and terminal photographs. Link them to the Elecdura product, previous order and shipment lot. This record protects the 11T FH6 identity when faded vehicle markings or broad ME087506 searches appear again on a repeat enquiry.

Which details allow a distributor quotation for M3T90273?

For pricing, send the FH6 vehicle and engine details, complete M3T90273 or ME087506 markings, and clear views of the flange, pinion, nose and terminals. State quantity, repeat demand, packaging or label requirements, destination and requested date. Elecdura can then review the 11T two-ear product and prepare distributor terms for the stated fleet.

Request M3T90273 Mitsubishi Fuso FH6 Distributor Pricing

Send the Fuso FH6 model, engine and year, all old-starter numbers, square mounting, pinion and terminal photographs, quantity, destination and required date to info@elecdurauto.com. Elecdura will review the 11T M3T90273 product and provide distributor pricing.
