S0759 Hatz 3L30C Starter Motor Wholesale Supply

S0759 Starter Motor B2B Fitment Guide for Hatz 3L30C industrial-engine

Hatz engine distributors, industrial-equipment repairers and starter wholesalers can source S0759 for Hatz 3L30C industrial-engine. Preserve the 11T pinion and 12V 3.0kW 11T catalog configuration for the Hatz 3L30C record; do not substitute by engine family or housing appearance alone.

Before comparing S0759 prices, state whether the request covers an initial sample, urgent breakdown demand or routine distributor replenishment. Include the full OE reference, application, photographs, quantity and destination so the offer remains connected to the physical unit the customer expects to receive.

S0759 Starter Motor Technical Data for Fleet Parts Buyers

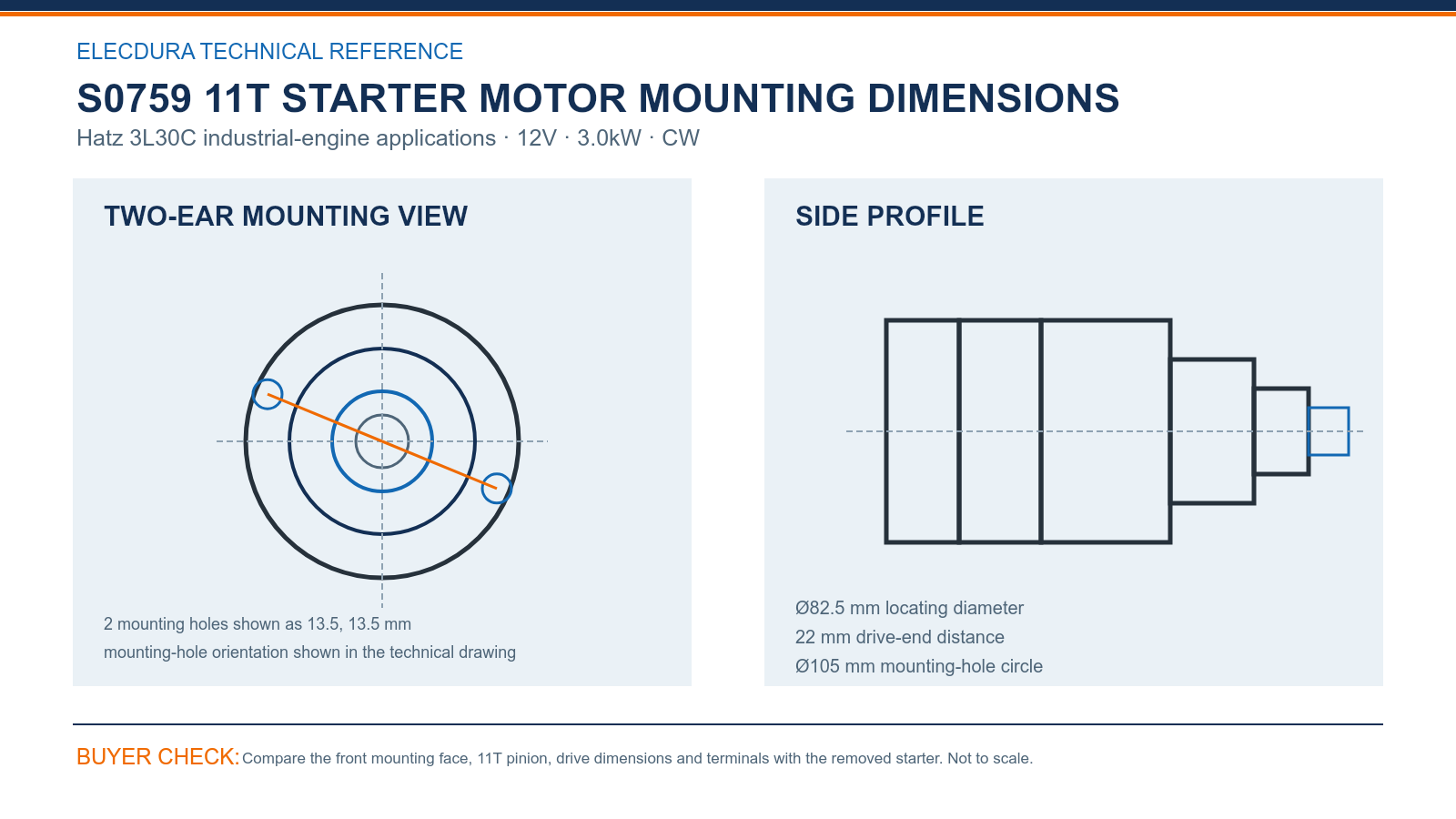

S0759 Hatz 3L30C industrial-engine 12V 3.0kW 11T starter mounting dimensions.

Check the S0759 drawing against the removed starter at the mounting face and drive end. The critical references are 2 mounting holes shown as 13.5, 13.5 mm, Ø82.5 mm locating diameter, Ø105 mm mounting-hole circle and 22 mm drive-end distance. A physical mismatch should stop the unit from entering ordinary stock until the application is clarified.

The S0759 drive-end decision is completed by 11T, module 3 and CW, together with 12V and 3.0kW. Confirm main-terminal and control-terminal positions under the actual cable routing. Similar dimensions do not compensate for the wrong rotation, pinion or electrical rating.

S0759 Starter Motor OE Cross-References for Distributor Enquiries

1. Search group: S0759, 115472, 12411333980, 0001359007, 0001359060, 0001362303, 0001362304 can help distributor teams locate the relevant starter family.

2. Order boundary: Confirm the complete reference with 12V, 3.0kW, 11T, CW, the drawing and terminal photographs before accepting one physical unit.

S0759 Starter Motor Wholesale Supply and Export Planning

Elecdura supports distributor orders from 20 pieces, normally with a 7–15 day lead time after order confirmation and an 18-month warranty under agreed sales terms. Availability, export packing and delivery timing are confirmed against the requested S0759 quantity, destination and required arrival date.

Keep the engine tag and accepted starter photographs with industrial reorders. Buyers should also state whether the order supports a single workshop, several branches or a fleet contract, allowing samples, safety stock, carton labels and staged dispatch to be planned around the actual service requirement.

The production video gives importers and fleet buyers a view of Elecdura starter assembly and electrical checks. For S0759, use it alongside the product-specific reference, application and physical controls on this page, rather than treating a general factory presentation as evidence of fitment.

S0759 Starter Motor Questions from Commercial Buyers

What traceability details should accompany a warranty enquiry for S0759 in a Hatz 3L30C dealer review?

Keep the carton or product traceability code and note when and where S0759 was installed. A review should include symptoms, operating time, old and replacement-unit photographs, cable and battery readings and any ring-gear observations. Complete records allow technical support to respond without repeated requests for basic information.

Why is the S0759 reference match only the start of product selection in a Hatz 3L30C dealer sourcing program?

Use the complete alternate number, not a shortened series, and attach photographs of the removed unit. The S0759 group is acceptable only when 12V, 3.0kW, 11T, CW and the physical interface agree. A reference conflict should be clarified before samples or bulk quantities are released.

Which details separate S0759 from similar starters used around Hatz 3L30C industrial-engine during dealer sourcing?

For S0759, ask the workshop for the removed starter label and the exact equipment record. Match 12V, 3.0kW, 11T and CW, then compare the locating diameter, mounting holes and terminals. If one of those items changes, request another quotation instead of accepting the similar housing.

What workshop readings are useful when diagnosing a starting complaint involving S0759 during a Hatz 3L30C dealer electrical check?

Load-test the battery set and measure voltage drop on the positive and ground circuits while cranking. Inspect cable lugs, chassis grounds, the start-control signal and ring-gear condition before replacing S0759. These checks distinguish a starter fault from low battery capacity, resistance or a control-circuit problem.

Why is a straight mounting-face photo useful for confirming S0759 during a Hatz 3L30C dealer inspection?

Align the removed starter and S0759 at the mounting face. Compare Ø82.5 mm locating diameter, Ø105 mm mounting-hole circle, 2 mounting holes shown as 13.5, 13.5 mm and 22 mm drive-end distance. Use the drawing for dimensions, measure with suitable tools and check terminals separately.

Can urgent service demand and routine S0759 replenishment share one enquiry in a Hatz 3L30C dealer program?

Separate planned maintenance demand from breakdown coverage and new-account stock. Share the number of supported machines, recent S0759 usage, transfer time between branches and the desired reserve. The resulting order can combine immediate units and scheduled replenishment while keeping the application and physical specification clearly identified.

How can a buyer quarantine a mismatched S0759 unit quickly during a Hatz 3L30C dealer receiving check?

For S0759, count the cartons, compare labels and inspect selected units for flange, pinion and terminal damage. The sample should match 2 mounting holes shown as 13.5, 13.5 mm, Ø82.5 mm locating diameter and the specified 11T drive. Hold any exception outside normal inventory until purchasing and the supplier agree on the correct disposition.

What should be included in a wholesale enquiry for S0759 in a Hatz 3L30C dealer sourcing program?

Send the complete OE number, exact Hatz 3L30C industrial-engine details, removed-unit photographs, quantity and destination. Add the required arrival date, carton marking, payment preference and any sample request. Elecdura can then quote the specified 12V 3.0kW 11T CW starter with packing, lead time, warranty and freight options.

S0759 Ask for Starter Motor Export Pricing

To discuss S0759 supply, send the complete application and old-unit identification, mounting-face and terminal photos, requested quantity, destination and timing to info@elecdurauto.com. The reply will address the specified starter, sample or bulk availability, export packing, commercial terms and delivery route.
