S0919S Hatz 2M40 Starter Motor Wholesale Supply

S0919S Starter Motor B2B Fitment Guide for Hatz 2M40 industrial-engine

Hatz engine distributors, industrial-equipment repairers and starter importers can source S0919S for Hatz 2M40 industrial-engine. Preserve the 11T pinion and 24V 3.2kW 11T module-3 catalog configuration; do not substitute by engine family or housing appearance alone.

For the first S0919S order, include the removed-unit label, application details and straight photographs of the drive end and terminals. Quantity, destination, delivery target and any private-label requirement complete the commercial brief and reduce the risk of pricing a related but physically different starter.

S0919S Starter Motor Specification Table for B2B Sourcing

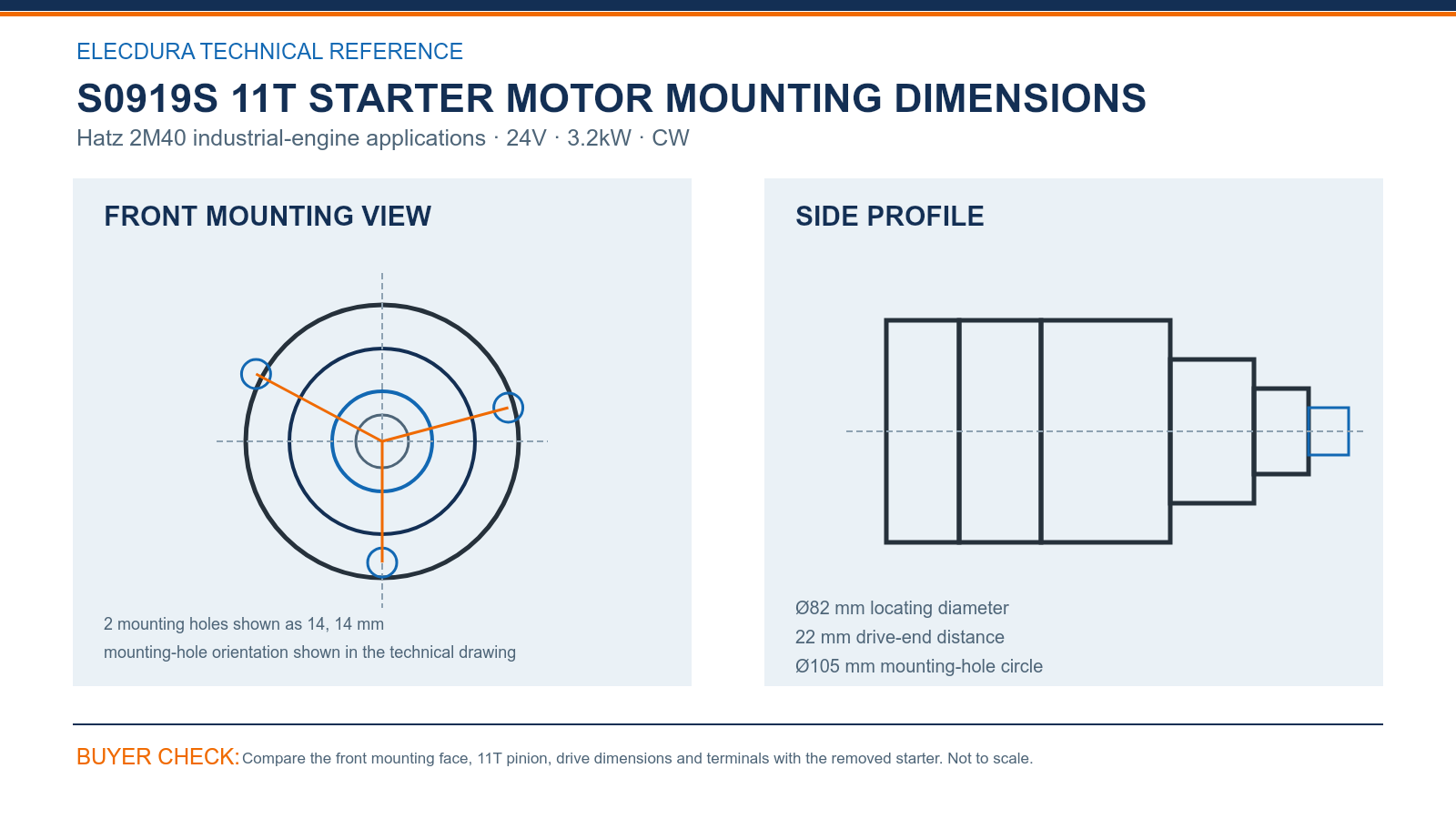

Use the S0919S technical drawing to check Ø82 mm locating diameter, 22 mm drive-end distance and Ø105 mm mounting-hole circle. Add the 2 mounting holes shown as 14, 14 mm to the receiving sheet. These are practical controls for an approved sample because they can be measured before the starter is installed or released to branch stock.

Complete the S0919S comparison with 24V, 3.2kW, the 11T drive, module 3 and CW rotation. Review pinion condition, terminal location and available cable clearance together. These controls prevent a valid OE search result from being treated as automatic physical interchangeability.

S0919S Starter Motor Cross-Reference Review for Fleet Buyers

1. Search group: S0919S, 0001363121, 0001368046, 0001368054, STB2309, LRS02211, LRS2211 can help distributor teams locate the relevant starter family.
2. Order boundary: Confirm the complete reference with 24V, 3.2kW, 11T, CW, the drawing and terminal photographs before accepting one physical unit.

S0919S Starter Motor Fleet Supply and Replenishment Support

Wholesale planning for S0919S can cover a sample stage, routine replenishment and urgent service demand. Elecdura normally works from 20 pieces, confirms a 7–15 day lead time after order approval and provides an 18-month warranty under the agreed commercial terms.

For multi-branch supply, show which quantity is needed immediately and which can follow as planned replenishment. The accepted S0919S sample, dimensional record and terminal photographs can then support carton marking, receiving checks and repeat orders across the customer’s network.

The video introduces Elecdura starter-motor assembly and electrical testing for B2B supply programs. Selection of S0919S remains tied to the stated Hatz 2M40 industrial-engine application, 11T drive, mounting interface and terminals, while the video helps distributor teams review production and testing capability.

S0919S Starter Motor Questions from Commercial Buyers

Why is a straight mounting-face photo useful for confirming S0919S during a Hatz 2M40 dealer inspection?

Align the removed starter and S0919S at the mounting face. Compare Ø82 mm locating diameter, Ø105 mm mounting-hole circle, 2 mounting holes shown as 14, 14 mm and 22 mm drive-end distance. Use the drawing for dimensions, measure with suitable tools and check terminals separately.

Can urgent service demand and routine S0919S replenishment share one enquiry in a Hatz 2M40 dealer program?

Separate planned maintenance demand from breakdown coverage and new-account stock. Share the number of supported machines, recent S0919S usage, transfer time between branches and the desired reserve. The resulting order can combine immediate units and scheduled replenishment while keeping the application and physical specification clearly identified.

Why does S0919S require a physical comparison for Hatz applications during dealer sourcing?

For S0919S, ask the workshop for the removed starter label and the exact equipment record. Match 24V, 3.2kW, 11T and CW, then compare the locating diameter, mounting holes and terminals. If one of those items changes, request another quotation instead of accepting the similar housing.

Do all references listed with S0919S identify an interchangeable unit in a Hatz 2M40 dealer sourcing program?

The references identify a related sourcing family, not automatic interchangeability. Use S0919S, 0001363121, 0001368046, 0001368054, STB2309 to locate possible matches, then confirm 24V, 3.2kW, 11T, CW and the mounting face. Any difference in drive position, terminal layout or locating diameter requires a separate product decision.

How can a service team rule out cable or battery faults before fitting S0919S during a Hatz 2M40 dealer electrical check?

Record battery voltage at rest and during the start attempt, then test both main cables under load. Check grounds, terminal tightness and the control feed to the solenoid. Supplying those readings with an enquiry for S0919S helps the workshop avoid replacing a sound starter when the actual fault is elsewhere.

What carton-to-product checks are appropriate for S0919S during a Hatz 2M40 dealer receiving check?

Use a first-lot sample to confirm S0919S, 24V, 3.2kW, 11T and CW. Inspect the mounting face, terminals and protective packing, then retain the lot reference and images. This gives warehouse and sales teams a shared record before units are distributed to branches or workshops.

Which details allow Elecdura to quote S0919S without delay in a Hatz 2M40 dealer sourcing program?

List S0919S together with the supported equipment record, 24V, 3.2kW, 11T and CW. Send old-unit photos, order volume, destination and requested timing, plus any private-label or staged-delivery requirement. This keeps the technical selection and the commercial offer aligned from the first response.

How can a distributor prepare a complete claim file for S0919S in a Hatz 2M40 dealer review?

For S0919S, provide the delivery lot, installation date, operating hours and a clear fault description. Include photographs of the label, pinion, mounting face and terminals, together with battery and voltage-drop results under cranking load. These records help separate product condition from application, installation, electrical-system or transport-related causes.

S0919S Request Starter Motor Wholesale Pricing

To discuss S0919S supply, send the complete application and old-unit identification, mounting-face and terminal photos, requested quantity, destination and timing to info@elecdurauto.com. The reply will address the specified starter, sample or bulk availability, export packing, commercial terms and delivery route.
