S5047 Mitsubishi 6D22 Kobelco Starter Motor Wholesale

S5047 Mitsubishi 6D22 Starter Motor Supply for Kobelco Distributors

Kobelco excavator-parts distributors often receive this requirement under S5047, M3T95071 or an ME-series Mitsubishi number. Linking the reference to the Mitsubishi 6D22 engine and the 24V 5.5kW 13T configuration gives the sales team a clear product identity before it quotes replacement or branch stock.

The cross-reference group also contains Hyundai-format numbers, but those numbers do not by themselves turn every enquiry into a Hyundai application. The stated buying scope is Mitsubishi 6D22 in Kobelco equipment; the removed starter still needs to agree on pinion, mounting triangle, drive-end depth and terminal position.

S5047 24V Starter Motor Specifications and Mounting Drawing

The product specification combines 24V, 5.5kW, thirteen teeth, module 3.5 and clockwise rotation. Keeping the complete set on the quotation and receiving label helps distributors separate this heavy-duty unit from similar Mitsubishi starters that share a housing family but use another pinion or mounting relationship.

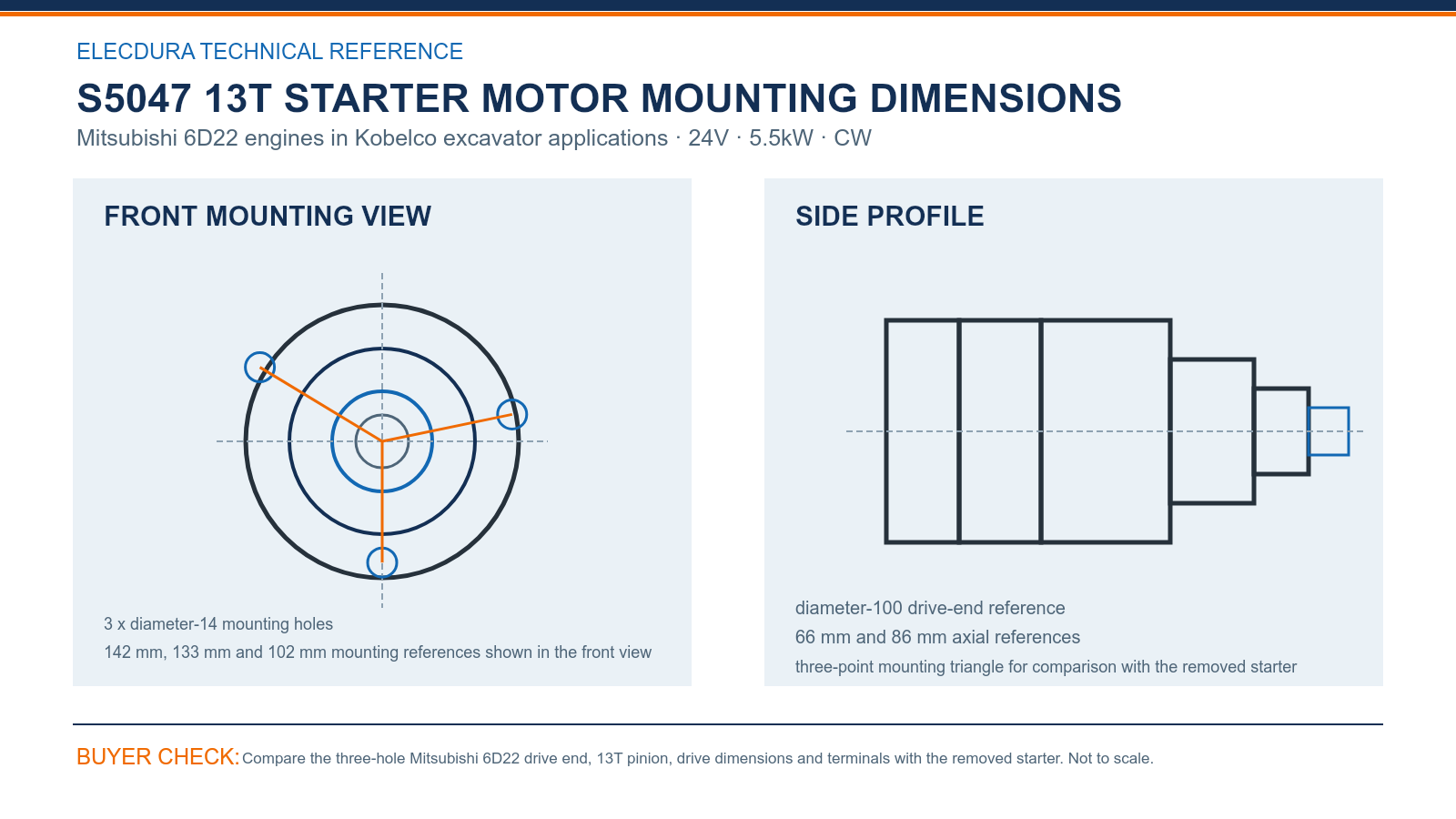

S5047 Mitsubishi 6D22 Starter Drawing for Kobelco Buyers - compare the drawing with the removed starter before placing a volume order.

Use the three diameter-14 mounting holes as the first visual checkpoint, then compare the diameter-100 drive-end reference, 66 mm and 86 mm axial values, and the 142 mm, 133 mm and 102 mm mounting references. Straight front and side photographs of the removed unit make the drawing comparison practical for remote enquiries.

S5047 Starter Motor OE Cross Reference for Wholesale Buyers

S5047 is the primary commercial reference for quotations, while M3T95071, M3T95072, M3T95073, M3T95081, M3T95082 and the listed ME numbers support cross-reference searches. Record the exact number found on the old starter so purchasing and warehouse teams can trace how the match was approved.

The stated application is the Mitsubishi 6D22 diesel engine in Kobelco equipment within the 1994-1999 range. Buyers should keep the machine model and serial, engine plate and removed-unit images with the order because equipment updates and prior repairs can change the starter fitted to an individual machine.

S5047 Kobelco Starter Motor Stock Planning and Factory Video

For a first wholesale order, check units from more than one carton for the 13T pinion, three-hole mounting face, drive-nose condition, solenoid orientation and protected terminals. Retaining an approved image set and lot record gives branches a practical reference for replenishment and after-sales identification.

The Elecdura video introduces starter-motor assembly and electrical testing for export supply. Kobelco and Mitsubishi engine-parts buyers can use it to review production capability while the S5047 purchase remains defined by the OE group, 24V 5.5kW rating and measured interface shown above.

S5047 Starter Motor FAQs for Kobelco Parts Buyers

Which Kobelco details help Elecdura quote S5047 accurately?

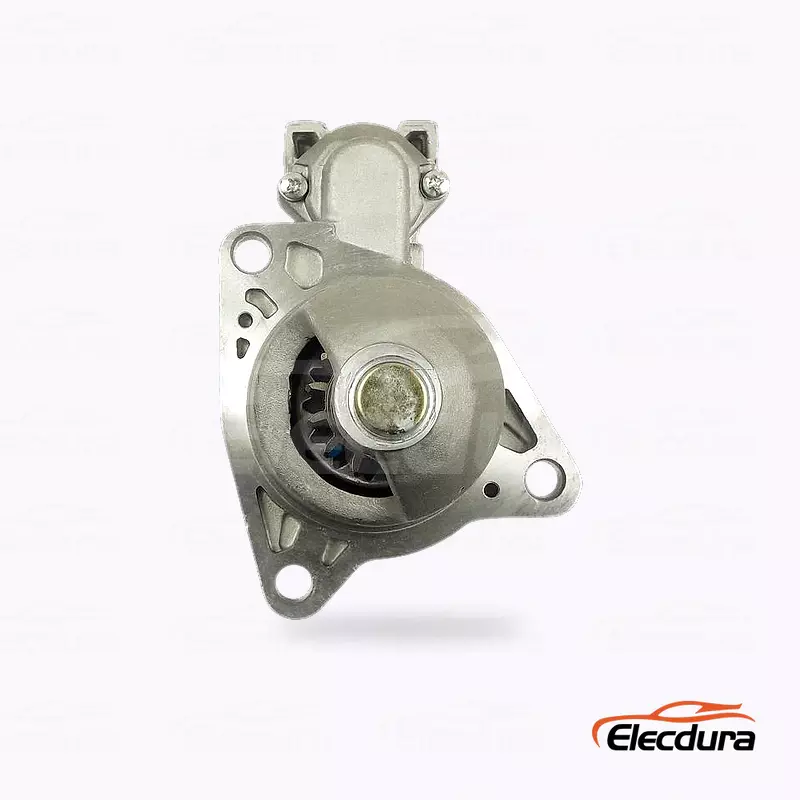

Send the excavator model and serial number, the Mitsubishi 6D22 engine plate, and every readable number on the removed starter. Add square photographs of the drive end, side profile and terminals. These details let the sales team compare the stated application and physical interface before preparing price and delivery terms.

Which references should a distributor place on an S5047 order?

Use S5047 as the primary commercial reference and include the number found on the removed unit, such as M3T95071 or ME057350. Keep the complete accepted OE group in the purchasing record, but put the verified old-unit number on the quotation and carton label so the warehouse can identify the approved match.

Do 3610083010 or 3610084050 prove a Hyundai application?

No. They belong to the wider cross-reference group, but a cross-reference alone does not establish the host machine for this product. Confirm the actual equipment, Mitsubishi 6D22 engine, 13T pinion, mounting face and terminals. The stated application is Kobelco, while Hyundai-format numbers are retained only for part-number matching.

Why should 13T and module 3.5 be checked together?

Thirteen teeth describe the pinion count, while module 3.5 identifies the gear size and engagement relationship. A starter may share the general Mitsubishi housing pattern but use another gear. Recording both values with clockwise rotation prevents a visually similar unit from being accepted on pinion count alone.

Which drawing references distinguish the S5047 mounting face?

Compare all three diameter-14 mounting holes, the diameter-100 drive-end reference, and the 66 mm and 86 mm axial values. The front drawing also shows 142 mm, 133 mm and 102 mm mounting references. Use a straight drive-end photograph so the hole pattern is reviewed without perspective distortion.

What should receiving inspect on the first S5047 shipment?

Sample units from different cartons and compare the 24V 5.5kW identification, thirteen-tooth pinion, three-hole mounting face, solenoid orientation and terminal protection with the approved images. Check the drive nose and studs for impact or moisture damage, then record the accepted lot before stock is distributed to branches.

What checks help separate a starter fault from a machine fault?

Load-test the 24V battery bank, measure voltage drop across positive and ground cables during cranking, and verify the start signal and relay operation. Inspect the ring gear and cable connections as well. Supplying these readings with the claim gives the distributor useful evidence for warranty review instead of relying only on a no-crank description.

What information is needed for an S5047 wholesale quotation?

Provide the Kobelco application, Mitsubishi 6D22 engine record, removed-starter reference and photographs, order quantity, annual demand, packaging requirement, destination and requested delivery date. State whether the units are for immediate repair stock or scheduled replenishment so Elecdura can return suitable pricing, lead time and shipping terms.

Request S5047 Mitsubishi 6D22 Starter Motor Pricing

Email the Kobelco machine model and serial, Mitsubishi 6D22 engine details, readable starter references, drive-end and terminal photographs, required quantity, packing preference and destination to info@elecdurauto.com. Elecdura will review the S5047 configuration and reply with wholesale pricing, lead time and shipping terms.
