14123
Automotive hydraulic valve service using reference 14123 and the matching rectangular coil body
Confirm 12v, 29.4w, insert connector, coil bore and retaining method before installation.
| Quantity: | |
|---|---|

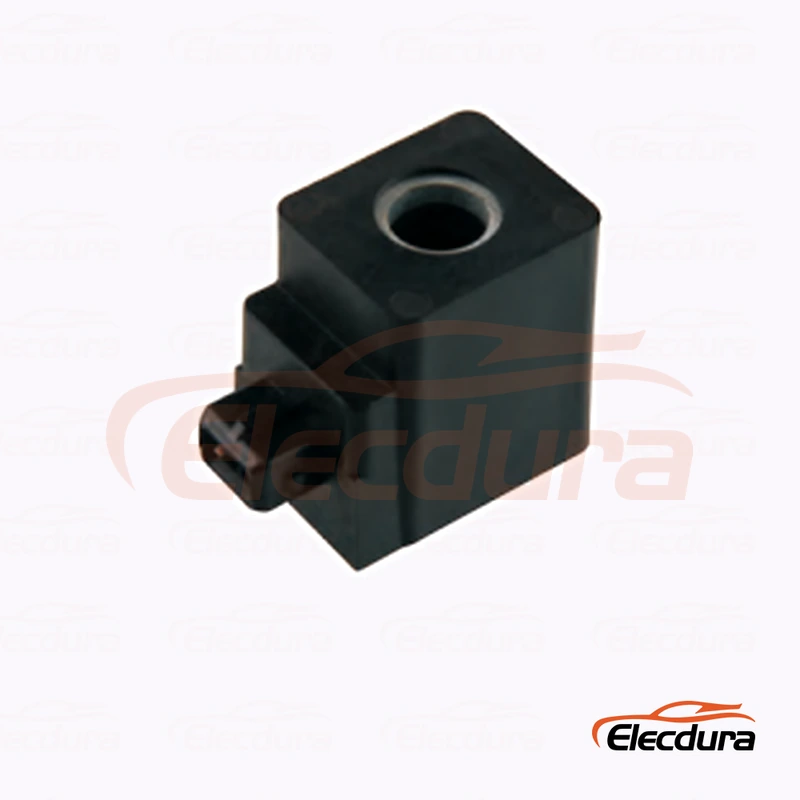

14123 is a rectangular hydraulic solenoid coil for Automotive hydraulic valve service using reference 14123 and the matching rectangular coil body. Buyers should confirm the full reference, 12v, insert connector, coil bore and body construction before approving replacement stock.
Specification | Confirmed Information |
|---|---|
Product Type | Rectangular Hydraulic Solenoid Coil |
Primary Reference | 14123 |
Cross References | 14123 |
Voltage | 12V |
Power | 29.4W |
Connector | Insert connector |
Insulation Class | F/H |
Application Scope | Automotive hydraulic valve service using reference 14123 and the matching rectangular coil body |
MOQ | 50 pcs |
Delivery Time | 7 to 15 Days |
Warranty | 12 Months |
Complete every control point below before a sample or bulk order is released.
Approval Point | Buyer Review |
|---|---|
Reference | 14123 |
Electrical | 12V; 29.4W; verify under load |
Connector | Insert connector |
Mechanical | Compare bore, height, body shape and retaining method |
Machine Evidence | Automotive hydraulic valve service using reference 14123 and the matching rectangular coil body |
Separate electrical command, component movement and final machine response so the actual wiring or hydraulic fault is not hidden by parts replacement.
Observed Condition | Recommended Check |
|---|---|
No magnetic pull | Check loaded voltage, ground, continuity and coil resistance. |
Intermittent operation | Inspect terminal retention, lead damage and heat-related winding faults. |
Excessive heating | Confirm voltage, wattage, duty cycle and free valve-stem movement. |
Connector damage | Inspect keying, seals, corrosion and harness side loading. |
Correct coil, no hydraulic response | Inspect the armature, spool, oil cleanliness and machine command. |
When an incoming production lot is released, keep the verified measurements and test result in the service record. Approve the complete old marking, 12v rating, 29.4w power reference, insert connector, coil bore, body height and retaining method. A matching voltage alone does not prove fit. Send straight-on connector, top-bore and side-profile photographs with measurements so the replacement is selected from electrical and mechanical evidence.
When a controller output fault is suspected, keep the verified measurements and test result in the service record. Measure voltage directly across the energized coil while the machine issues the real hydraulic command. An unloaded harness reading can hide resistance at a corroded terminal, relay or ground path. Compare the loaded result with 12v, record polarity where suppression is present and correct the circuit before blaming a new coil for weak magnetic pull.
When the approved sample and new lot are compared, keep the verified measurements and test result in the service record. Power affects current draw, heat generation and available magnetic force. A replacement with another wattage may fit the valve stem yet operate too weakly, run hotter or exceed a controller output. Confirm 29.4w from the old label or approved specification, then compare warm current and temperature during sample testing before releasing a bulk order.
When a machine harness revision is compared, keep the verified measurements and test result in the service record. Measure the internal bore diameter, overall height, outside width, shoulder position and retaining-nut clearance on the removed coil. Also record valve-stem length and connector orientation after installation. A coil can have the correct electrical rating but fail to seat fully or interfere with surrounding hardware when its mechanical envelope differs.
When warehouse stock must remain voltage-separated, keep the verified measurements and test result in the service record. Install one sample on the correct valve stem, confirm connector engagement and retaining clearance, then record cold current, warm current, operating temperature and hydraulic response through several command cycles. Compare results with the removed coil. Retain the approved sample and test sheet so later lots can be inspected against the same acceptance criteria.
When cold-start commissioning is completed, keep the verified measurements and test result in the service record. Insulation class is one indicator of winding temperature capability, but it does not authorize overvoltage, blocked armature operation or continuous duty beyond the product design. Keep the catalogued class with voltage and wattage records. During sample testing, confirm actual stabilized temperature under the intended command cycle and installation environment.
When a valve body was replaced during an earlier repair, keep the verified measurements and test result in the service record. Inspect the latch, cavity seals and terminal surfaces before connection. Keep moisture, hydraulic oil and cleaning chemicals away from the contact area, and never force a mismatched plug into the housing. After installation, confirm the connector locks without side loading and that nearby hardware does not press on the coil or cable exit.
Send the complete old marking or component evidence, confirmed voltage, machine information, clear photos, measurements and required quantity for a fitment-focused B2B quotation.
