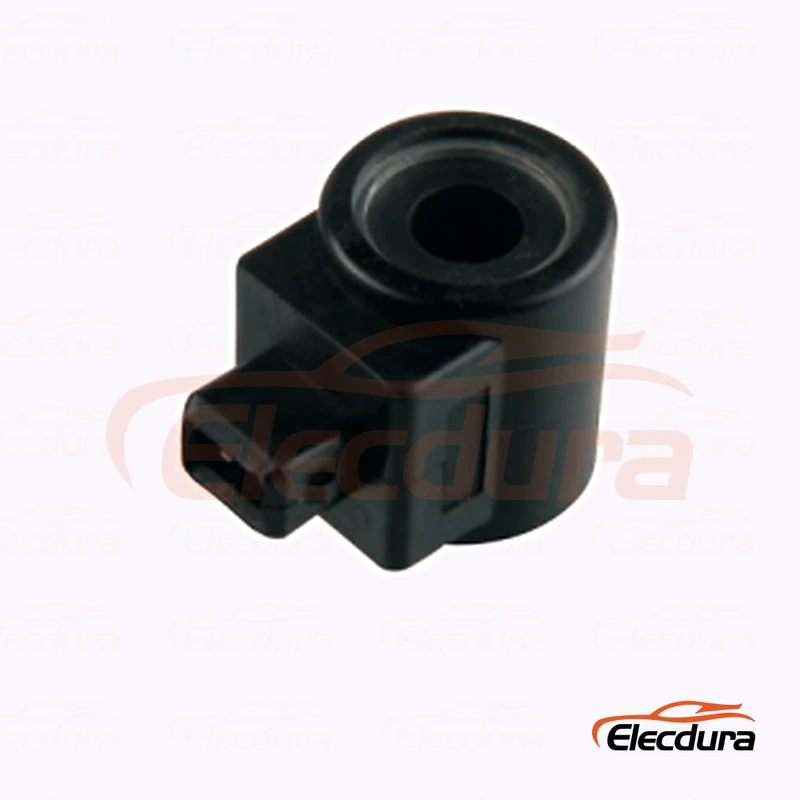

20811209 12V Universal Compact Molded Hydraulic Solenoid Coil for Heavy Equipment B2B Supply

20811209 Compact Molded Hydraulic Solenoid Coil Supplier for B2B Replacement

20811209 is a compact molded hydraulic solenoid coil for Automotive hydraulic valve service using the compact molded 20811209 coil construction. Buyers should confirm the full reference, 12v, molded lead connector, coil bore and body construction before approving replacement stock.

20811209 Compact Molded Hydraulic Solenoid Coil Specifications for Wholesale Buyers

20811209 Heavy Equipment Solenoid Coil Matching Guide

Complete every control point below before a sample or bulk order is released.

20811209 Solenoid Coil Electrical Service Diagnostics

Separate electrical command, component movement and final machine response so the actual wiring or hydraulic fault is not hidden by parts replacement.

20811209 Compact Molded Hydraulic Solenoid Coil Technical FAQ

Which details must match before ordering the 20811209 coil when an old label is partly unreadable?

When an old label is partly unreadable, keep the verified measurements and test result in the service record. Approve the complete old marking, 12v rating, 8w power reference, molded lead connector, coil bore, body height and retaining method. A matching voltage alone does not prove fit. Send straight-on connector, top-bore and side-profile photographs with measurements so the replacement is selected from electrical and mechanical evidence.

How should supply voltage be checked for the 20811209 coil when a valve body was replaced during an earlier repair?

When a valve body was replaced during an earlier repair, keep the verified measurements and test result in the service record. Measure voltage directly across the energized coil while the machine issues the real hydraulic command. An unloaded harness reading can hide resistance at a corroded terminal, relay or ground path. Compare the loaded result with 12v, record polarity where suppression is present and correct the circuit before blaming a new coil for weak magnetic pull.

Why does the 8W power reference matter for 20811209 when a machine returns after long storage?

When a machine returns after long storage, keep the verified measurements and test result in the service record. Power affects current draw, heat generation and available magnetic force. A replacement with another wattage may fit the valve stem yet operate too weakly, run hotter or exceed a controller output. Confirm 8w from the old label or approved specification, then compare warm current and temperature during sample testing before releasing a bulk order.

What should be checked if 20811209 becomes unusually hot when an old label is partly unreadable?

When an old label is partly unreadable, keep the verified measurements and test result in the service record. Verify loaded supply voltage, current draw, duty cycle, connector resistance and whether the hydraulic armature reaches full travel. A stuck valve can keep magnetic demand high, while overvoltage or the wrong wattage can overheat the winding. Inspect oil contamination and valve movement before replacing the coil again so the root cause is corrected.

Why must polarity be checked on the 20811209 connector when a return analysis starts without machine records?

When a return analysis starts without machine records, keep the verified measurements and test result in the service record. A plain winding may operate with either polarity, but a coil containing a diode or other suppression device can be polarity-sensitive. Reversed connection may prevent correct operation or damage the suppression component. Check markings and the equipment schematic before applying power, and keep pin assignments with the approved sample and production inspection record.

Can 20811209 be replaced without inspecting the valve stem when export packing is approved?

When export packing is approved, keep the verified measurements and test result in the service record. No. The coil produces magnetic force but the armature and hydraulic element must move freely. Inspect the stem for corrosion, contamination, impact damage and correct retaining hardware. If the valve remains stuck, a new coil may heat or appear weak even when its electrical condition is normal, leading to repeated unnecessary replacement.

How should an insert or molded connector on 20811209 be protected when a new supplier lot enters dimensional inspection?

When a new supplier lot enters dimensional inspection, keep the verified measurements and test result in the service record. Inspect the latch, cavity seals and terminal surfaces before connection. Keep moisture, hydraulic oil and cleaning chemicals away from the contact area, and never force a mismatched plug into the housing. After installation, confirm the connector locks without side loading and that nearby hardware does not press on the coil or cable exit.

Request a Bulk Quote for 20811209 Compact Molded Hydraulic Solenoid Coil

Send the complete old marking or component evidence, confirmed voltage, machine information, clear photos, measurements and required quantity for a fitment-focused B2B quotation.
