23300-VK500 Nissan Navara D22 Starter Motor Wholesale

23300-VK500 Nissan Navara Starter Wholesale for Pickup Fleets

Navara D22 and NP300 vehicles often work across rural routes, field service and construction sites where a no-start event is expensive to recover. Parts buyers should state the exact pickup, model year and YD25DDTi details so the quotation reflects the correct 12T version and the intended service coverage.

This product uses a 12T module-3.175 drive with two M10 × 1.5 threaded mounting points. Do not merge it with the 11T 23300-5X00A family merely because both are 12V 2.2kW Nissan YD25 starters.

23300-VK500 12T Starter Dimensions for Distributor Verification

Keep 12V, 2.2kW, 12T, module 3.175 and CW beside 23300-VK500 on every commercial document. The complete line helps branch staff and workshop buyers recognize the D22/NP300 starter before fitment work begins.

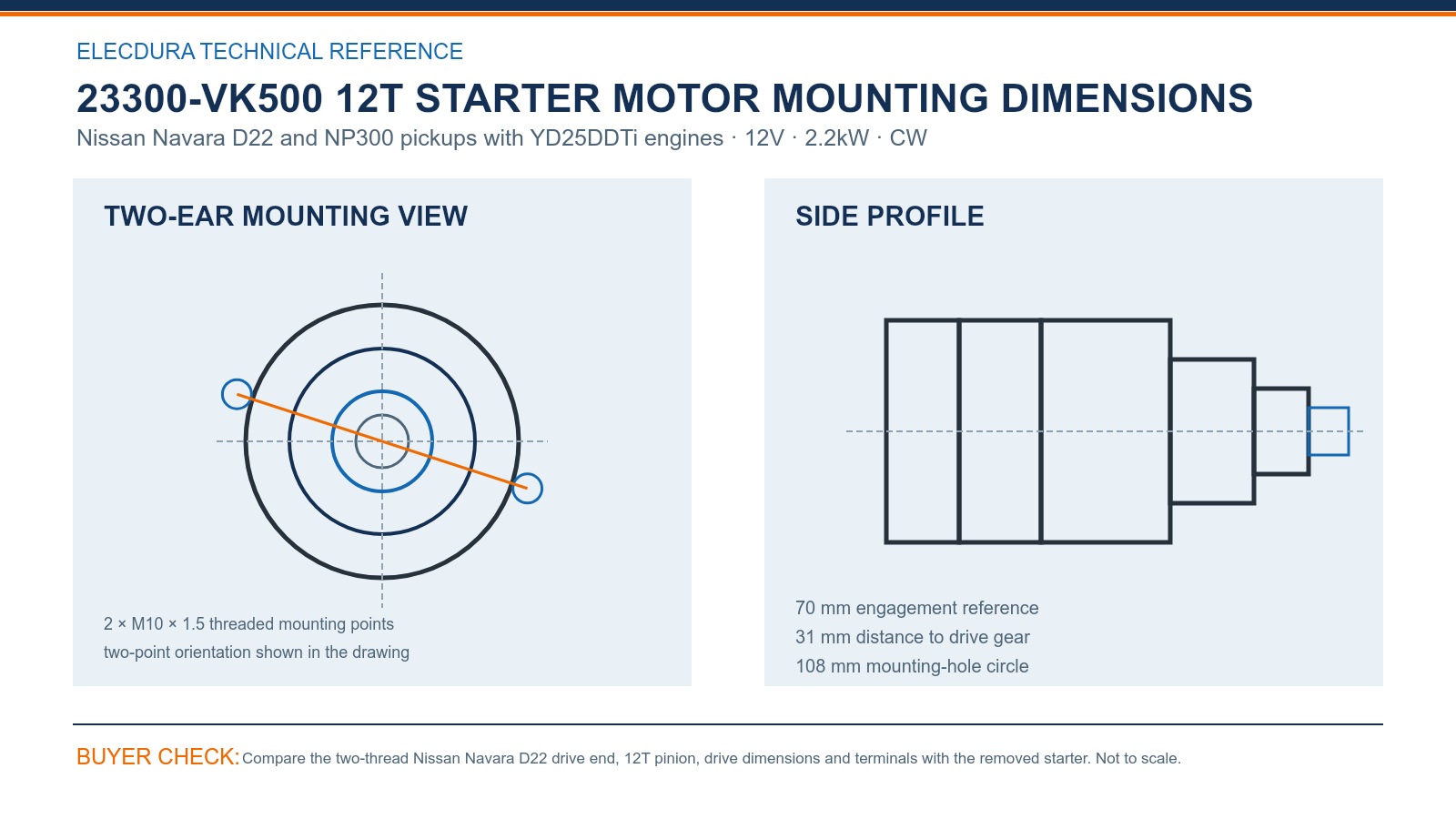

23300-VK500 Nissan Navara D22 Starter Drawing for Wholesalers — compare the drawing with the removed starter before placing a volume order.

Use the drawing to compare the 70 mm engagement reference, 31 mm drive distance, 108 mm circle and both threaded points. Ask the workshop to photograph the front face without the pinion hidden and include a terminal view that shows connector direction.

23300-VK500 M002TS0571 OE Matching for YD25 Buyers

23300-VK50A, 23300-VM00A, 23300-WK500, M002TS0571 and 32715N are common routes into this family. Pair them with the D22 or NP300 vehicle and 12T pinion rather than assuming every listed number describes every YD25 application.

Regional wholesalers can forecast 23300-VK500 by confirmed D22 and NP300 workshop demand, then reserve urgent stock for remote customers. Maintain the vehicle notes and accepted mounting-face photo with the bin so the 12T family is not mixed with the adjacent 11T Nissan group.

23300-VK500 D22 Starter Supply Checks for Volume Orders

Inspect the threaded mounting points for damage, count twelve teeth and check pinion, solenoid studs and connector housing across sampled cartons. For export orders, ensure the heavy nose and terminal end cannot move against the carton during repeated handling.

The Elecdura video shows starter production and electrical testing relevant to distributor programs. Use it to align sample inspection, shipment labeling and packaging expectations before a Navara D22 order moves into regular replenishment.

23300-VK500 Starter FAQs for Nissan Navara D22 Wholesalers

Which D22 or NP300 details should accompany 23300-VK500?

Name the Navara D22 or NP300 variant, model year, drivetrain and VIN, and include the YD25DDTi engine details. Photograph the removed starter's two-thread mounting face, twelve-tooth pinion and connector side. Add all readable references, requested quantity and destination so the enquiry can be matched and priced without relying on a broad Nissan description.

Why should 23300-VK500 not be merged with 23300-5X00A?

23300-VK500 is defined here by a 12T module-3.175 drive and two M10 × 1.5 threaded mounting points. The 23300-5X00A product uses eleven teeth and includes a third open hole. Their shared 12V 2.2kW rating is not enough to combine them; the pinion and mounting face must remain separate.

What should be verified on the two-thread mounting face?

Inspect both M10 × 1.5 threads for damage and compare their orientation on the 108 mm circle. The drawing also gives a 70 mm engagement reference and 31 mm distance to the drive gear. A square face image and pinion-side measurement are more dependable than judging the starter from its cylindrical body.

How should M002TS0571 and 23300-WK500 support sourcing?

M002TS0571 and 23300-WK500 are strong search routes into the 23300-VK500 family and help distributors reconcile cross-reference listings. They still need to be tied to a D22 or NP300 vehicle and the 12T two-thread geometry. Record the matching numbers together rather than replacing the Nissan OE with one aftermarket code.

How can remote Navara workshops plan reserve quantity?

Review the number of confirmed D22 or NP300 vehicles, distance to the nearest parts depot and typical recovery time after a no-start. A remote workshop may justify one immediate spare, while a regional wholesaler holds central replenishment stock. Use actual YD25 customer demand instead of counting all Nissan pickups in the service area.

Which packing points protect 23300-VK500 during export freight?

The nose housing and solenoid studs need separate fitted protection so the heavy starter cannot shift against the carton. Inspect thread covers, pinion restraint and body support before export. For pallet shipments, sample edge and center cartons after handling, because vibration or compression can damage terminals even when the outer packaging appears intact.

What checks help avoid a false warranty return on a D22 starter?

Measure battery cranking voltage and cable voltage drop, including the engine-ground path, before removing the starter. Check relay output, solenoid trigger voltage, cable-terminal tightness and ring-gear condition, then confirm that the engine turns freely. A weak battery or corroded connection can imitate a failed 23300-VK500 and create an avoidable warranty claim.

What makes a 23300-VK500 wholesale enquiry actionable?

Send the D22 or NP300 model year, VIN, YD25DDTi details, all 23300-VK500 family references and clear two-thread face, pinion and terminal views. State quantity, annual demand, packaging needs, destination and requested delivery date. Elecdura can then confirm the 12T product identity and return wholesale pricing and lead time.

Request 23300-VK500 Nissan Navara Starter Wholesale Pricing

Email the Navara D22 or NP300 model year, VIN, YD25DDTi details, 23300-VK500 family numbers, front and terminal photographs, quantity and destination to info@elecdurauto.com. Elecdura will return wholesale pricing and lead time.
