S1021 New Holland TX34 Ford Starter Motor Wholesale

S1021 Starter Motor Wholesale Fitment for New Holland TX34 and Ford 6.6L or 7.8L truck

Agricultural dealers, Ford medium-duty parts importers and electrical wholesalers use S1021 to keep New Holland TX34 and Ford 6.6L or 7.8L truck demand tied to one 12V, 4.5kW, 10T CW configuration. The practical distinction is the shared agricultural and Ford-truck drive end requiring model-specific allocation, which should be checked before a similar heavy-duty housing is accepted.

Build the S1021 RFQ around the complete removed-unit number, exact machine or engine information, mounting-face and terminal-side photographs, quantity and delivery point. These details let Elecdura quote the specified starter, export packing and timing without turning the offer into a general application guess.

S1021 Starter Motor Specifications and Drawing for Wholesale Buyers

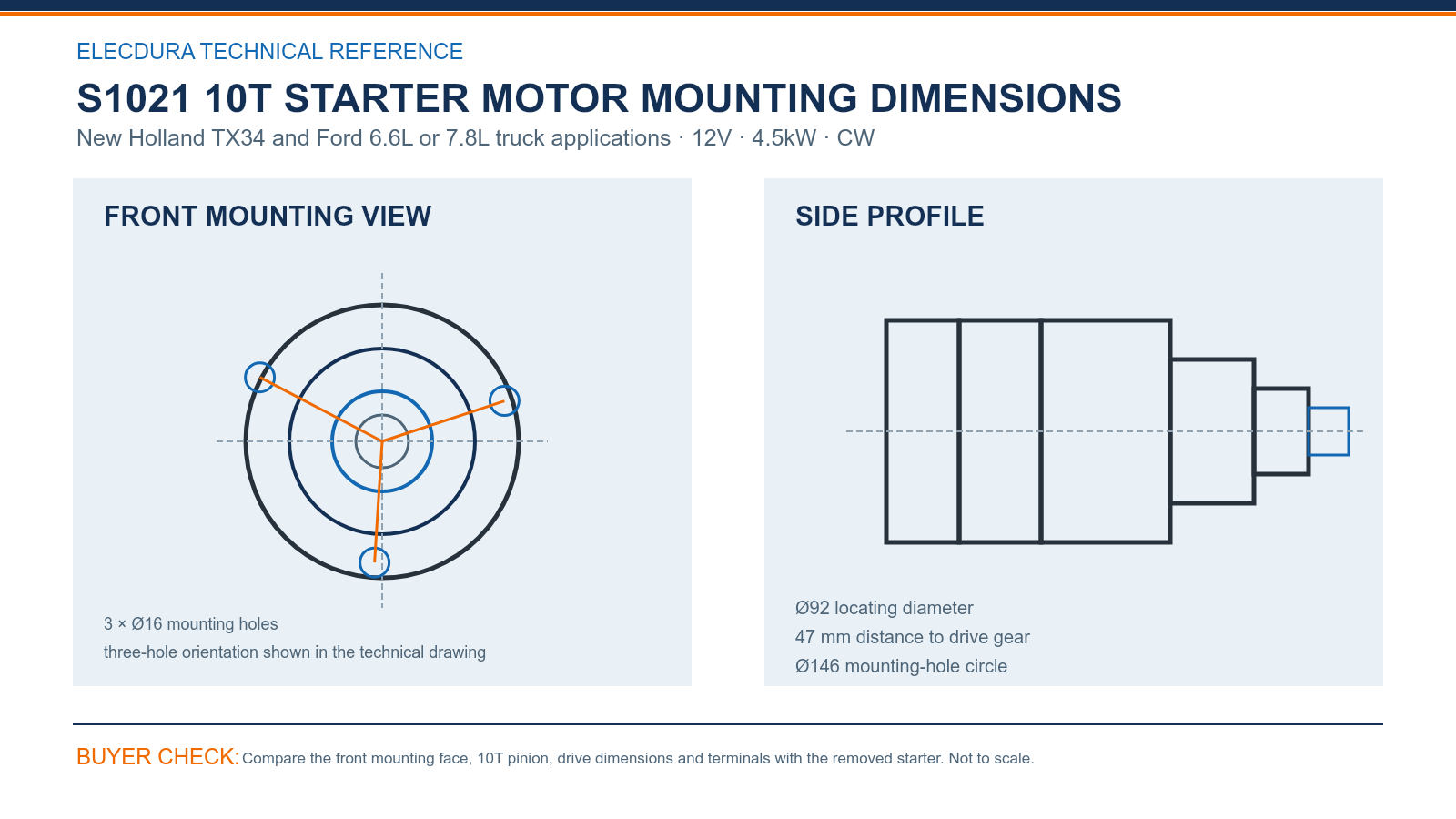

S1021 New Holland TX34 Ford 12V 4.5kW 10T starter dimensions.

Compare S1021 at the 3 × Ø16 mounting holes, Ø146 mounting-hole circle and Ø92 locating diameter. The 47 mm distance to drive gear helps verify where the pinion sits relative to the flange, while a straight terminal-side photograph confirms whether the main and control connections remain accessible after installation.

For S1021, count the 10T pinion and confirm module 3.175, CW rotation, 12V and 4.5kW. The terminal side and solenoid clearance must also agree with the installation. A different pinion or cable position should be quoted separately, even when major cross-references overlap.

S1021 Starter Motor OE Cross-References for Distributor Enquiries

1. Search group: S1021, 3604673RX, 10461006, 10461011, 10461058, 1990347, 1993767 can help distributor teams locate the relevant starter family.

2. Order boundary: Confirm the complete reference with 12V, 4.5kW, 10T, CW, the drawing and terminal photographs before accepting one physical unit.

S1021 Starter Motor Wholesale Supply and Export Planning

Elecdura supports distributor orders from 20 pieces, normally with a 7–15 day lead time after order confirmation and an 18-month warranty under agreed sales terms. Availability, export packing and delivery timing are confirmed against the requested S1021 quantity, destination and required arrival date.

Agricultural buyers should forecast around harvest service windows while truck distributors can use scheduled branch replenishment. Buyers should also state whether the order supports a single workshop, several branches or a fleet contract, allowing samples, safety stock, carton labels and staged dispatch to be planned around the actual service requirement.

The video introduces Elecdura starter-motor assembly and electrical testing for B2B supply programs. Selection of S1021 remains tied to the stated New Holland TX34 and Ford 6.6L or 7.8L truck application, 10T drive, mounting interface and terminals, while the video helps distributor teams review production and testing capability.

S1021 Starter Motor Questions from Commercial Buyers

Before removing S1021, what should the workshop test under load in a New Holland TX34 Ford fleet workshop?

Before fitting S1021, verify battery condition, cable size and voltage drop at cranking current. Clean the mounting ground and inspect the ring gear and control circuit. A slow-crank complaint can come from weak batteries, poor connections or mechanical drag, so those causes should be separated from the starter itself.

What physical controls belong on a first-lot check for S1021 during a New Holland TX34 Ford fleet inspection?

For S1021, use a straight front view to compare the 3 × Ø16 mounting holes and Ø146 mounting-hole circle; use the side view for Ø92 locating diameter and 47 mm distance to drive gear. Complete the check with 10T, CW and terminal orientation. This combination is more reliable than an angled overall photograph alone.

What should a distributor match before ordering S1021 for New Holland TX34 and Ford 6.6L or 7.8L truck during fleet sourcing?

Use the complete removed-unit number and exact New Holland TX34 and Ford 6.6L or 7.8L truck record. Compare the 10T pinion, 3 × Ø16 mounting holes, Ø92 locating diameter and terminal side with the old starter. A housing resemblance is insufficient when the drive position, mounting face or cable connection differs.

What is the safe way to order S1021 from an alternate OE number in a New Holland TX34 Ford fleet sourcing program?

Cross-references help purchasing teams search different brand systems, but the order should still resolve to one physical starter. Compare the candidate number with the S1021 electrical rating, pinion and drawing. Keep unmatched housings, terminal positions or drive ends on separate RFQ lines so the supplier can price them correctly.

How can S1021 stock be separated by application risk in a New Holland TX34 Ford fleet program?

Separate planned maintenance demand from breakdown coverage and new-account stock. Share the number of supported machines, recent S1021 usage, transfer time between branches and the desired reserve. The resulting order can combine immediate units and scheduled replenishment while keeping the application and physical specification clearly identified.

Which first-lot checks protect a distributor receiving S1021 during a New Holland TX34 Ford fleet receiving check?

For S1021, count the cartons, compare labels and inspect selected units for flange, pinion and terminal damage. The sample should match 3 × Ø16 mounting holes, Ø92 locating diameter and the specified 10T drive. Hold any exception outside normal inventory until purchasing and the supplier agree on the correct disposition.

Which commercial details belong in an export enquiry for S1021 in a New Holland TX34 Ford fleet sourcing program?

Send the complete OE number, exact New Holland TX34 and Ford 6.6L or 7.8L truck details, removed-unit photographs, quantity and destination. Add the required arrival date, carton marking, payment preference and any sample request. Elecdura can then quote the specified 12V 4.5kW 10T CW starter with packing, lead time, warranty and freight options.

Which photographs and readings help Elecdura review S1021 after installation in a New Holland TX34 Ford fleet review?

Keep the carton or product traceability code and note when and where S1021 was installed. A review should include symptoms, operating time, old and replacement-unit photographs, cable and battery readings and any ring-gear observations. Complete evidence allows technical support to respond without repeated requests for basic information.

S1021 Request Starter Motor Wholesale Pricing

Send the complete S1021 reference, New Holland TX34 and Ford 6.6L or 7.8L truck details, removed-unit label and photographs, quantity, destination and required arrival date. Email info@elecdurauto.com to discuss the specified 12V, 4.5kW, 10T CW starter, MOQ, packing, lead time, warranty and freight.
