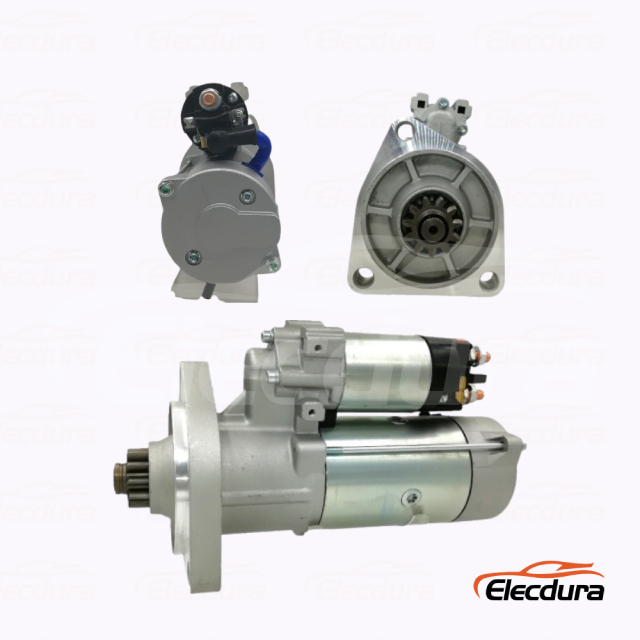

The 2900RD is a 24V, 8.5kW aftermarket starter with an 11-tooth, 48 mm pinion for Nissan RD8 and RD10 applications. It uses replacement reference 23300-97002 and a Ø122 mm mounting register.
| Quantity: | |
|---|---|
The 2900RD is a 24V, 8.5kW aftermarket starter with an 11-tooth, 48 mm pinion for Nissan RD8 and RD10 applications. It uses replacement reference 23300-97002 and a Ø122 mm mounting register.
24V
8.5kW
11 teeth
48 mm pinion
| Specification | 2900RD |
|---|---|
| Configuration code | 2900RD |
| Rated power | 8.5kW |
| System voltage | 24V |
| Pinion teeth | 11 |
| Pinion outside diameter | 48 mm |
| Mounting register diameter | Ø122 mm |
| Mounting holes | 3 × Ø15.5 mm |

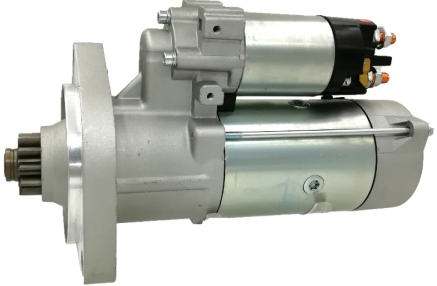

Drive-end and flange view

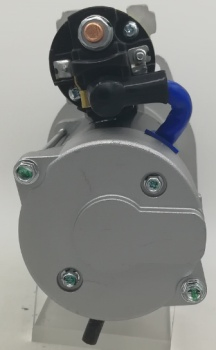

Rear and solenoid connections
For RD8 and RD10 engine applications using the matching 23300-97002 starter arrangement. The associated Nissan chassis references are CW50, CW51, CW53, CW60 and CK50.
| Application group | References |
|---|---|
| Engine | RD8; RD10 |
| Chassis | CW50; CW51; CW53; CW60; CK50 |
Confirm the installed starter number together with the engine and chassis details. Compare the flange-hole pattern and cable access before placing a repeat or mixed-model order.

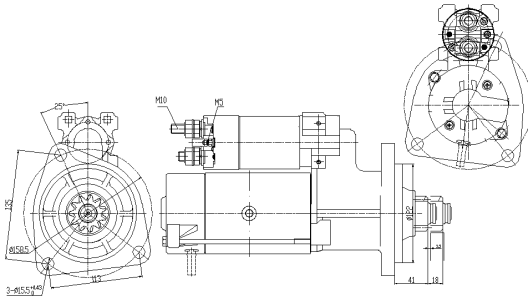

The mounting drawing identifies the Ø122 mm register, three Ø15.5 mm holes and drive-end position. Check the 48 mm pinion outside diameter as well as the 11-tooth count. The side view shows the solenoid position and the clearance needed around its connections.
| Brand | Part number | Type |
|---|---|---|
| Nissan | 23300-97002; 23300-97061; 23300-97064 | Replacement references |
| Hitachi | S210-50; S210-69; S210-70; S210-75B | Cross-references |
| Sawafuji | 0350-602-0020; 0301-702-0220; 0300-602-0311 | Cross-references |
Elecdura supplies aftermarket replacements. The reference brands and numbers identify replacement applications; they do not identify the manufacturer of the supplied product.
Do not select by tooth count alone. This Nissan configuration has a 48 mm pinion and its own flange-hole pattern. The 2900EM Hino configuration has a 47 mm pinion and a different mounting layout.
Use the 23300-97002 reference, 24V system, 8.5kW rating, 11-tooth pinion and Ø122 mm mounting register together, then compare the drawing and terminal positions with the installed unit.

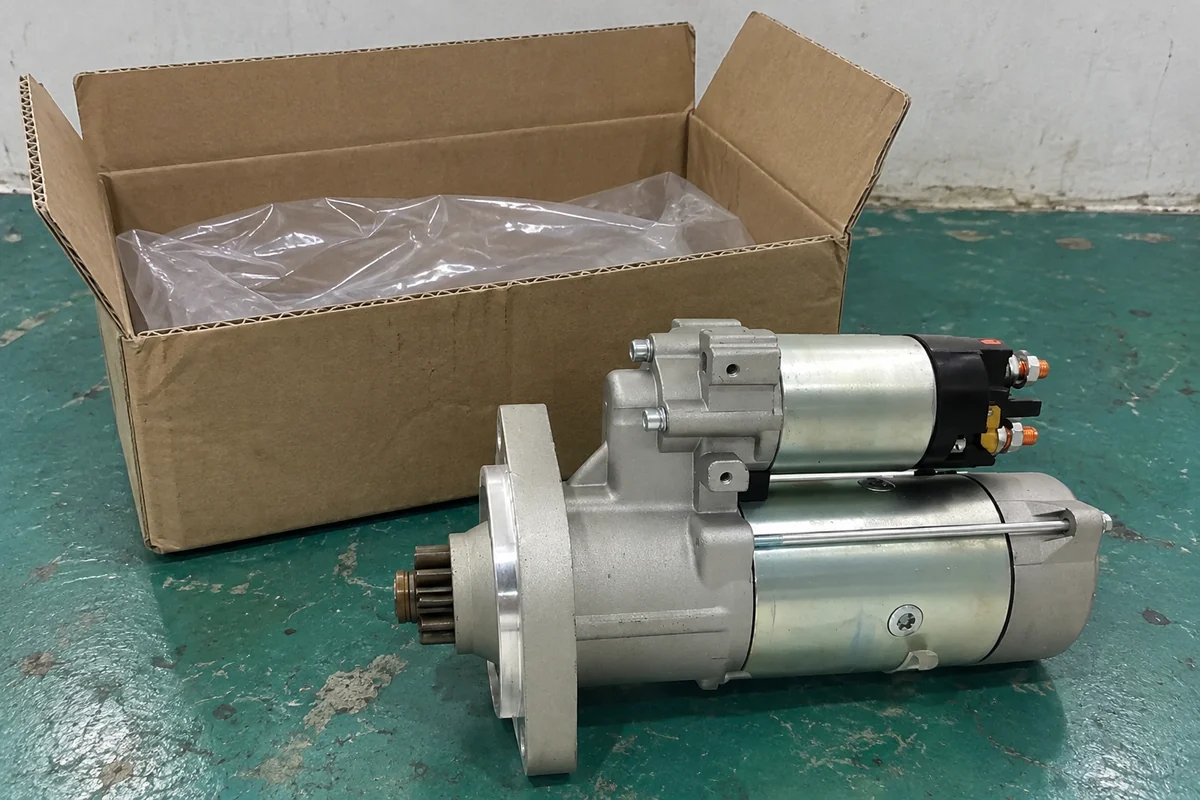

Protective packaging concept · 2900RD · AI-assisted visualization
Request 2900RD / 23300-97002 and state the quantity, RD8 or RD10 engine, chassis reference and destination. Add packaging and label requirements for your wholesale order.
