23300-06J02 Nissan TD42 3.5kW Starter Motor Wholesale

23300-06J02 Nissan TD42 Starter Motor Wholesale for Distributors

TD42 applications span many model years and host vehicles, so buyers should add the vehicle model, chassis and engine record to the 23300-06J02 enquiry. This preserves the actual installation and gives distributors a reliable basis for repeat stock decisions.

S25-158 and related numbers help locate the family, but they do not make every TD42 starter interchangeable. The confirmed unit uses an 11T module-3 pinion, two Ø13.5 mounting holes, Ø105 locating diameter and the specified terminal arrangement.

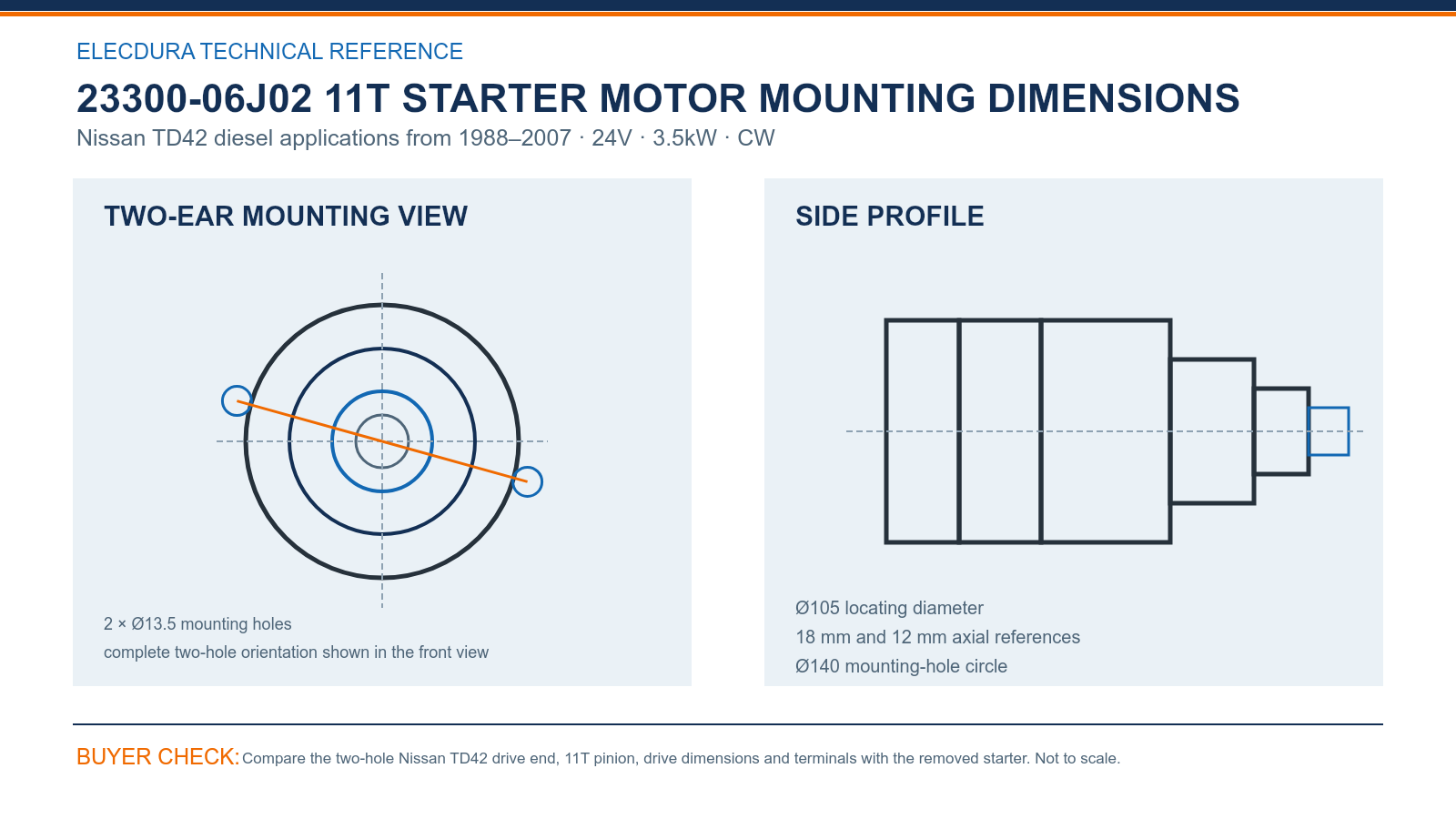

23300-06J02 Starter Drawing for B2B Two-Hole Verification

Use 24V, 3.5kW, 11T, module 3 and clockwise rotation as one stable product description. This distinguishes the correct electrical output and drive from another Nissan starter that may share a familiar S25 body or partial reference.

23300-06J02 Nissan TD42 Starter Drawing for Engine Buyers — compare the drawing with the removed starter before placing a volume order.

The drive end uses two Ø13.5 holes on an Ø140 mounting circle, an Ø105 locating diameter, and 18 mm and 12 mm axial references. Compare both ear positions from a square front image and check terminal clearance in the vehicle.

23300-06J02 Starter Motor OE Checks for Nissan Buyers

23300-06J02, 23300-06J01, 23300-06J03, S25-158 and related replacement numbers support cross-system searches. Retain the exact TD42 vehicle and confirmed two-hole geometry beside the selected number, particularly when older labels are worn or incomplete.

Distributors can keep the confirmed product as a TD42 stock line while recording demand by vehicle and customer. A dated application history and accepted image set make later orders safer than relying only on the broad 1988–2007 engine range.

23300-06J02 Starter Motor Stock Planning for TD42 Service

Inspect the first lot for eleven pinion teeth, both mounting ears, Ø105 register, cable studs and label accuracy. For long-term shelf stock, use terminal covers, moisture-resistant packing and a carton description that states the two-hole TD42 configuration.

The Elecdura production video introduces starter assembly and electrical testing for B2B orders. Nissan distributors can use it to discuss inspection and packing while 23300-06J02 remains tied to the exact TD42 vehicle record, output and two-hole drive end.

23300-06J02 Starter Motor FAQs for Nissan TD42 Buyers

Which Nissan vehicle details should accompany a TD42 request?

Provide the Nissan vehicle model and chassis, TD42 engine details, year or build information, every readable starter marking and the current service need. Add square two-hole face, pinion and terminal photographs. This ties 23300-06J02 to a real installation and creates a dependable record across the long 1988–2007 application period.

How should S25-158 support a 23300-06J02 product search?

S25-158 is a useful aftermarket route to the same search family as 23300-06J02. After locating the candidate, confirm the TD42 vehicle, 24V 3.5kW 11T module-3 specification, two-hole Ø140 face and terminal side. The S25 number supports discovery, while the complete application and geometry support the purchase.

Why should 3.5kW and the 11T module-3 drive stay together?

The 3.5kW value identifies cranking output, while 11T and module 3 define the pinion interface. A Nissan starter can match one part of this set and still be wrong for the confirmed TD42 installation. Keep all values with clockwise rotation on the order, stock label and first-lot inspection record.

Which measurements define the two-hole Nissan mounting face?

Measure two Ø13.5 mounting holes on the Ø140 circle, verify the Ø105 locating diameter and compare the 18 mm and 12 mm axial references. Use a square front photograph to show both ears without distortion and add a terminal-side view. These checks separate the compact face from similar S25 starter bodies.

What helps when an older TD42 starter label is unreadable?

Use the Nissan vehicle and chassis record, TD42 engine plate, square mounting-face view, both body sides, pinion and terminal orientation. Compare measurable geometry even when the nameplate cannot be read. Together these details can reconstruct a reliable purchasing identity without inventing an OE number from an incomplete or corroded label.

How should distributors label long-term TD42 shelf stock?

Mark the carton 23300-06J02, Nissan TD42, 24V 3.5kW, 11T module 3 and two-hole Ø140 face. Add the supported customer or vehicle group and protect terminals from corrosion. Review moisture protection and carton condition periodically because low-turnover legacy stock may remain stored for long periods before a workshop request.

Which vehicle checks can prevent an unnecessary starter replacement?

Load-test the 24V batteries, measure positive and ground voltage drop while cranking, inspect cable connections and confirm the solenoid command. Check ring-gear condition and ensure the TD42 engine turns freely. Recording these results helps the distributor distinguish a starter fault from weak batteries, poor grounds, damaged wiring or mechanical resistance.

What details support 23300-06J02 wholesale pricing?

Send the Nissan vehicle, chassis and TD42 engine details, every 23300-06J02 or S25 marking, straight two-hole face, pinion and terminal photographs, quantity, forecast, packing preference and destination. State whether the request is a trial, normal shelf stock or urgent replacement. Elecdura can then confirm the configuration and return price, lead time and delivery terms.

Request 23300-06J02 Starter Motor Wholesale Pricing

Email the Nissan vehicle model, chassis and TD42 engine details, every readable 23300-06J02 or S25 marking, straight two-hole face, pinion and terminal photographs, quantity, packing preference and destination to info@elecdurauto.com. Elecdura will compare the unit and return wholesale pricing and lead time.
