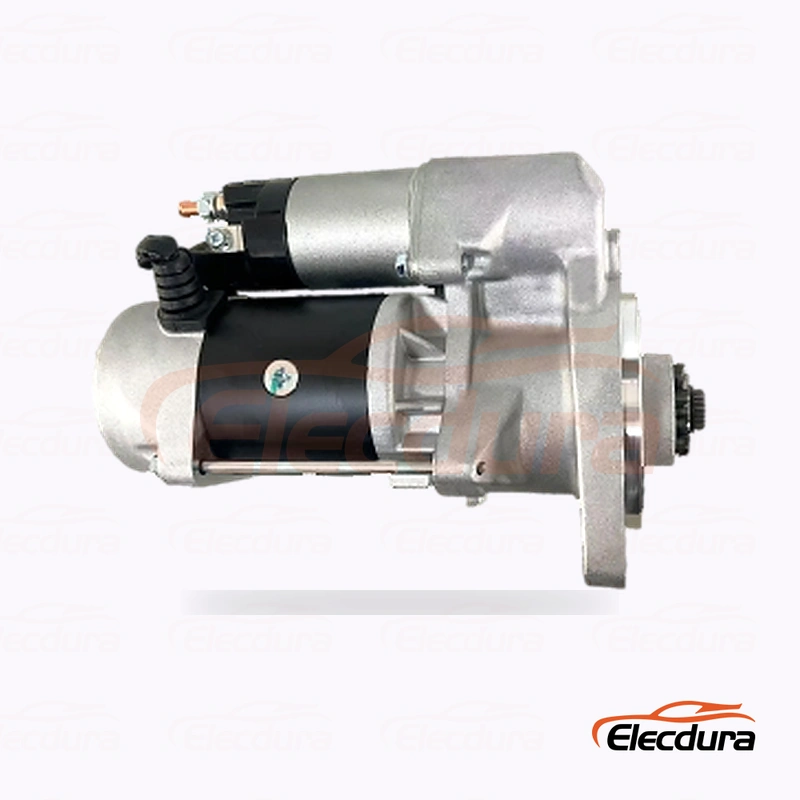

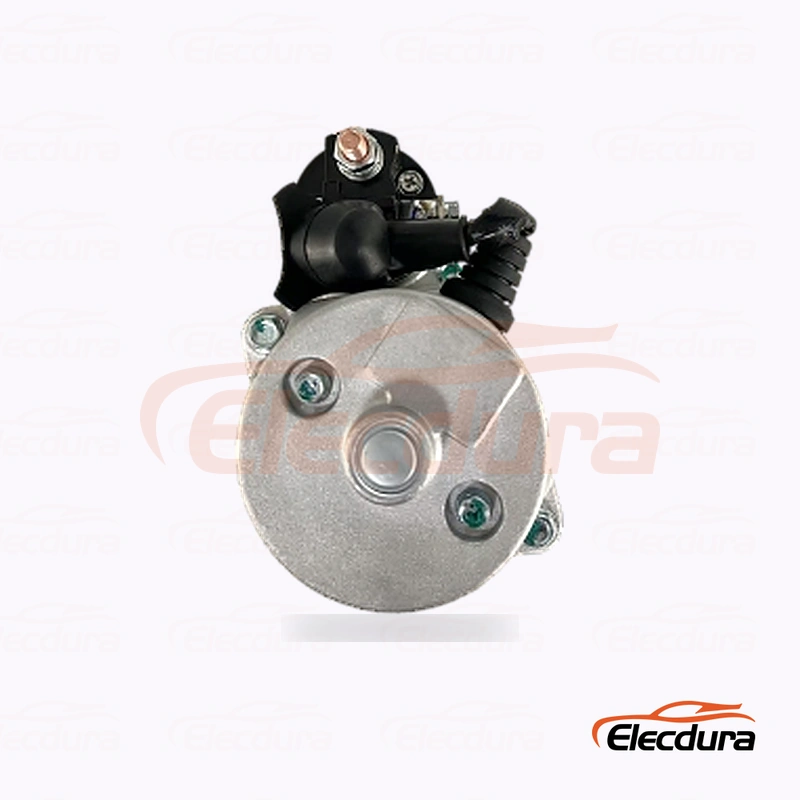

28100-78060 Hino J05C J07C J08C Starter Motor 24V 4.5kW 11T

28100-78060 Starter Motor Wholesale Fitment Overview for Distributor Sourcing

This heavy-duty Hino starter serves several engine and chassis combinations. Engine family, voltage and tooth count should be tied to the vehicle record because J05C, J07C and J08C fleets can include more than one starter across model years.

For this sourcing record, 24V, 4.5kW and 11 teeth are the controlled ordering specification. Any 5.0kW offer must be treated as a separate configuration and approved against the removed rating plate, mounting geometry and signed sample before purchase.

28100-78060 Starter Motor B2B Production and Test Video for Bulk Procurement

This video introduces Elecdura starter-motor production and supply capabilities. Use the verified 28100-78060 / 0355-502-0012 specification and fitment controls on this page for product approval.

28100-78060 Starter Motor Distributor Specifications for Wholesale Supply

28100-78060 Starter Motor OE Cross-Reference Review for Aftermarket Buyers

The purchasing group covers 28100-78060, 28100-2624, 28100-2625, Sawafuji 0355-502-0012 and Lester 19956. Validate the 11-tooth 40.5 mm drive, flange dimensions and terminal arrangement instead of approving a substitute from a partial 28100 number.

28100-78060 Starter Motor Bulk Fitment Approval for Fleet Procurement

A fleet record should state the Hino chassis, J05C, J07C or J08C engine, production year and voltage system. Compare the removed starter's mounting face, support bracket, pinion offset and cable clearance. On Toyota Dyna or Toyoace applications, retain the full chassis and engine combination because the vehicle name alone is too broad.

28100-78060 Starter Motor Receiving Inspection for Distributor Stock

For a 24V heavy-duty lot, verify rating plates, 11-tooth pinions, nose castings, terminal studs and insulation on samples from several cartons. Check the approximately 40.5 mm gear and lot code, then document bench-test or no-load results under the agreed inspection plan before stock is distributed to fleet customers.

28100-78060 Starter Motor MOQ and Private-Label Supply for B2B Orders

Hino distributors can request neutral packaging, controlled private-label review and lot-level receiving documents. The heavier 4.5kW unit needs internal support that protects the drive end and B+ terminal during long-distance freight while preserving the 28100-78060 identity.

28100-78060 Starter Motor Distributor FAQ for Bulk Procurement

Why is 4.5kW used for the 28100-78060 ordering specification?

The controlled 28100-78060 / 0355-502-0012 configuration is 24V, 4.5kW and 11 teeth for the stated Hino J05C, J07C and J08C applications. A 5.0kW offer is not automatically interchangeable and requires separate technical approval. Compare the removed rating plate, mounting geometry, drive and terminals, then approve a physical sample before volume release.

Which Hino records are required for a 28100-78060 fitment check?

Provide the chassis or vehicle series, production year, J05C, J07C or J08C engine code and the complete label from the removed starter. State whether the unit is installed in a Hino Dutro or Ranger, or in a Toyota Dyna or Toyoace application. Add drive-end, mounting-face and terminal photographs so the supplier can resolve chassis-specific differences before quoting.

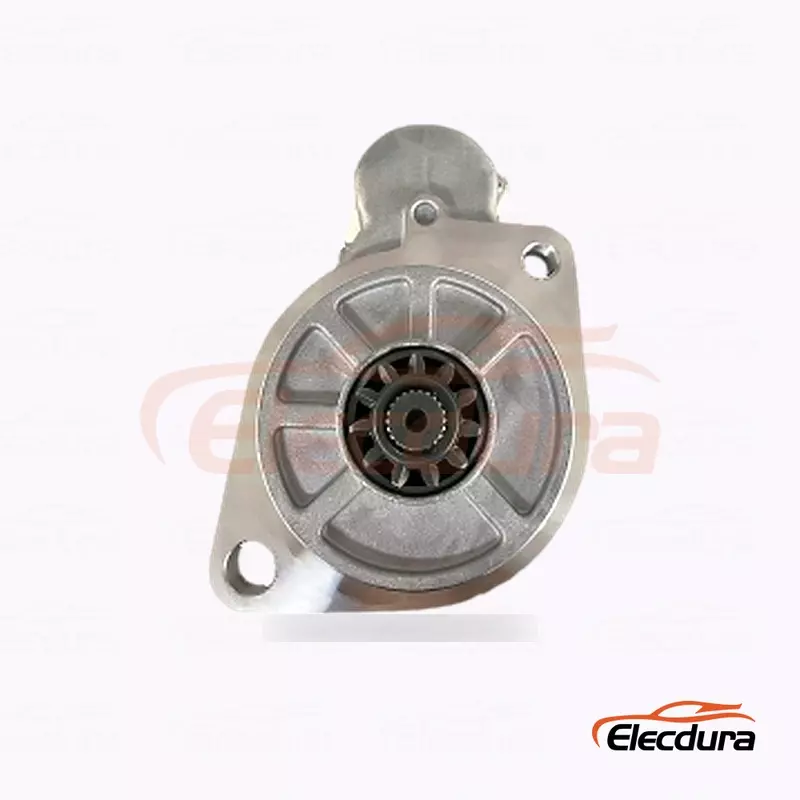

How should the 11T pinion be measured on this Hino starter?

Count all eleven teeth and measure the gear outside diameter near 40.5 mm, shaft diameter, rest position and projected engagement depth. Compare the nose opening and locating features with the approved starter. Heavy-duty ring gears are expensive, so an 11-tooth count without offset and diameter checks is not enough. Retain the measurements in the fleet approval file for repeat orders.

Can a partial 28100 number be used to approve a replacement?

No. Toyota and Hino references beginning with 28100 cover many unrelated starters. Use the complete 28100-78060 number and cross-check 28100-2624, 28100-2625, 0355-502-0012 or Lester 19956 when available. Then verify 24V, 4.5kW, 11T, mounting face, pinion position and terminals. A partial reference is only a search lead, not an order specification.

What electrical checks should precede a Hino starter warranty claim?

Test both batteries as a 24V system, record cranking voltage, and measure voltage drop across the positive and ground cables under load. Confirm the start relay signal, engine mechanical condition and ring gear. Photograph the installed cable routing and removed unit. A weak battery pair or high-resistance connection can create slow cranking that resembles a defective 28100-78060 and should be ruled out first.

How should a distributor inspect a 28100-78060 shipment?

Sample units from multiple cartons and compare the complete label, 24V 4.5kW rating, 11-tooth drive, 40.5 mm gear, mounting face, support points, terminal studs and protective caps with the signed sample. Record lot and carton numbers with pass, fail and hold quantities. Keep any mixed rating or casting variation separate until it is technically reviewed.

What packaging is appropriate for a 4.5kW heavy-duty starter?

The starter should be immobilized with strong internal support so its mass cannot damage the nose housing, pinion or B+ terminal during vibration and stacking. Use corrosion and moisture protection appropriate to the route, and keep reference, quantity and lot code visible. For private-label supply, approve the carton strength and barcode together with the technical label rather than treating artwork as the only packaging requirement.

How should fleets manage samples and repeat purchases for Hino J08C units?

Mark the approved sample with 28100-78060, the exact chassis-engine application, supplier, inspection date and drawing or photo revision. Reference that record on repeat purchase orders. If the casting, terminal layout, pinion, supplier or electrical rating changes, hold the new lot and issue a revised approval. This prevents a busy fleet warehouse from mixing similar heavy-duty starters with different installation geometry.

What information produces an actionable 28100-78060 wholesale RFQ?

Send the full OE and Sawafuji references, Hino chassis and engine code, 24V confirmation, removed-unit photos, target quantity, delivery destination and required date. State whether samples, bench-test reports, private labels or special export packing are needed. A complete RFQ lets the supplier quote the correct 4.5kW 11T unit and plan the receiving documents for a fleet or distributor order.

Request a B2B Quote for 28100-78060 Starter Motors

Send the Hino chassis, J05C/J07C/J08C engine, complete old-unit references, voltage record, photos, quantity and destination. Elecdura will review the 24V 4.5kW 11T configuration for bulk quotation.
