ME095313 Mitsubishi 6M70 Starter Motor Wholesale

ME095313 Mitsubishi 6M70 Starter Motor Wholesale

A 6M70 fleet enquiry should identify ME095313, the truck model or chassis group and the current starter condition. Those details help an importer determine whether the request is a planned high-output stock line, a sample comparison or an urgent replacement for an immobilized truck.

M009T81671, M9T81672 and M9T81771 widen the reference search, yet the eleven-tooth module-3.5 drive and two-ear flange remain essential. Confirm the long axial dimension and terminal clearance before substituting another large Mitsubishi-style starter from the same general power class.

ME095313 Starter Motor Dimensions for Heavy Truck Buyers

ME095313 combines 24V, 7.0kW, 11T, module 3.5 and clockwise rotation. The module value deserves particular attention because tooth count and output alone do not describe how the pinion engages the supported 6M70 flywheel arrangement.

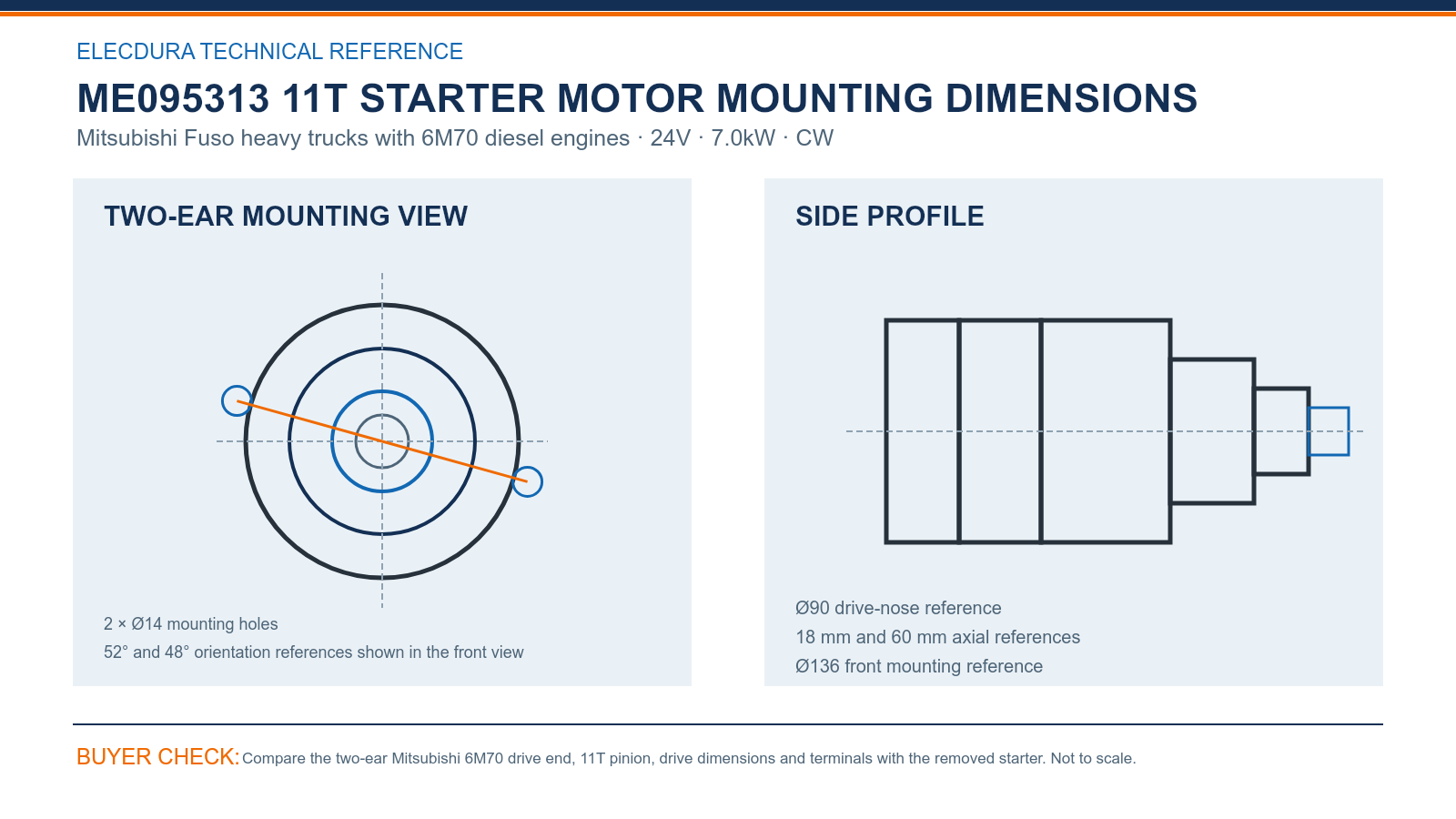

The drawing shows two Ø14 holes, the Ø136 front reference, Ø90 drive-nose area and 18 mm and 60 mm axial dimensions. Compare the 52° and 48° orientation with a square drive-end photograph, then review the cable side for installation clearance.

ME095313 Starter Motor Cross-Reference for Fuso Fleets

ME095313, ME164413, ME180048, M009T81671, M009T81672 and M009T81771 are the principal search references. Attach the Fuso 6M70 identity and complete 7.0kW eleven-tooth definition so the cross-reference group remains useful to both sales and receiving teams.

Heavy-truck distributors can allocate this starter by fleet account, chassis group and breakdown risk. Holding the accepted two-ear and terminal views with each account allows repeat orders to follow a known physical baseline even when several high-output Mitsubishi units share storage space.

ME095313 Starter Motor Supply Support for Importers

Protect the long drive end, both mounting ears, solenoid and studs with rigid inner supports. Receiving should sample pinion count, module-related gear form, flange dimensions and electrical performance before the lot is split between emergency reserve and ordinary branch stock.

The Elecdura production video covers starter assembly and electrical testing for wholesale programs. Fuso buyers can use it to assess capacity, test documentation and packing while ME095313 selection continues to depend on the 6M70 truck, module-3.5 drive and two-ear geometry.

ME095313 Starter Motor FAQs for 6M70 Truck Buyers

What defines an ME095313 enquiry for a 6M70 fleet?

Combine ME095313 with the Fuso truck model or chassis group, 6M70 engine details, current starter markings and service priority. Add a square two-ear view, pinion side view and terminal photograph. This information defines the required high-output unit and gives the fleet distributor a usable baseline for repeat purchases.

Why is module 3.5 important on this 11T drive?

Eleven teeth gives the pinion count, but module 3.5 defines the tooth size and gear form. Another 11T starter may not engage the same flywheel correctly. Carry both values with 7.0kW and clockwise rotation, then compare the old pinion directly before stocking the ME095313 replacement.

How should M9T81671 and M9T81771 support sourcing?

M9T81671, M9T81672 and M9T81771 help suppliers locate the same procurement family as ME095313, ME164413 and ME180048. They should remain search aids, not standalone selection criteria. Preserve 6M70, 7.0kW, eleven teeth, module 3.5 and the two-ear geometry with every offered cross reference, quotation and purchase line.

Which dimension helps identify the long 6M70 drive end?

The 60 mm axial reference is particularly useful when comparing the extended drive end, together with the 18 mm value and Ø90 drive-nose area. Measure from the same mounting-face datum shown in the drawing. A straight side photograph helps ensure the supplier and buyer are discussing the same endpoints.

What makes a useful ME095313 flange photograph?

Position the camera square to the flange so both Ø14 holes and the Ø136 front reference are visible without perspective distortion. Add a scale and mark the 52° and 48° orientation if needed. A second side image should show the 60 mm axial span and the pinion clearly.

How should high-output stock be allocated across depots?

Divide ME095313 stock by depot, chassis group, normal consumption and breakdown exposure. Keep the accepted flange and terminal photographs with the inventory entry, and label reserve cartons with 7.0kW, 11T and module 3.5. This supports fast emergency fleet dispatch while preserving the exact high-output configuration.

What protects and verifies ME095313 during delivery?

Rigid inner supports should protect both ears, the extended drive nose, solenoid and terminal studs from impact. On receipt, sample the reference, pinion count, flange and electrical result from several cartons. Note any crushed or wet packaging before the lot is accepted into heavy-truck inventory.

Which details support wholesale ME095313 supply terms?

Provide the Fuso model or chassis, 6M70 engine details, all ME095313 and M9T markings, straight drive-end, pinion and cable-side photographs, quantity, annual demand, packing preference and destination. Elecdura can then compare the module-3.5 version and offer practical wholesale price, lead time, packing and shipping terms.

Request ME095313 Starter Motor Wholesale Pricing

Send the Fuso truck model or chassis, 6M70 engine details, all ME095313 or M9T markings, straight drive-end, pinion and terminal photographs, quantity and destination to info@elecdurauto.com. Elecdura will review the high-output configuration and provide wholesale pricing, lead time and delivery options.
