S515-18-400 Mazda T3500 12T Starter Motor Wholesale

S515-18-400 Starter Motor Buying for Mazda T3500 Distributors

T-series truck inquiries may arrive with a Mazda number, a Mitsubishi starter mark or only the T3500 model. The S515-18-400 offer is the specified 12-tooth, counterclockwise unit, so buyers should not accept a product selected only from the M2T57671 body shape.

1. Obtain the complete old label and truck details.
2. Count the pinion teeth after cleaning the drive.
3. Compare the triangular flange and rear terminals before pricing the order.

This approach gives commercial-vehicle distributors a clearly identified unit while retaining the useful Mazda and Mitsubishi reference history.

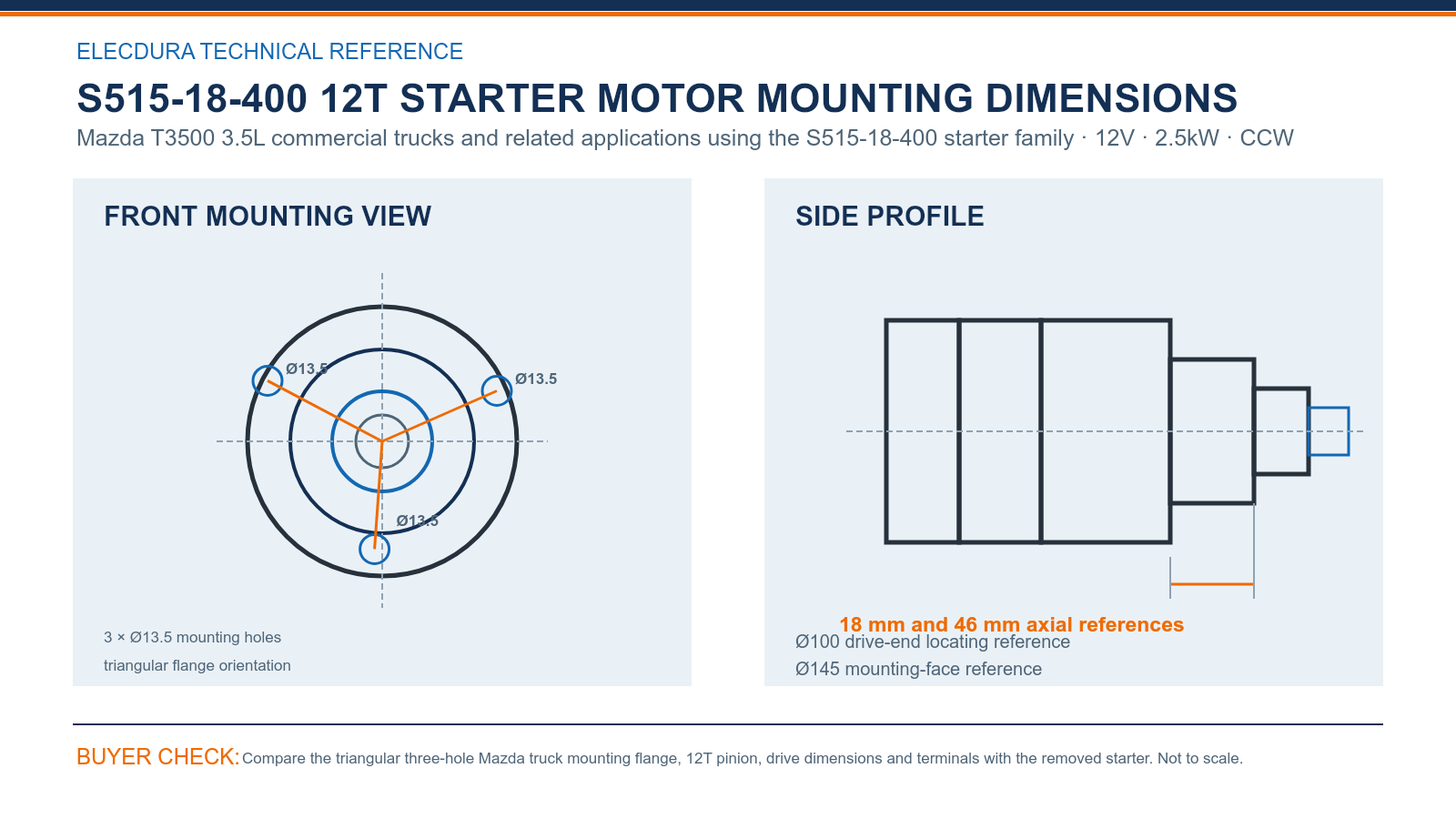

S515-18-400 Starter Motor Fitment Drawing for Mazda B2B Buyers

The S515-18-400 mounting flange uses three Ø13.5 holes on an Ø145 face reference, with an Ø100 drive-end locator and 18 mm and 46 mm axial references. Those points help a truck rebuilder compare the drive-end casting even when the replacement motor body looks familiar.

Confirm the 12-tooth pinion and counterclockwise rotation with the same removed unit. A square face photograph, side measurement and terminal view give purchasing and workshop teams a consistent reference for repeat Mazda T3500 orders.

S515-18-400 Starter Motor Cross-Reference Review for B2B Orders

Common purchasing leads include S515-18-400, S515-18-400C, M002T57671, M002T57671A and M002T57672. Some market offers group several tooth counts under the same replacement family, so the specified 12T drive must remain visible on the inquiry and purchase order.

Use the T3500 3.5L application, 12V 2.5kW rating, CCW rotation and three Ø13.5 holes together. If an old unit shows another pinion or output, photograph it and request a separate quotation rather than changing this product identity.

S515-18-400 Starter Motor Wholesale Programs for Truck Rebuilders

Truck rebuilders can use one identified T3500 unit to confirm the flange, drive position, terminal reach and cranking behavior before ordering workshop stock. Elecdura can provide neutral packing and review private-label cartons, barcodes and destination marks for established distributor programs.

• Protect the exposed pinion during freight.
• Show 12T and CCW on warehouse labels.
• Keep M002T57671 variants separated when their physical checks differ.

The video presents Elecdura starter assembly and electrical testing. Send the T3500 details, complete old number, pinion and flange photographs, quantity and delivery market for a precise commercial response.

S515-18-400 Starter Motor Wholesale FAQ

Why must a T3500 buyer confirm 12 teeth for S515-18-400?

M2T57671 replacement offers can be marketed across more than one pinion version. The product specified here uses 12 teeth and module 2.54. Clean and count the old pinion, compare its resting position and retain a photograph with the truck details. This prevents a visually similar unit with a different tooth count entering the same rebuild order.

How should counterclockwise rotation be confirmed on this Mazda starter?

Use the drive-end viewing convention and compare the old label or trusted service information with the required CCW specification. Do not infer rotation from the solenoid location. During the first installation, listen for clean engagement and release. If the old unit indicates the opposite rotation, stop and submit it as another product request.

Which flange dimensions matter most for S515-18-400?

Check three Ø13.5 mounting holes, the Ø145 face, Ø100 locating reference and the 18 mm and 46 mm axial points. Measure the removed starter rather than scaling a photograph. The combined flange and drive-depth checks are more useful than overall motor length when a rebuilder is separating neighboring Mazda T-series configurations.

What T3500 details should accompany an S515-18-400 inquiry?

Provide the truck model, year or chassis details, 3.5L engine information and every character on the old label. Add straight photographs of the pinion, flange, side profile and terminals. These details let Elecdura compare the specified 12V 2.5kW 12T CCW unit with the actual commercial truck before quoting volume.

What should a workshop verify on the first T3500 installation?

Ensure the Ø100 locating surface seats without force, all three bolts align and cables reach the correct terminals. Confirm the 12-tooth pinion engages and releases normally, then note cranking voltage and sound. Save the truck identity and installation photographs so later S515-18-400 deliveries can be checked against the same practical points.

How can a truck rebuilder manage mixed M2T57671 demand?

Create separate lines by complete OE, tooth count, output and mounting measurements instead of grouping every unit under M2T57671. Mark this line as S515-18-400, 12T, 2.5kW and CCW. Keeping a face photograph and old label with each workshop bin reduces selection mistakes during busy engine or vehicle rebuilds.

What packing checks protect the exposed S515-18-400 drive?

Confirm that the pinion and nose are protected from impact, terminals have caps and the starter cannot move inside the carton. Sample cartons across the shipment and count 12 teeth before release. A damaged drive or bent terminal can create installation problems even when the correct OE and flange were supplied.

What is needed for an accurate S515-18-400 distributor price?

Send the complete Mazda or Mitsubishi number, T3500 and engine details, old-unit photographs, confirmed 12T pinion, quantity, destination, required date and packaging preference. Elecdura can then state the 12V 2.5kW CCW configuration, MOQ, normal lead time, warranty and any private-label requirements without blending another T-series version.

Request a S515-18-400 Starter Motor Wholesale Quote

Send S515-18-400 or the full Mitsubishi reference, Mazda T3500 3.5L details, old-unit label, pinion, flange and terminal photographs, quantity, destination and packing request. Elecdura will quote the 12V 2.5kW 12T CCW starter with practical supply terms.

Where a fleet contains T-series trucks with different pinion counts, list each old-unit number and quantity separately so the warehouse receives clearly identified cartons.
