R2S Smaller Turbo Core for MAN D0836 280 HP Bi-Turbo

R2S Smaller 10009880107 Turbo Core Overview for Commercial Repair Buyers

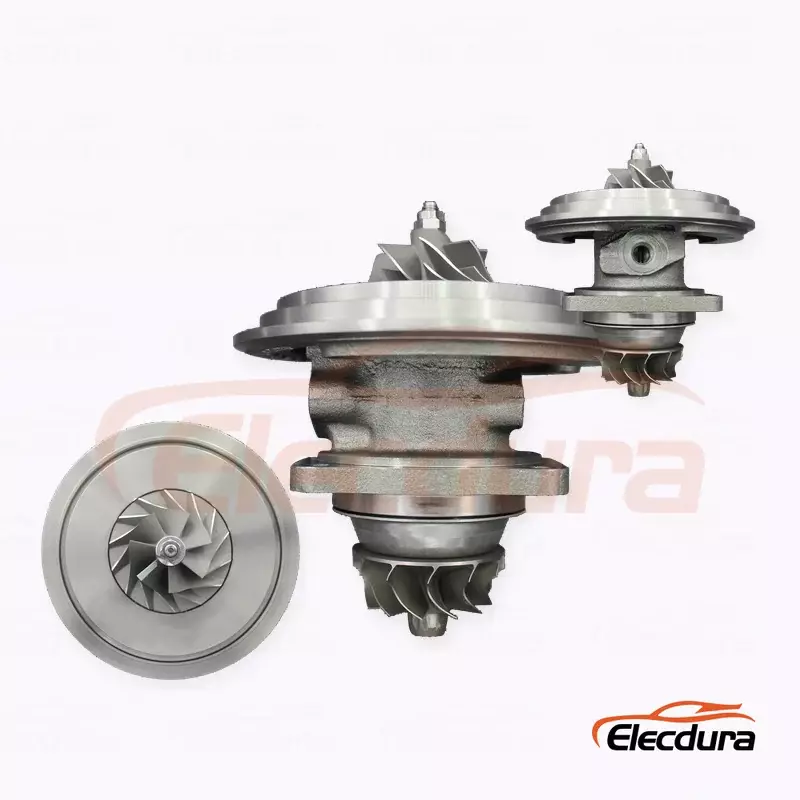

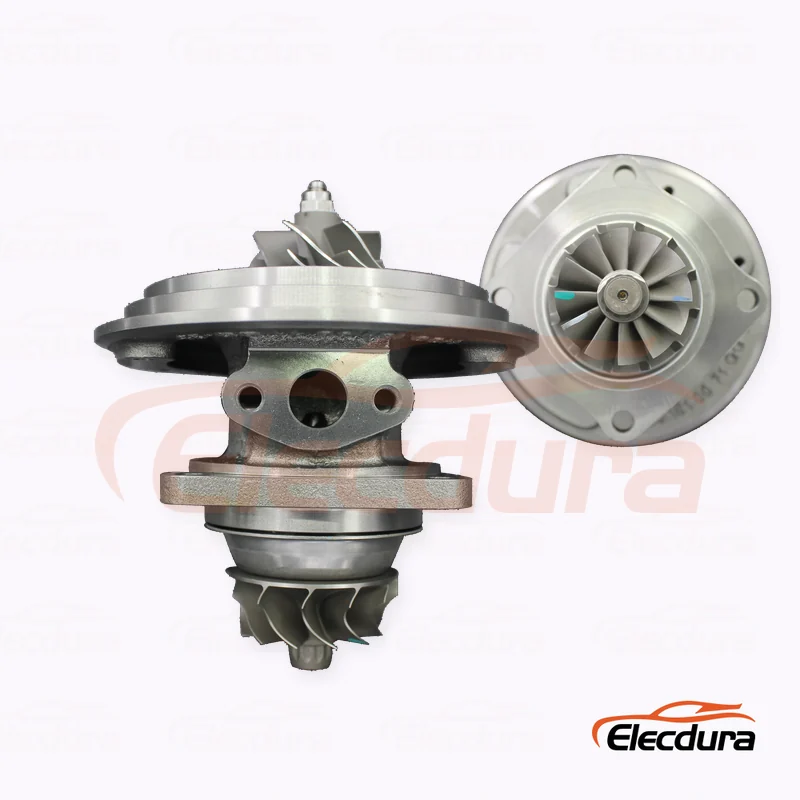

The smaller R2S cartridge for assembly 10009880107 serves MAN D0836 280 HP commercial vehicles, but shared OE 07W145703K and BorgWarner 61091017059 identify the complete system rather than one core. Repair buyers should confirm the smaller physical position, wheel measurements, housing orientation, and removed-unit photographs before ordering. Stock records should state D0836 six-cylinder and the K-suffix OE family, keeping the product apart from both the larger 0107 cartridge and the D0834 0106 two-stage system.

R2S Smaller 10009880107 / 07W145703K Turbo Core Specifications for Wholesale Buyers

10009880107 / 07W145703K Related Reference Numbers for Turbo Core Matching

R2S Smaller 10009880107 Matching Information for Distributor Sourcing

MAN D0836 R2S R2S Smaller Application Reference for Repair Programs

R2S Smaller 10009880107 CHRA Cartridge Value for Aftermarket Replacement Supply

A smaller-stage cartridge gives remanufacturers a focused repair option when the larger turbo and controls remain serviceable.

Three-way separation by engine family and cartridge position protects warehouse teams from near-number mistakes.

System diagnosis supports reliable repair under demanding truck and bus operating cycles.

Elecdurauto supplies the smaller core after position and dimensional verification.

R2S Smaller 10009880107 / 07W145703K Turbo Core FAQ for Wholesale and Repair Buyers

What should be photographed before removing the smaller D0836 cartridge?

Workshops should photograph the complete assembly label, both turbo positions, connection layout, actuator or bypass hardware, and the smaller housing from several angles. The cartridge should then be measured after dismantling. The images preserve position evidence that may be lost once both stages are separated. For assembly 10009880107, such documentation is more useful than an OE-only request because 07W145703K applies to the whole R2S system.

Why should 10009900107 not be treated as an individual smaller-core number?

The number is associated with the complete D0836 R2S turbo system and can appear on records covering both stages. It confirms the assembly family but does not state which cartridge is required. Buyers should pair it with the words smaller unit, removed-core dimensions, and photographs. A warehouse label that displays only 10009900107 can lead staff to select either stage, creating a preventable position error.

How can wrong-stage ordering affect a D0836 fleet repair?

The incorrect cartridge may not fit the intended housing, and differences in wheel size or airflow duty can make substitution technically unsuitable. The truck or bus remains immobilized while the error is investigated, returned, and replaced. For a high-utilization fleet, the administrative delay can exceed the part cost. Position-controlled quotation, picking, and packing checks should therefore be part of every smaller R2S order.

Which companion-stage findings require broader R2S repair?

Wheel damage, excessive shaft play, oil leakage, debris, sticking bypass components, or abnormal control response in the larger stage can justify repair beyond the smaller cartridge. Shared system contamination should also be considered. If both stages are worn or the housings cannot be identified, a complete assembly may be more reliable. Workshops should base the decision on inspection rather than assuming one visible failure is the only damaged component.

What oil and air checks protect the smaller D0836 core?

Both turbo stages need clean oil at correct pressure, unrestricted drains, proper crankcase ventilation, clean air filtration, and an uncontaminated intercooler. The smaller wheel can be especially vulnerable to debris left in the charge-air route. Repairers should prime the core and verify control operation before applying load. Installation records should include line preparation and cleaning evidence because a two-stage system can transfer contamination between components.

How can distributors support recurring D0836 repair-program demand?

A recurring program should use separate larger and smaller SKUs, mandatory position fields, assembly and OE references, dimension sheets, and photographs from confirmed fleet units. Demand can then be tracked by stage and chassis rather than purchasing equal quantities without evidence. Mixed procurement remains possible, but each line item should preserve its position identity. The process helps repair networks reduce wrong-side returns while maintaining useful availability.
